Your Complete Guide to Relays and Their Switching Role

Have you ever wanted your 5V Arduino or Raspberry Pi to switch a 120V home appliance? You cannot connect them directly. You need a special component to make that switch. Your project is part of a huge trend, as the market for these microcontrollers in home automation is growing fast.

The solution is a relay. Let's define relay:

A relay is an electrically controlled switch. The relay uses a small signal to control a large one. This relay is a safe switch. The relay switch circuit is a simple switch. A relay is a useful switch. The relay is a necessary switch. This electrical relay is a great switch. A relay is an important switch.

The key benefit of a relay is electrical isolation. This feature separates your low-voltage control circuit from the high-power load circuit. A micro-controller relay switching circuit is a common relay switch circuit. Many relays exist for projects. These relays include this relay and that relay. All relays are a type of switch. These relays help you control devices. These relays are essential. These relays are safe.

Key Takeaways

• A relay is an electrical switch. It uses a small signal to control a much larger electrical circuit. This keeps your low-power devices safe from high-power devices.

• Relays work using electromagnetism. A small current creates a magnetic field. This field moves a switch to turn a high-power circuit on or off.

• There are different types of relays. Electromechanical relays have moving parts and make a click. Solid-state relays have no moving parts and are silent. Choose the right relay for your project's needs.

• When choosing a relay, match its coil voltage to your control signal. Also, make sure its contact rating can handle the power of the device you want to switch. This ensures safety.

• Use a relay for high-voltage AC power. Use a transistor for fast switching in low-voltage DC circuits. Each has its best use.

Define Relay: How a Relay Switch Circuit Works

You now know a relay is a safe switch. But how does this small device handle so much power? Let's define relay mechanics more deeply. A relay is an electrically operated switch. It uses a small input signal to manage one or more powerful output circuits. This function makes relays essential for your projects. The magic behind most common relays is a simple, powerful force of physics.

The Electromagnetism Principle

The most common type of relay is an electromechanical relay. It uses the principle of electromagnetism to work. Inside this kind of relay, a small coil of wire wraps around an iron core. When you send a small electric current through this coil, it creates a magnetic field. This turns the iron core into a temporary magnet—an electromagnet.

Here is how the relay switch circuit operates:

1. You apply a small voltage (the control signal) to the relay's coil.

2. The coil generates a magnetic field, energizing the electromagnet.

3. This magnetic force pulls a tiny metal lever inside the relay, called an armature.

4. The armature's movement physically flips a switch, connecting or disconnecting the high-power circuit.

When you turn off the control signal, the magnetic field disappears. A small spring then pulls the armature back to its original position. This elegant process allows your low-power signal to safely control a high-power device. This is the foundation of how a relay switch circuit functions.

Understanding Relay Terminals: NO, NC, and COM

To use a relay, you must understand its connection points, or terminals. Most electromechanical relays have at least three terminals for the switch part of the circuit.

COM (Common): This is the terminal that the switch pivots on. You will typically connect your high-power device to this terminal.

NO (Normally Open): This terminal is disconnected from the Common terminal when the relay is off. When you energize the relay, the armature moves and connects the COM terminal to the NO terminal. This completes the circuit and turns your device on.

NC (Normally Closed): This terminal is connected to the Common terminal when the relay is off. When you energize the relay, the armature moves and disconnects the COM terminal from the NC terminal. This breaks the circuit and turns your device off.

The term "Normally" refers to the state of the relay when no power is applied to its coil. The relay switch circuit is in its resting state.

This setup gives you flexibility. You can design a relay switch circuit to turn something on or to turn something off when you activate the relay.

The Two-Circuit System: Control and Load

The most important concept to define relay safety is its two-circuit system. A relay contains two completely separate electrical circuits: the control circuit and the load circuit.

• The Control Circuit: This is the low-power side. It includes the coil that creates the electromagnet. Your Arduino's 5V signal connects here to tell the relay when to switch. This circuit uses a tiny amount of power.

• The Load Circuit: This is the high-power side. It includes the COM, NO, and NC contacts. This circuit is where you connect your 120V lamp or 12V motor. The switch inside the relay opens or closes this circuit.

These two circuits do not share any electrical connection. They are electrically isolated. The only thing connecting them is the magnetic field and the mechanical movement of the armature. This separation is the key benefit of all relays. It protects your delicate microcontroller from the dangerous high voltage of the load. Relay switching circuits use this principle to ensure safety. You can use a tiny 250 milliwatts of control power to switch a 240-watt appliance. This makes the relay an amazing bridge between two different electrical worlds, and it makes your relay switching circuits both powerful and safe.

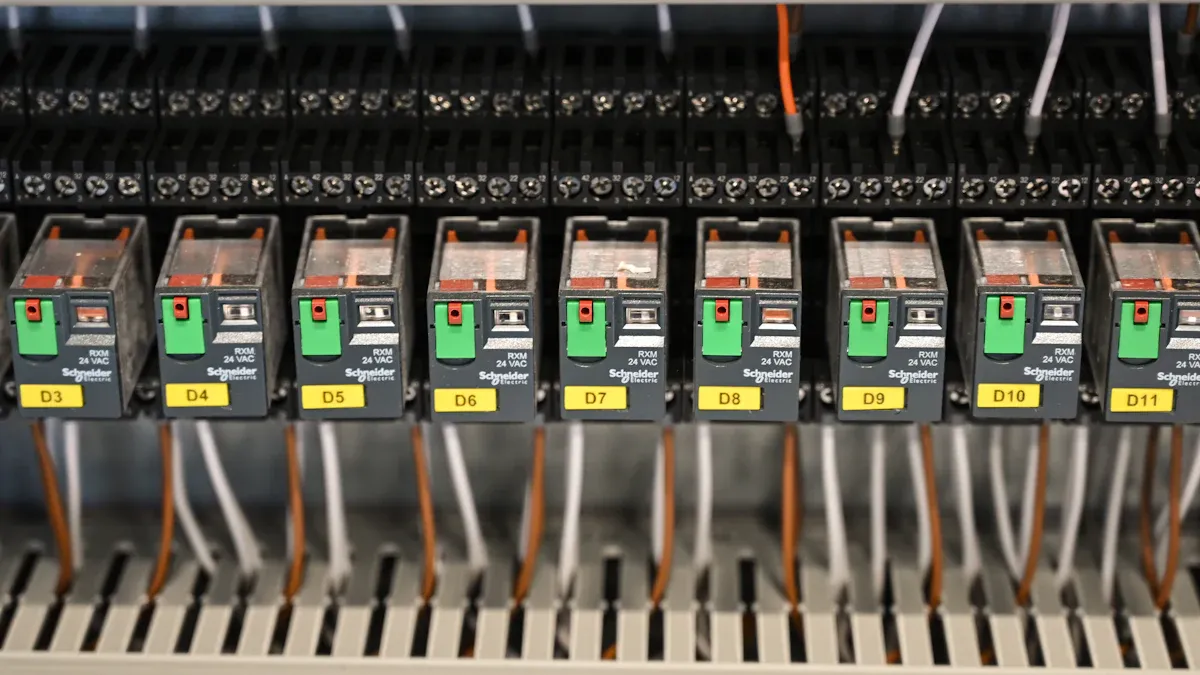

Exploring Different Types of Relays

You have learned how a basic relay works. Now, you can explore the different types of relays available for your projects. Each type of relay has unique features. Choosing the right relay depends on your specific needs. Let's look at the most common options.

Electromechanical Relays (EMRs)

Electromechanical relays are the classic workhorses you learned about earlier. These relays use a physical coil and a moving switch. When you power the coil, it creates a magnetic field. This field moves an armature to physically open or close a switch. You can often hear a distinct "click" sound when this relay operates.

Key Features of EMRs:

• They are robust and can handle both AC and DC loads.

• They provide complete electrical isolation.

• They have a limited lifespan, typically 100,000 to 500,000 operations.

Electromechanical relays are a great, low-cost choice for many applications. The simple construction of electromechanical relays makes them very reliable for general-purpose switching.

Solid-State Relays (SSRs)

Solid-State Relays (SSRs) are the modern, silent alternative to electromechanical relays. These advanced relays have no moving parts. Instead, they use semiconductor devices, like an optocoupler, to switch the load. A small input signal activates an internal LED. The light from the LED triggers the output switch.

This design makes the SSR a very fast and durable relay. Since there are no mechanical parts to wear out, these relays can last for millions of cycles. However, SSRs generate heat and may have a tiny leakage current when the switch is off. These relays are ideal for applications requiring frequent, silent switching.

Specialized Relays: Reed and Latching

You will also find specialized relays for unique tasks. Two interesting types are reed and latching relays.

• Reed Relay: This relay contains two tiny metal reeds sealed inside a glass tube. A magnetic field from an outer coil makes the reeds touch and complete a circuit. They are very fast and perfect for switching low-power signals.

• Latching Relay: This clever relay stays in its last position even after you remove power. It uses a permanent magnet or a mechanical lock to hold the switch. You only need a short pulse of power to change its state. This makes the latching relay very energy-efficient.

These specialized relays offer unique solutions for specific engineering challenges.

How to Choose the Right Relay

Choosing the correct relay is crucial for your project's success and safety. With many types of relays available, you need to know what to look for. You can narrow down your options by checking a few key specifications. This ensures your relay works correctly and safely in your circuit. Let's explore the most important factors for your applications.

Checking Coil Voltage

The first step is to match the relay's coil voltage to your control signal. It is critical that the relay module's input voltage corresponds to your microcontroller's output voltage for proper operation.

Tip: Your microcontroller, like an Arduino or Raspberry Pi, provides the control signal. If your Arduino outputs a 5V signal, you need a relay with a 5V coil. If you use a 3.3V microcontroller, you should choose a relay designed for a 3.3V trigger voltage.

Common coil voltages for relays used in electronics projects include:

• 3.3V DC

• 5V DC

• 12V DC

Using the wrong voltage can cause problems. A voltage that is too low may not be enough to energize the coil and activate the switch. A voltage that is too high can damage the relay's coil. Always check the datasheet for the relay to confirm its nominal coil voltage. This simple check ensures your control circuit can reliably operate the relay.

Analyzing Contact Rating

After you confirm the coil voltage, you must analyze the contact rating. This is the most important step for safety. The contacts are the part of the relay that handles the high-power load. Every relay has a maximum voltage and current it can safely switch.

You must choose a relay with contact ratings that exceed your load's requirements. For example, if you want to switch a lamp that uses 1A at 120V AC, you should select a relay rated for more than 1A and 120V AC. A relay with a rating like 10A @ 250VAC would be a safe choice.

⚠️ Safety Warning: Never exceed a relay's contact rating. Doing so can cause serious hazards.

• Arcing: Exceeding the voltage can create an electrical arc between the contacts, which can destroy the relay.

• Welding: Too much current can cause the contacts to heat up and weld together, leaving the switch stuck on.

• Overheating: A poor connection from damaged contacts can overheat, melt plastic parts, and create a fire risk.

The type of load also matters. Motors and transformers are "inductive" loads, which require a more robust relay than a simple resistive load like a heater. The relay datasheet specifies its capabilities for different applications. Always consult it to ensure the relay you choose can handle your specific circuit.

Common Relay Applications

Relays are essential components in countless projects and devices. Their ability to let a low-power circuit control a high-power one makes them incredibly versatile. Understanding common relay applications can help you see where you might use one.

Here are a few popular applications:

You might also consider a Solid-State Relay (SSR) for certain applications. For instance, if you need to switch a device on and off very frequently and silently, an SSR is an excellent choice. However, it's important to use them correctly. While some believe SSRs are good for high-frequency PWM control of heaters, this is not ideal. Heating systems are slow, so a better method is "power cycling," where the SSR turns the heater on and off over several seconds. This achieves the same control without the complexity and electrical noise of high-frequency switching.

From simple home projects to complex industrial systems, relays provide a safe and reliable way to switch power. These diverse applications show how a simple relay switch circuit can solve many control challenges. Choosing the right relay opens up a world of powerful and exciting project possibilities.

Relay Switching Circuits vs. Transistors

You know how to choose a relay. Now you need to decide if a relay is the right tool for your job. Sometimes, another component called a transistor might be a better choice. Both components can act as a switch, but they excel in different situations. Understanding their differences will help you build better relay switching circuits.

When to Use a Relay

You should use a relay when you need to switch high-voltage AC power. Think of controlling a 120V lamp or a coffee maker. A relay is the perfect and safe switch for these tasks. The main reason is electrical isolation.

A relay creates a physical air gap between your low-power control circuit and the high-power load circuit. This separation protects your sensitive microcontroller from dangerous voltages. This makes the relay an incredibly safe switch.

A relay is also a great all-around solution for many projects. Here are a few scenarios where a relay shines:

• Heavy DC Loads: A relay can handle large DC currents that would damage a small transistor.

• Simple Projects: For hobbyist panels where you switch something a few times a day, a low-cost electromechanical relay is a cost-effective choice.

• Multiple Circuits: Some relays have multiple contacts. This allows a single relay switch circuit to control several devices at once.

For any high-power application, the robust nature of a relay makes it the superior switch. The relay switch circuit provides a reliable way to manage a powerful circuit. These relay switching circuits are fundamental in automation.

When to Use a Transistor

You should use a transistor for high-speed switching in low-voltage DC circuits. Transistors have no moving parts, so they can switch on and off thousands of times per second. This makes them ideal for tasks that require rapid control.

A common use for a transistor is Pulse Width Modulation (PWM). You can use PWM to dim an LED or control the speed of a small DC motor. A relay is too slow for this kind of rapid switch action. A transistor-based switch circuit excels here.

Transistors are also much smaller than relays. You should choose a transistor when your project has limited space and does not need the total isolation a relay provides. For fast, compact, low-voltage DC applications, a transistor is the right switch. The relay switch circuit is not designed for this speed. Your choice between a relay and a transistor depends entirely on the needs of your specific circuit.

You now understand how to define relay technology. A relay is an essential switch. This relay acts as a safe bridge between your low-power control circuit and a high-power device circuit. The right relay or switch makes your project work. Your choice of relay depends on your circuit needs.

You can now confidently select the best switch. Choose electromechanical relays for robust AC/DC switching. Use solid-state relays for silent speed and a long lifespan. Pick a transistor for fast, low-voltage DC control. Your knowledge of each relay, switch, and circuit empowers your next electronics project. This relay is a great switch. These relays are a useful switch. These relays are a necessary switch. These relays are an important switch.

FAQ

Why does my relay make a clicking sound?

You hear a click because your electromechanical relay has moving parts. The sound is the internal switch of the relay moving. This physical movement is a normal function for this type of relay. A clicking relay is a working relay. This relay is a mechanical relay.

Can I use a DC relay for an AC circuit?

⚠️ Important: You should not use a DC relay for an AC circuit. A DC relay is a relay designed for a DC circuit. An AC circuit can damage the DC relay. Always match your relay type to your circuit type. This ensures your relay and circuit operate safely.

How do I perform testing a relay?

You can perform testing a relay easily. First, apply the correct voltage to the relay coil. You should hear the relay click. Then, use a multimeter to check for continuity across the COM and NO terminals of the relay. This test confirms your relay works. This relay is a good relay.

Why does my solid-state relay get hot?

A solid-state relay (SSR) creates some heat during operation. This relay is not a perfect switch and has internal resistance. This resistance in the relay turns some electricity into heat. A very hot relay might need a heat sink. This is a normal trait for this relay.
