Why Every Modern Electrical System Needs a Step Down Transformer
A step down transformer plays a vital role in every modern electrical system. A step down transformer lowers high voltage from power lines to levels that homes and businesses can safely use. Without a step down transformer, electricity from the grid would damage most devices. A step down transformer ensures that electricity remains safe and efficient for daily use. Every home, factory, and office depends on a step down transformer to convert power into usable energy. A step down transformer protects devices and helps prevent electrical hazards. Reliable voltage control from a step down transformer keeps electrical systems running smoothly.
Key Takeaways
Step-down transformers lower high voltage to safe levels, protecting people and devices from electrical hazards.
They ensure electrical systems run efficiently by reducing energy loss and stabilizing voltage for homes and industries.
Using the right transformer prevents damage to sensitive electronics and helps maintain reliable power supply.
Step-down transformers are essential in many places, from neighborhood power lines to household appliances and industrial machines.
Regular maintenance and choosing high-quality transformers improve safety, save money, and support long-term energy needs.
Step Down Transformer Basics
What Is a Step-Down Transformer
A step-down transformer is a special type of power transformer that reduces high voltage to a lower, safer level. This device uses electromagnetic induction to transfer energy from one circuit to another without a direct electrical connection. The main parts of a step-down transformer include a laminated steel core and two sets of wire coils called windings. The primary winding connects to the input voltage, while the secondary winding delivers the reduced voltage to the load.
A step-down transformer lowers the voltage by having fewer turns in the secondary coil than in the primary coil.
The transformer uses a magnetic core to guide the magnetic flux between the coils.
Copper or aluminum wires make up the windings, which help carry electricity efficiently.
The device protects electrical equipment by preventing overvoltage and making power distribution safe.
Note: Step-down transformers are essential for homes, businesses, and industries. They allow electrical systems to use electricity safely and efficiently.
How a Step Down Transformer Works
A step down transformer operates on the principle of electromagnetic induction. When alternating current flows through the primary winding, it creates a changing magnetic field in the core. This magnetic field induces a voltage in the secondary winding. Because the secondary coil has fewer turns, the voltage drops to a lower level.
The voltage ratio between the primary and secondary windings depends on the number of turns in each coil. For example, if the primary has ten times more turns than the secondary, the output voltage will be ten times lower.
As the voltage decreases, the current in the secondary winding increases. This balance keeps the total power nearly the same, following the law of energy conservation.
Power transformers like these help deliver electricity over long distances by stepping down the voltage at the point of use.
The core, made of laminated iron, reduces energy loss and improves efficiency.
Power transformers use thicker wire in the secondary winding to handle the higher current that results from the lower voltage.
Transformers play a key role in modern electrical systems. They make sure that power reaches homes and businesses at the right voltage. Without step-down transformers, most devices would not work safely or efficiently.
Benefits of Step-Down Transformers
Electrical Safety
Step-down transformers play a key role in making electrical systems safe for everyone. High-voltage power travels long distances from power plants to cities and towns. When this power reaches homes, businesses, or factories, it is too strong for most equipment. Step-down transformers lower the voltage to a safer level. This process protects people from electric shocks and prevents fires.
Step-down transformers convert high-voltage electricity to lower, safer voltages for household appliances and industrial machinery.
They guard against overvoltage damage by ensuring proper voltage delivery, enabling safe and reliable power operation.
Matching voltage specifications and power ratings is critical to avoid safety risks and equipment damage.
Step-down transformers also help prevent overloads and electrical surges. By providing electrical isolation between input and output circuits, they protect sensitive devices. Their design features, such as laminated iron cores and cooling systems, reduce energy loss and prevent overheating. Regular maintenance and inspections keep these transformers working safely.
Tip: Always use equipment that matches the voltage rating provided by the step-down transformer to avoid accidents.
Device Protection
Modern homes and industries use many sensitive electronic devices. These devices need a steady and correct voltage to work well. Step-down transformers make sure that each device receives the right amount of voltage. This protection helps prevent damage from overvoltage, which can ruin expensive equipment.
Step-down transformers do not stop all voltage surges. Surge protective devices (SPDs) and proper grounding systems are needed to absorb or divert extra voltage during surges. Overcurrent protection, such as fuses or circuit breakers, disconnects power during excessive voltage. Regular inspection and remote monitoring can help detect early damage from surges.
A scientific study shows that using natural ester insulating liquids in step-down transformers slows down the aging of the transformer’s insulation. This means the transformer can last longer and continue to protect household and industrial equipment for many years.
Energy Efficiency
Step-down transformers help electrical systems use power more efficiently. By lowering high transmission voltages to levels that equipment can use, they minimize energy losses. This voltage regulation improves the overall efficiency of power distribution systems and leads to lower operational costs.
Step-down transformers reduce high-voltage electricity to levels suitable for use by equipment and devices within a facility.
By delivering electricity at the appropriate voltage, they minimize energy losses.
This voltage regulation improves the overall efficiency of power distribution systems.
Reduced energy losses lead to lower operational costs.
Ensuring correct voltage levels also enhances safety by preventing overloading and electrical faults.
Upgrading to high-efficiency power transformers can save thousands of dollars over their lifetime. For example, a high-efficiency transformer may cost more at first, but it can save nearly $16,000 in total owning costs over 15 years. These savings come from lower annual energy costs and reduced maintenance needs. Efficient transformers also help meet regulatory standards and support sustainability goals.
Step-down transformers also provide stable and regulated voltage. They use advanced design and feedback control systems to minimize voltage drops and ensure a steady output. This stability keeps equipment running smoothly and reduces the risk of damage. Cleaner power delivery and standardized voltage requirements simplify maintenance and lower costs for large-scale installations.
Applications of Step-Down Transformers
Residential Use

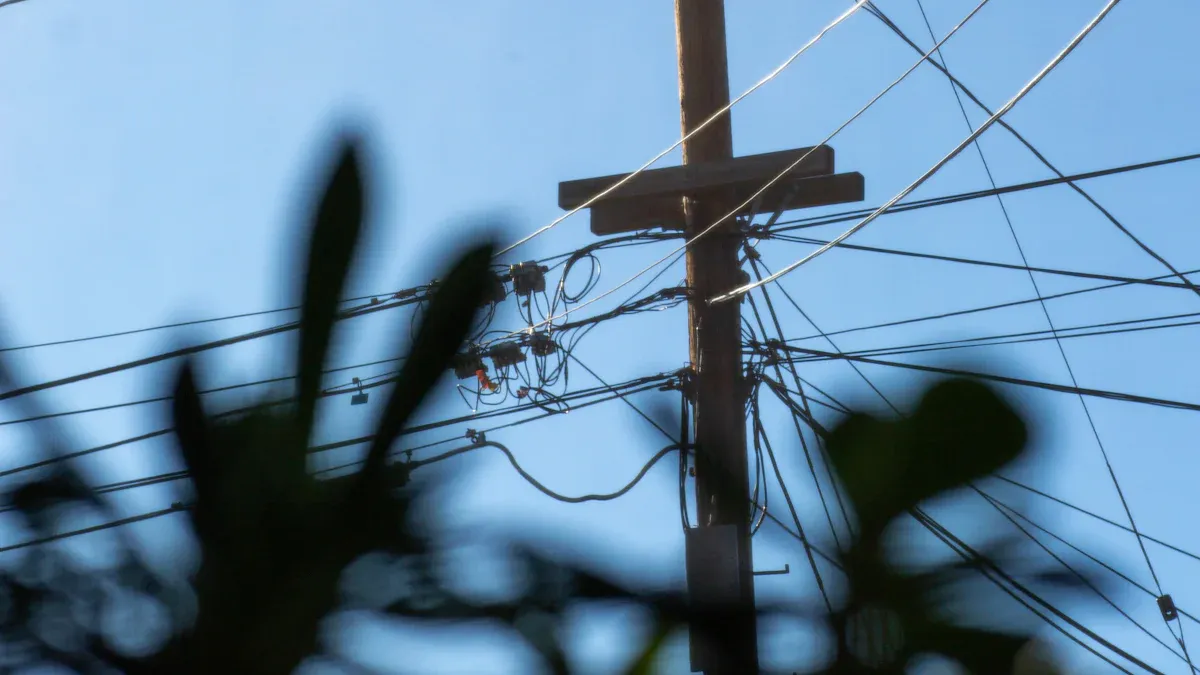

The applications of step-down transformers in homes start at the neighborhood level. Large transformers at substations lower the high voltage from power lines to safer levels, such as 7,200 volts. Smaller transformers on utility poles or in ground enclosures then reduce this voltage further to the standard 120/240V used in American households. This process ensures that all appliances and devices receive safe and reliable power.
Many applications of step-down transformers appear inside the home. These include powering low-voltage lighting systems, such as landscape and under-cabinet lights, and supplying the correct voltage for doorbells and security systems. Homeowners also rely on transformers for charging electronic devices, running HVAC systems, and supporting electric vehicle charging stations. Each of these uses highlights the importance of voltage conversion for daily comfort and safety.
Tip: Using the right transformer for each application helps protect devices and keeps homes safe.
Industrial and Commercial Applications
Industrial and commercial sectors depend on many applications of step-down transformers. Factories, steel mills, chemical plants, and mining operations use transformers to convert high utility voltages, like 33kV or 11kV, down to levels suitable for heavy machinery and automation systems. Commercial buildings, such as shopping malls and hotels, use transformers to distribute power to lighting, elevators, HVAC, and IT infrastructure.
Sector Type | Examples of Sectors | Transformer Role and Applications |
|---|---|---|
Industrial | Steel mills, chemical plants, mining, automotive manufacturing, data centers | Powering heavy machinery, automation, and electronics by converting high voltages to usable levels. Provides system isolation, load distribution, and power quality stabilization. |
Commercial | Shopping malls, hotels, office buildings, data centers | Distributes power to HVAC, lighting, elevators, and IT. Steps down voltages for different building zones and systems. |

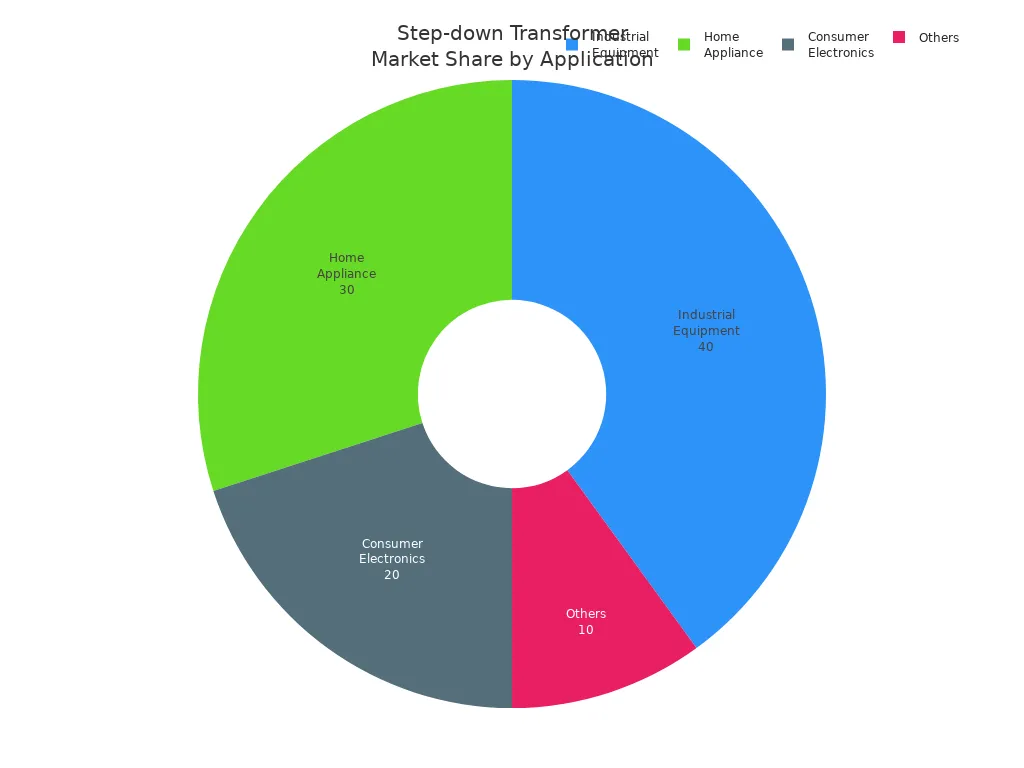

The global market for these applications of step-down transformers continues to grow. Rapid urbanization and rising electricity demand drive this trend. In 2024, the estimated market size for industrial and commercial uses reached about $7.8 billion.
Electronics and Devices
Many applications of step-down transformers exist in consumer electronics and small devices. Power adapters and chargers use compact transformers to convert high wall outlet voltage to safe levels for phones, laptops, and tablets. Inside devices, transformers in switch mode power supplies regulate voltage for internal components. Voltage stabilizers and inverters also use transformers to protect electronics from fluctuations.
These applications of step-down transformers allow devices to operate safely and efficiently. Their small size and high efficiency make them ideal for modern electronics. By providing stable, low-voltage power, transformers help extend the life of sensitive devices and prevent damage from electrical surges.
Note: The wide range of applications of step-down transformers—from homes to factories to electronics—shows their essential role in modern life.
Step Down Transformer vs. Step Up Transformer
Key Differences
Transformers play a vital role in electrical systems by changing voltage levels. Step-down and step-up transformers have different designs and uses. A step-down transformer reduces high voltage to a lower, safer level. A step-up transformer increases low voltage to a higher level, often for sending electricity over long distances.
Here is a table showing the main differences:
Aspect | Step-Up Transformer | Step-Down Transformer |
|---|---|---|
Voltage Change | Increases voltage (e.g., 220V to 11,000V or more) | Decreases voltage (e.g., 220V to 110V, 24V, or less) |
Winding Turns | Primary has fewer turns; secondary has more | Primary has more turns; secondary has fewer |
Wire Thickness | Primary uses thicker wire; secondary uses thinner | Secondary uses thicker wire; primary uses thinner |
Function | Raises voltage for efficient transmission | Lowers voltage for safe use by equipment |
Applications | Power grid, industrial equipment | Homes, electronics, industrial tools |
Both types of transformers use electromagnetic induction and reach high efficiency, often above 95%. The efficiency depends on the design and load, not just the type.
Note: Using a transformer in reverse can cause safety risks and code violations. Always consult an expert before reversing a transformer’s function.
When to Use Each Transformer
Engineers use step-up transformers at the start of the power grid. These devices raise voltage so electricity can travel long distances with less energy loss. Power transformers in substations often use this method to send electricity from power plants to cities.
Step-down transformers are used at the end of the grid. They lower the voltage to safe levels for homes, schools, and businesses. Utility poles and pad-mount units use these transformers to supply power to neighborhoods and buildings. Inside homes, smaller transformers provide the right voltage for appliances and electronics.
Step-up transformers: Use when sending electricity over long distances or powering equipment that needs high voltage.
Step-down transformers: Use when delivering electricity to end users or powering devices that require lower voltage.
Transformers cannot create power; they only change voltage and current levels. Using the correct transformer ensures safety, efficiency, and reliable power for everyone.
Transformers ensure safe, efficient, and reliable power for homes, businesses, and critical infrastructure.
They reduce voltage to safe levels, protect equipment, and support stable energy management.
Regular maintenance and advanced features like real-time monitoring help prevent outages and improve grid reliability.
Experts highlight that transformers meeting industry standards play a vital role in modern electrical systems.
Smart grid technology and new materials will continue to improve transformer performance and support future energy needs.
FAQ
What is the main purpose of a step-down transformer?
A step-down transformer lowers high voltage to a safer, usable level. This process protects people and equipment from electrical hazards. Homes, schools, and factories depend on these devices for safe power.
Can a step-down transformer work in both directions?
A step-down transformer can technically work in reverse as a step-up transformer. However, engineers design each transformer for a specific direction. Using it backward may cause safety risks or damage.
Why do electronic devices need step-down transformers?
Electronic devices need lower voltage to operate safely. Step-down transformers provide the correct voltage for phones, computers, and appliances. This protection helps prevent overheating and electrical failure.
How often should a step-down transformer receive maintenance?
Most experts recommend checking step-down transformers once a year. Regular inspections help spot problems early. Maintenance includes cleaning, checking connections, and testing for safe operation.
Are step-down transformers energy efficient?
Yes, most step-down transformers operate with high efficiency, often above 95%. Efficient transformers save energy and reduce costs. Upgrading to modern models can improve performance and support sustainability goals.
Tip: Always follow manufacturer guidelines for safe transformer use and maintenance.
