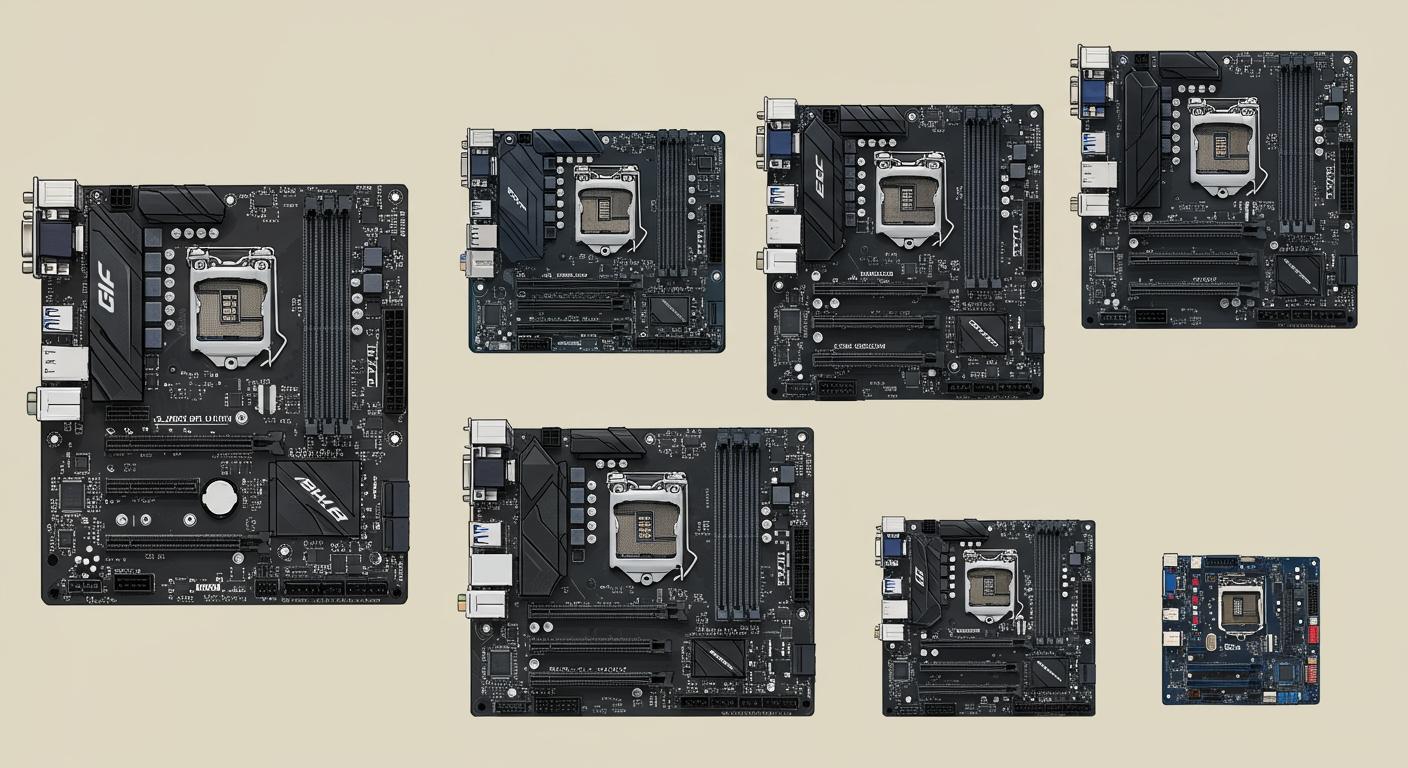

From ATX to ITX Exploring the 5 Main System Board Types

This guide demystifies the five main types of system boards for your 2025 PC build. You will explore these popular form factors:

• ATX (Advanced Technology eXtended)
• Micro-ATX
• Mini-ITX
• E-ATX (Extended ATX)
• Nano-ITX

Current market trends create new challenges for builders. Your building strategy must balance size against features. This shift reflects the Americas board priorities 2025. By the end, you will confidently answer "what is the system board for me?" and select the perfect match for your project.

Key Takeaways

• A system board connects all your computer parts. It is like the computer's main body.
• System boards come in different sizes. Each size fits different computer cases and has different features.
• ATX boards are common for gaming. They offer many slots for upgrades.
• Mini-ITX boards are very small. They are good for tiny computers, but have fewer upgrade options.
• Choose your system board based on your computer's purpose. Think about its size and what you want it to do.

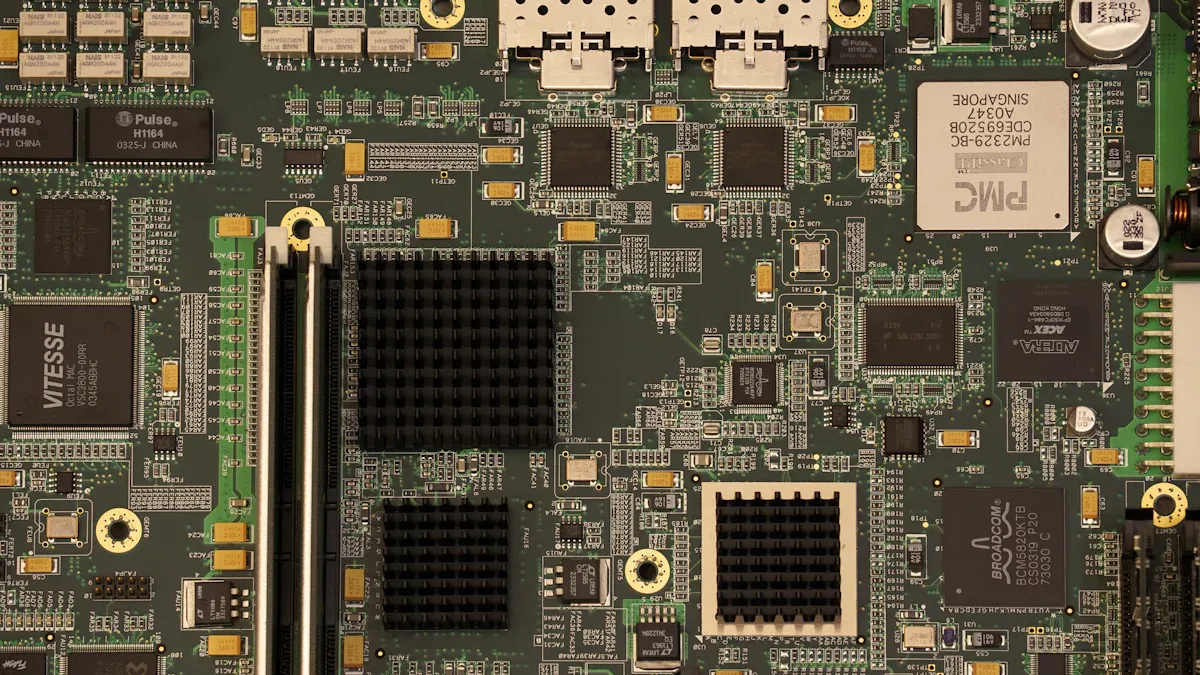

First, What Is the System Board?

So, what is the system board? You can think of it as your PC’s central nervous system and skeleton combined. It is a large printed circuit board that connects all your computer's components, allowing them to communicate with each other. Everything from your processor to your graphics card plugs directly into it.

Core Components

Your system board hosts several critical parts. The CPU socket holds your processor, while RAM slots house your system memory. Expansion slots, like PCIe, let you add graphics cards and other hardware. One crucial but often overlooked component is the Voltage Regulator Module (VRM). The VRM takes power from your power supply and converts it to the precise, lower voltage your CPU needs. This ensures stable power, which is vital for performance and even overclocking. Without a quality VRM, your processor would not get the clean power it requires to run correctly. Answering "what is the system board" means understanding these essential parts working together.

The Role of Form Factor

Form factor is simply a standard that defines a motherboard's size, shape, and layout of mounting holes. This standard directly impacts the PC case you can use and how you manage airflow. Smaller boards fit in compact cases but offer less room for cooling components. Larger boards require bigger cases but provide ample space for advanced cooling setups.

Did You Know? Modern form factors evolved from older standards. Historical trends show a move toward better integration and layout. Before today's common boards, builders used different types.

Understanding form factor is the first step in answering what is the system board that is right for you.

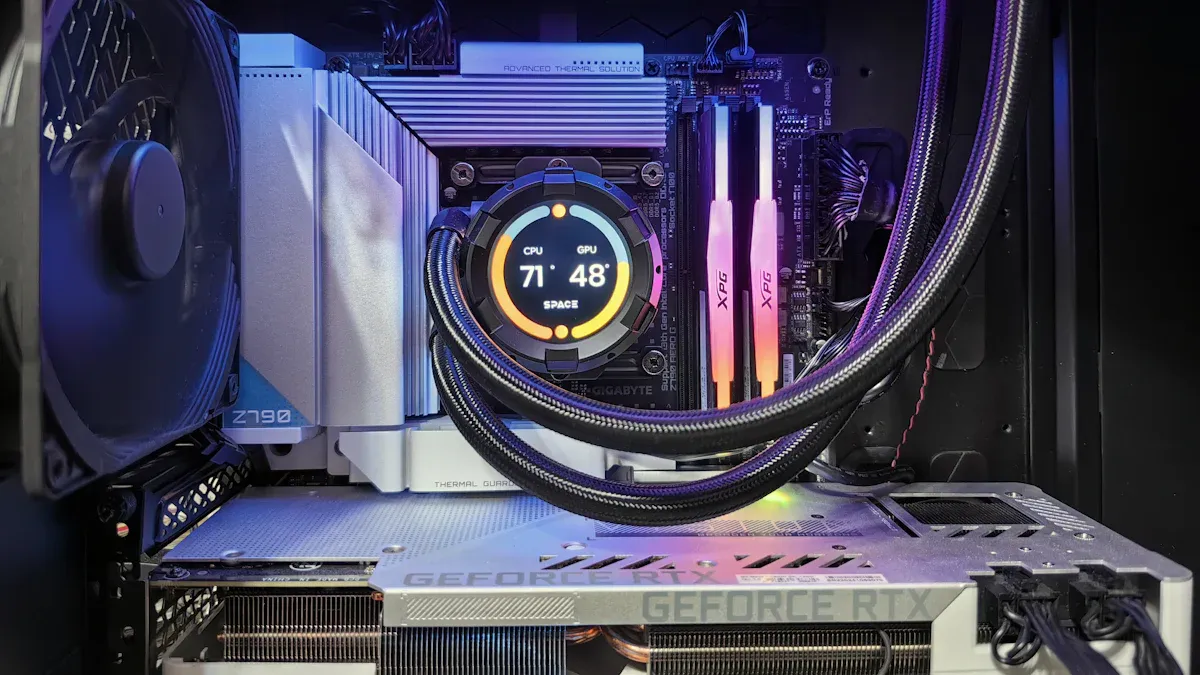

ATX (Advanced Technology eXtended)

The ATX form factor is the long-standing champion for most PC builders. It established the standard layout that many other designs are based on. You will find it offers a fantastic balance of features, space, and accessibility.

Key Features

ATX motherboards have a standard size of 12 x 9.6 inches (30.5 x 24.4 cm). This generous size allows for a full set of features. You typically get up to seven PCIe expansion slots for graphics cards, sound cards, and more. These boards also provide four or more RAM slots for excellent memory capacity.

Connectivity is another major strength. You can expect a wide array of ports on the rear panel.

• USB Ports: Modern ATX boards offer multiple USB types, including USB 3.2 Gen 2 (Type-C and Type-A) and older USB 2.0 ports.
• Audio Ports: You get comprehensive HD audio connections for speakers and headsets. The color-coded ports simplify setup.

Best For

You should choose an ATX motherboard for mainstream gaming PCs and professional workstations. Its size provides ample room for high-end components and cooling solutions. This form factor is also perfect if you prioritize future upgradeability. The extra slots give you the freedom to add more hardware down the line. High-end ATX boards like the MSI MPG Z790 Carbon WiFi are built to handle top-tier processors like the Intel Core i9 series, offering extensive features for enthusiasts.

Pros vs. Cons

The main advantage of ATX is its rich feature set. The spacious layout makes the building process easier, as you have more room to work and manage cables. You get maximum expansion options for a versatile and powerful system.

The primary disadvantage is its size. An ATX motherboard requires a mid-tower or full-tower PC case. This makes it unsuitable for compact or portable builds. These feature-rich boards also tend to cost more, often running $50-$100 more than their smaller counterparts with the same chipset.

Micro-ATX

Micro-ATX offers a fantastic middle ground in the world of system boards. It shrinks the ATX design into a more compact, square-like shape without sacrificing too many core features. This makes it a highly popular and versatile choice.

Key Features

A Micro-ATX board typically measures 9.6 x 9.6 inches (24.4 x 24.4 cm). This smaller size still provides a decent amount of room for expansion. You can expect up to four PCIe slots, which is enough for a graphics card and another expansion card or two. Connectivity remains solid for most users.

What to Expect on a Mid-Range Board You will find that most Micro-ATX motherboards provide essential connections for a complete build.

• You usually get four SATA 6Gb/s ports for your hard drives and SSDs.
• You also get comprehensive control over system fans through software, with several hybrid fan headers available on the board itself.

Best For

You should choose Micro-ATX for budget-friendly builds and compact desktops. It is perfect when you want to save space but still need some room for future upgrades. This form factor hits the sweet spot between the tiny Mini-ITX and the large ATX. For example, you can build a powerful home office PC that is ready for gaming.

A great starting point is a motherboard like the ASRock B650M PG Lightning WiFi. It supports modern DDR5 RAM, has multiple M.2 slots for fast storage, and includes built-in WiFi. You can pair it with a 500W power supply in a compact Micro-ATX case. This setup gives you a capable machine with a clear upgrade path for adding a powerful graphics card later.

Pros vs. Cons

The biggest advantage of Micro-ATX is its balance. You get a smaller footprint that fits in more compact and affordable cases, but you retain more expansion slots than a Mini-ITX board. This makes it a cost-effective and flexible option.

However, there are some trade-offs. The smaller size means you have fewer PCIe slots than a full-size ATX board. The components are also packed more closely together. This layout can sometimes lead to challenges with airflow, especially if you fill all the expansion slots. For this reason, Micro-ATX is generally less suitable for extreme overclocking, as there might not be enough space for gigantic CPU coolers.

Mini-ITX

When your build prioritizes a minimal footprint above all else, you will turn to the Mini-ITX form factor. These tiny but mighty boards are engineered for maximum space efficiency, enabling some of the smallest PC builds possible.

Key Features

Mini-ITX boards have a very small, square footprint of 6.7 x 6.7 inches (17 x 17 cm). This compact size dictates their layout. You will find only a single PCIe slot, which is almost always used for a graphics card. You also get just two RAM slots. To save precious surface area, manufacturers use clever design tricks.

• Many boards place M.2 SSD slots on the back of the motherboard.
• This allows you to install ultra-fast storage without taking up room on the front.
• Some PC cases even have cutouts to help ventilate these rear-mounted drives.

Best For

You should choose Mini-ITX for builds where space is the primary concern. They are perfect for:

• Home Theater PCs (HTPCs): Their small size fits easily into entertainment centers.
• Portable LAN Party Rigs: You can build a powerful gaming PC that is easy to transport. Modern Mini-ITX boards support high-end processors, fast DDR5 RAM, and have built-in WiFi 6E for a lag-free online experience.
• Minimalist Desktops: You can create a clean, clutter-free setup with a very small case.

Pros vs. Cons

The main benefit of Mini-ITX is its incredible space-saving design. You can build a high-performance PC that takes up a fraction of the space of an ATX system. Despite their size, premium models offer features like PCIe 5.0 readiness and robust power stages for overclocking.

However, this compact size introduces some challenges. Limited expansion is the biggest drawback, with only one PCIe slot available. The cramped layout can make building more difficult and complicates cable management. Cooling can also be an issue, as there is less room for large CPU coolers and airflow is more restricted. Finally, these specialized boards often carry a higher price tag compared to larger counterparts with similar features.

E-ATX (Extended ATX)

When you need the absolute maximum in performance and features, you will look at the E-ATX form factor. These motherboards are larger than standard ATX, designed for the most demanding enthusiast and professional builds. They represent the peak of desktop system board engineering.

Key Features

E-ATX boards are defined by their massive size, typically measuring 12 x 13 inches (30.5 x 33 cm). This extra real estate is not for show. It allows manufacturers to pack in more of everything.

• You get more RAM slots, often eight, for huge memory capacities.
• You find enhanced power delivery systems (VRMs) for extreme overclocking.
• There is ample space for multiple M.2 slots and extra connectivity ports.

Power and Case Needs 💡 You must use a full-tower case designed for E-ATX to fit these large boards. For power, they use a standard ATX power supply. However, the high-end components used in these builds often require a powerful unit, typically 850W or more.

Best For

You should choose an E-ATX motherboard for ultimate-tier gaming rigs, professional content creation workstations, and servers. These boards are essential for builds that use multiple graphics cards or top-of-the-line processors. For example, building a machine learning server in 2025 often requires an E-ATX board like the ASUS Pro WRX80E. This allows you to install powerful CPUs and several GPUs for heavy data science tasks.

Pros vs. Cons

The primary advantage of E-ATX is its unparalleled expansion capability. You get the most slots, the best power delivery, and the most space for custom cooling loops. This makes it the top choice for users who want to push their hardware to the absolute limit without compromise.

The main drawbacks are cost and size. E-ATX motherboards and the full-tower cases they require are expensive. The large size also means your PC will have a massive footprint. For most gamers and general users, the features offered by these specialized boards are simply overkill.

Nano-ITX

You will encounter the Nano-ITX form factor in highly specialized and embedded systems. It pushes the boundaries of miniaturization, creating some of the smallest fully-featured computers possible. This form factor is not for your average desktop build but for unique, space-constrained projects.

Key Features

Nano-ITX motherboards are incredibly tiny, measuring just 4.7 x 4.7 inches (12 x 12 cm). This ultra-compact size means components are almost always integrated directly onto the board. You will find that these systems use low-power CPUs that are soldered on. Processors like the Intel Atom or specific Intel Core U-series chips are common choices. This design prioritizes power efficiency and a small footprint over raw performance. You get a complete system in a package that can fit in the palm of your hand.

Best For

You should choose Nano-ITX for dedicated, single-purpose devices where size and low power draw are critical. These are not meant for general computing or gaming. Instead, they excel in commercial and industrial applications.

• Digital signage for outdoor environments
• IoT gateways that connect smart devices
• Thin clients for business networks
• Media centers and car PCs
• Specialized medical devices

A Note on Use Cases 📝 These systems are designed to be set up and left to perform a specific task reliably. Their small size and low heat output make them perfect for embedding inside other products like kiosks or automated equipment.

Pros vs. Cons

The main advantage of Nano-ITX is its extremely small size and minimal power consumption. This makes it ideal for building silent, fanless systems that can run 24/7. You can fit a complete computer into a tiny enclosure.

However, the limitations are significant. You get very limited processing power compared to other form factors. These boards rely on integrated graphics, so they are unsuitable for demanding visual tasks. Expansion is also severely restricted, often limited to a single mini-PCIe slot for adding something like a Wi-Fi card. For most builders, these specialized boards lack the power and flexibility needed for a desktop PC.

System Board Comparison

You have learned about each form factor individually. Now, let's compare them side-by-side. This will help you see the key differences and make a final decision. Answering "what is the system board for you?" becomes much easier when you see all the options together.

Size and Dimensions

The most obvious difference between these boards is their physical size. The dimensions directly determine which PC cases you can use. Smaller boards allow for compact builds, while larger ones require more space.

This chart shows the size trends clearly. You can see how each form factor grows, offering more surface area for features.

Use Case Summary

Your choice depends entirely on your project's goal. Each form factor serves a different purpose. The table below summarizes the best use for each type.

Expansion Potential

Expansion potential is about more than just the number of slots. You must also consider physical space. A large graphics card can easily block adjacent PCIe slots on smaller boards. E-ATX and ATX boards offer up to eight and four RAM slots, respectively, giving you maximum memory capacity.

A Note on Compatibility 💡 Remember that CPU socket and chipset compatibility are critical. You must ensure your chosen processor works with your motherboard, regardless of its form factor.

Different PCIe slots serve different functions.

• PCIe x16: You use this for your graphics card.
• PCIe x8/x4: These are for other high-speed cards like storage controllers.
• PCIe x1: This slot is for less demanding hardware like sound or network cards.

---

You now understand the main system board types. Your ideal choice balances size, features, and budget. Larger boards like ATX offer more expansion. Smaller boards like Mini-ITX save space. Current trends present new challenges for builders. Your building strategy must account for this.

Your final strategy should reflect the americas board priorities 2025. First, define your PC's purpose. Then, use this guide to confidently select the right boards for your project. 🚀

FAQ

Can I put a small motherboard in a big case?

Yes, you can install a smaller motherboard in a larger case. For example, you can fit a Mini-ITX or Micro-ATX board inside an ATX case. Most cases have multiple mounting points to support smaller form factors. This gives you lots of room for components and airflow.

What is a chipset and why does it matter?

The chipset is the motherboard's data traffic controller. It determines your CPU compatibility, the number of USB ports, and PCIe lane availability. New trends show chipsets adding more features. Your choice of chipset is a key part of your build strategy.

Should I choose ATX or Micro-ATX?

Your choice depends on your needs. You should choose ATX for maximum expansion and easier building. You should pick Micro-ATX for a more compact and budget-friendly build that still offers some upgrade options. This decision is a core part of your building strategy.

How do I know which CPU fits my motherboard?

You must match the CPU socket type. For example, an AMD AM5 CPU needs a motherboard with an AM5 socket. The americas board priorities 2025 report highlights the importance of this compatibility. Always check the motherboard's official support list on the manufacturer's website before you buy.
