An Analog-to-Digital Converter (ADC) is a vital system. It measures real-world analog signals, like sound, and turns them into digital numbers. This function makes the ADC an essential bridge. It allows digital devices, such as computers, to understand information from the analog world. The ADC converts the signal's strength at a specific moment into an "n-bit" binary number. The ADC market is growing, with one projection showing it will reach USD 8.23 Billion by 2032.

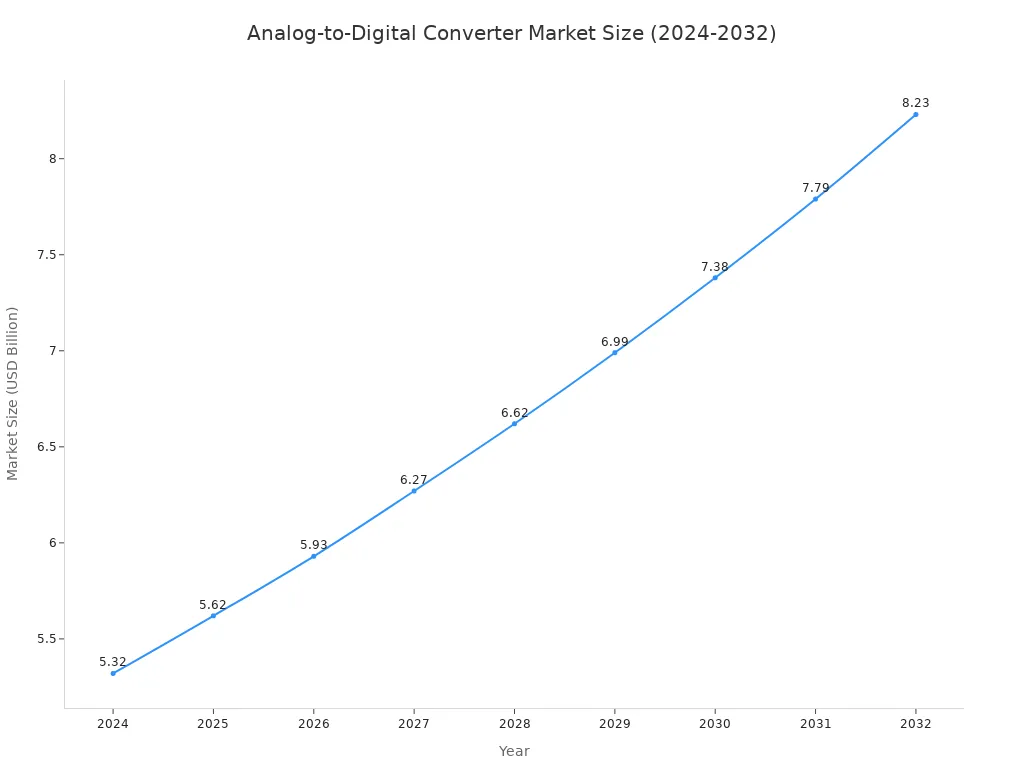

The digital ADC is a key component in modern electronics. This analog-to-digital converter is fundamental. The ADC enables countless technologies. An ADC is crucial. Every ADC performs this translation. The ADC is everywhere. An ADC is a core part. An ADC is necessary. An ADC is the translator. An ADC is the link. An ADC makes modern life possible.
An analog-to-digital converter translates a continuous real-world signal into a discrete digital format. This complex task happens in three main steps. Each step plays a critical role in ensuring the final digital output accurately represents the original analog input. The process involves sampling the signal, quantizing its value, and encoding it into binary.
The first step in the conversion process is sampling. You can think of sampling as taking a series of rapid "snapshots" of the analog signal at regular intervals. Each snapshot captures the signal's voltage at a specific moment in time. The frequency at which an adc takes these snapshots is called the sampling rate. A higher sampling rate means the adc takes more snapshots per second.
The choice of sampling rate is extremely important. A fundamental principle called the Nyquist-Shannon sampling theorem guides this decision.
The theorem states that to accurately reconstruct an analog signal from its samples, the sampling rate must be at least twice the highest frequency present in the signal. This minimum rate is often called the Nyquist rate. For example, the highest frequency humans can hear is about 20,000 Hz. Audio CDs use a sampling rate of 44,100 Hz to safely capture this range.
If the sampling rate is too low, a problem called aliasing occurs. Aliasing is an error where high-frequency parts of the original signal are incorrectly interpreted as lower frequencies. This distortion makes it impossible for the adc to create an accurate digital version. To prevent this, systems use a special component. An anti-aliasing filter, which is an analog low-pass filter, sits before the adc. It removes frequencies above the Nyquist limit before the signal is ever sampled.
After sampling, the next step is quantization. Imagine the continuous range of possible voltages as a smooth ramp. Quantization converts this ramp into a digital "staircase." It assigns each voltage snapshot to the nearest available step on this staircase. Each step represents a discrete digital value. An adc cannot represent every possible analog value, so it must round each sample to the closest level it knows.
The number of steps on the staircase depends on the resolution of the adc, which is measured in bits. An 'n'-bit adc has 2ⁿ possible levels.
More bits mean more steps, and smaller gaps between them. This results in a more precise representation of the analog signal. However, this rounding process introduces a small, unavoidable error called quantization error. This error is the difference between the actual analog sample and the digital value assigned to it. The maximum quantization error is typically half the size of one step, or ±1/2 of the Least Significant Bit (LSB). A higher-resolution adc reduces this error. Engineers sometimes use a technique called dithering, which adds a tiny amount of intentional noise, to spread out quantization errors and improve the overall signal fidelity.
| ADC Resolution | Number of Levels | Example Voltage Step (0-5V Range) |
|---|---|---|
| 8-bit | 256 | 19.53 mV |
| 12-bit | 4,096 | 1.22 mV |
| 16-bit | 65,536 | 0.076 mV |
The final step is encoding. This stage converts the step number from the quantization process into a binary code—a sequence of 1s and 0s that a computer can understand. Each discrete level on the digital staircase has a unique binary number assigned to it. The digital adc outputs this binary code for each sample it processes.
The encoding process follows a clear procedure:
For example, in an 8-bit system, the lowest level might be 00000000, the middle level could be 10000000, and the highest level would be 11111111. Different encoding schemes exist to represent these numbers. Common schemes include offset binary, which is useful for unipolar signals (voltages that are only positive), and two's complement, which can represent both positive and negative bipolar signals. This final binary output is the digital representation of the original analog snapshot, completing the journey across the analog-to-digital bridge.
Choosing the right analog-to-digital converter requires understanding its key performance metrics. These parameters determine how accurately and efficiently an adc can translate an analog signal into digital data. The three most critical specifications are resolution, sampling rate, and signal-to-noise ratio. Each one impacts the final quality of the digital output.
Resolution defines the precision of an adc. It is the number of bits the converter uses to represent an analog sample. A higher resolution means the digital "staircase" has more, smaller steps, allowing the adc to capture finer details of the original signal. This direct relationship means higher bit counts yield higher precision.
The smallest voltage change an adc can detect is called the Least Significant Bit (LSB). Its value depends on the adc resolution and its reference voltage (Vref). For an 8-bit adc with a 0.0V to 5.0V range, the LSB is calculated as 5V divided by 2⁸ (256) levels, which equals 19.53 millivolts (mV). Any voltage change smaller than this value will go undetected. A higher resolution adc dramatically reduces the LSB size, increasing measurement sensitivity.
The required resolution varies by application. Consumer electronics often use built-in ADCs with lower resolutions, while scientific instruments demand much higher precision from external components.
| Application Type | ADC Type | Typical Resolution |
|---|---|---|
| Consumer Electronics | Built-in | 8 to 12 bits |
| Scientific Instruments | External | Up to 24 bits |
The sampling rate is the speed of an adc. It specifies how many times per second the converter takes a "snapshot" of the analog signal. This rate is measured in Hertz (Hz) or samples per second (SPS). A higher sampling rate provides a more detailed picture of the signal over time, which is crucial for accurately capturing fast-changing signals.
Different applications have established standard sampling rates based on the frequencies they need to capture.
A Note on Trade-offs 📝 Choosing a sampling rate involves balancing cost and quality. A lower sampling frequency can reduce the manufacturing cost of an adc. However, this cost saving comes with a higher risk of errors like aliasing, where the digital signal does not faithfully represent the original analog input.
Engineers use a technique called oversampling to boost performance. Oversampling involves using a sampling rate much higher than the Nyquist rate. This process offers several benefits, including increased resolution and reduced noise. For example, a 20-bit adc running at 256 times the target sampling rate can achieve an effective 24-bit resolution. This technique allows a lower-resolution digital adc to produce higher-quality results.
Signal-to-Noise Ratio (SNR) measures the quality of a signal. It compares the level of the desired signal to the level of background noise. A higher SNR value indicates a cleaner, more accurate signal representation. The value is typically expressed in decibels (dB).
Noise can come from both internal and external sources.
An ADC's resolution is the primary factor determining its theoretical maximum SNR. Each additional bit of resolution increases the SNR, allowing the adc to distinguish the signal from the noise floor more effectively. The Signal-to-Quantization-Noise Ratio (SQNR) for an ideal adc follows the formula (1.76 + 6.02 * b) dB, where 'b' is the bit depth.
| Bit Depth | Theoretical Maximum SNR |
|---|---|
| 12-bit | ~74 dB |
| 16-bit | ~98 dB |
| 24-bit | ~146 dB |
This table shows that 16-bit digital audio, like that on a CD, has a very high theoretical SNR of 98 dB. A 24-bit system pushes this even further to 146 dB, capturing an incredibly clean and detailed signal.
Engineers choose from several common types of adcs based on an application's needs for speed, resolution, and power. Each digital adc has unique strengths and weaknesses. Understanding these popular types of adcs helps in selecting the right component for any project.
The Successive Approximation Register (SAR) adc offers a great balance of speed and resolution. This adc is popular in data acquisition systems and industrial control. The SAR adc follows a binary search method to find the digital code.
This efficient method makes the SAR adc ideal for applications like medical ECG measurements and robotics.
The Sigma-Delta (ΣΔ) adc excels at high-resolution, low-frequency tasks. This adc uses oversampling and noise shaping to achieve very high precision. It samples the signal at a rate much faster than required. This process spreads quantization noise over a wider frequency range. A digital filter then removes the noise, leaving a clean, high-resolution signal. This adc is common in digital audio equipment, smartphones, and precision industrial measurement tools. The design of this adc makes it perfect for capturing high-fidelity sound.
The Flash adc is the fastest of all types of adcs. This adc uses a parallel design with a large number of comparators. Each comparator checks the input signal against a unique reference voltage. This allows the adc to convert the signal in a single clock cycle. However, this speed comes at a high cost.
These different types of adcs serve specific needs, from the balanced performance of SAR to the high-speed conversion of Flash.
The applications of adcs are vast and essential to modern technology. An adc is a core component in countless devices. These devices translate real-world phenomena into digital information for processing and storage. Many data acquisition systems rely on an adc. These data acquisition systems are found in science, industry, and consumer electronics. An adc makes these systems possible.
A digital oscilloscope uses an adc to measure and display voltage signals. The vertical resolution of the adc determines the precision of this measurement. A higher resolution allows the adc to represent the signal with more detail. However, a more realistic measure of accuracy is the Effective Number of Bits (ENOB). ENOB considers real-world factors like noise and distortion from the entire measurement chain. High-quality data acquisition systems in oscilloscopes need a capable adc and excellent signal conditioning to achieve a high ENOB. These data acquisition systems depend on a quality adc.
High-precision digital multimeters often use a specific type of digital adc. The Sigma-Delta adc is favored for these tools. This adc uses oversampling and noise shaping to deliver very high-resolution outputs. This architecture allows the adc to achieve resolutions of 16 bits or more with excellent linearity. Many data acquisition systems in modern multimeters use this adc.
Audio and voice systems are common applications of adcs. A microphone first converts sound waves into an analog electrical signal. An adc then samples this signal and converts it into a digital stream. This digital data can be stored, edited, or transmitted. The quality of the adc directly impacts the fidelity of the recording. High-fidelity data acquisition systems use a high-resolution adc to capture a clean sound. These data acquisition systems are crucial for professional audio. The data acquisition systems in smartphones also use an adc for voice calls and recording.
An analog-to-digital converter is the fundamental component translating continuous reality into the discrete language of electronics. The choice of an ADC—whether SAR, Sigma-Delta, or Flash—depends on an application's specific needs for resolution, speed, and accuracy. Emerging trends even show ADCs integrating directly with FPGAs for enhanced efficiency and precision.
This technology acts as the critical bridge between the physical and digital realms. It makes everything from scientific measurement to digital communication possible. 🌉
An Analog-to-Digital Converter (ADC) performs one primary job. It measures a real-world analog signal, like voltage from a sensor. The ADC then translates that measurement into a digital number that a computer or microcontroller can process and understand.
Resolution determines an ADC's precision. A higher resolution, measured in bits, provides a more accurate digital representation of the analog signal. It allows the converter to detect smaller signal changes, resulting in a higher-quality measurement. More bits equal more detail.
A low sampling rate causes a serious error called aliasing. This problem distorts the digital signal. High frequencies in the original signal incorrectly appear as lower frequencies. The resulting digital data does not faithfully represent the analog input.
Quick Tip 💡 The Nyquist theorem helps engineers avoid aliasing. It states the sampling rate must be at least twice the signal's highest frequency.
The Flash ADC is the fastest type available. It uses a parallel architecture with many comparators to convert a signal in a single clock cycle. This speed makes it ideal for high-frequency applications like radar and digital oscilloscopes.
