Test Capacitor with Multimeter in 2025 for Best Accuracy

To test capacitor with multimeter in 2025, you need to prioritize both accuracy and safety. High voltage capacitors can keep a charge for a long time, which may cause electric shock or damage your multimeter if you skip the discharge step. Most experts recommend using a digital multimeter with capacitance mode and smart features for best results. You will often test a capacitor like an electrolytic one, which is common in power supply units and can show issues such as leakage or high resistance as it ages.

Before you test a capacitor, always remember these safety steps:

• Discharge the capacitor using a resistor or discharge tool.
• Wear gloves and goggles.
• Check for bulging or leaks.

By following these steps, you can test capacitor with multimeter safely and get accurate readings every time.

Key Takeaways

• Always discharge capacitors safely using a resistor before testing to avoid shocks and protect your multimeter.
• Use a digital multimeter with capacitance mode and auto-ranging features for accurate and easy measurements.
• Remove capacitors from the circuit before testing to get true readings and avoid interference from other components.
• Keep your multimeter calibrated and test in stable temperature and humidity conditions for the best accuracy.
• Follow safety steps like wearing gloves and goggles, and replace any capacitor that shows damage or leaks.

Preparation

Tools Needed

To test a capacitor accurately in 2025, you need the right equipment. Start with a digital multimeter that supports capacitance measurement. Many models, such as the AstroAI 6000, Fluke 117, and Crenova MS8233D, offer auto-ranging and smart features for easy use. Some digital multimeter models also include non-contact voltage detection, which helps you stay safe around live wires.

You should also have insulated probes, alligator clips, and a high-wattage resistor (10k-20k ohm, 5 watt) for safe discharge. Safety glasses and voltage-rated gloves protect you from accidental shocks. A dedicated capacitance meter, like the DER-5000, can give even more accurate readings, but a digital multimeter with proper calibration works well for most tasks.

Safety Steps

⚠️ Always put safety first when testing capacitors. High voltage can cause serious injury.

1. Turn off and unplug the device before you begin.
2. Wear safety glasses and voltage-rated insulated gloves.
3. Use a resistor to discharge the capacitor. Connect the resistor across the terminals for about five seconds.
4. Check the voltage with your multimeter set to DC volts. If the reading is under 1 volt, the capacitor is safe to handle.
5. Never use a screwdriver to discharge high-voltage capacitors. The resistor method is safer and prevents sparks.
6. Avoid testing capacitors while they are still in the circuit. Remove them for accurate capacitance readings.
7. Replace any capacitor that looks damaged or leaks fluid.

Follow these steps every time you test a capacitor. This routine keeps you safe and ensures your digital multimeter gives the most accurate capacitance results.

How to Test a Capacitor

Testing a capacitor with a multimeter helps you find out if it works well or needs replacement. You can use both capacitance and resistance modes to check its health. Follow these steps to get the most accurate results.

Discharge the Capacitor

Before you start, always make sure the capacitor is safe to handle. Capacitors can hold a charge even after you turn off the power.

1. Turn off the power and unplug the device.
2. Use a 20,000 Ω, 5-watt resistor to connect across the capacitor’s terminals for about five seconds. This safely drains any stored charge.
3. Use your multimeter set to DC volts to check the voltage. If the reading is below 1 volt, the capacitor is safe.
4. Never use a metal tool like a screwdriver to discharge, as this can cause sparks or damage.

⚠️ Tip: Always discharge the capacitor before you test a capacitor. This step protects both you and your equipment.

Set Multimeter to Capacitance Mode

To measure capacitance, you need to set your multimeter to the correct mode.

1. Find the capacitance measurement mode on your multimeter. Look for a symbol that looks like two parallel lines (the capacitor symbol).
2. If your multimeter has a function button, press it to switch to capacitance mode.
3. For small capacitors, use the REL (relative) mode to zero out the test leads’ capacitance. This gives you a more accurate reading.

Connect Probes Correctly

Proper connection ensures you get the right measurement.

• Remove the capacitor from the circuit. This step is important because other parts in the circuit can affect your reading. When you test a capacitor in-circuit, the multimeter might measure the total capacitance of all connected parts, not just the one you want. By isolating the capacitor, you get a true reading.
• Attach the multimeter probes to the capacitor terminals. For electrolytic capacitors, match the positive probe to the positive terminal and the negative probe to the negative terminal.
• Hold the probes steady for a few seconds. The multimeter may need time to auto-select the correct range.

Measure Capacitance

Now you can measure capacitance and check the capacitor’s health.

1. Read the value on the multimeter display. The unit will be in microfarads (μF), millifarads (mF), or picofarads (pF), depending on the capacitor.
2. If the display shows “OL” or “overload,” the capacitance is too high or the capacitor may be faulty.
3. Compare the measured value to the number printed on the capacitor. If the value is much lower or higher, the capacitor may be bad.
4. For a deeper check, you can also test a capacitor using resistance mode. Set your multimeter to ohms and connect the probes. A healthy capacitor will show a low resistance at first, then the resistance will rise and eventually show as open circuit (infinite resistance). If the resistance stays low or at zero, the capacitor is likely shorted or leaky.

📝 Note: Capacitance readings alone do not always guarantee the capacitor is good. If you want to check capacitor with an ohm meter, look for the rising resistance pattern. For the most accurate results, always test capacitor with multimeter after removing it from the circuit.

Table: What Your Readings Mean

Testing large capacitors may take tens of seconds to a minute, as the multimeter needs time to charge and measure. Smaller capacitors usually give quick results.

By following these steps, you learn how to test a capacitor with confidence. You can measure capacitance, check for shorts or leaks, and decide if you need to replace the part. Always use the right settings and remove the capacitor from the circuit for the best accuracy.

Test Capacitor with Multimeter: Accuracy Tips

Use Auto-Ranging Features

Modern digital multimeter models make it easier than ever to test capacitor with multimeter. When you measure capacitance, auto-ranging features help you avoid mistakes. The multimeter automatically selects the best range after you connect the test leads. This means you do not have to guess which setting to use. You get a more accurate reading because the meter prevents errors like showing "OL" for out-of-range values. Brands like Fluke and Klein Tools design their auto-ranging multimeters to reduce user error and improve precision. You can also find smart features in 2025 models, such as Bluetooth connectivity, cloud integration, and AI-powered diagnostics. These tools help you log data, analyze results, and even get remote support.

💡 Tip: Use a multimeter with auto-ranging and smart features to make capacitor testing faster and more reliable.

Environmental Factors

Temperature and humidity can change how you measure capacitance. If the room is too hot or humid, the readings may not be correct. Always try to test in a stable environment. Some capacitors work better in changing temperatures, but most need steady conditions for the best results. You can use temperature-stable capacitors or apply correction factors if you must test in tough conditions. Make sure you keep your hands dry and the probes clean. This helps your digital multimeter give you the most accurate numbers.

• Temperature changes can cause readings to go up or down.
• Humidity can affect both the capacitor and the multimeter.
• Test in a controlled space for the best accuracy.

Multimeter Calibration

You need to keep your multimeter in top shape to measure capacitance correctly. Most experts recommend calibrating your digital multimeter once a year. This keeps all the functions, including capacitance, working as they should. If you use your meter often or in harsh places, you may need to calibrate it more often. Always check the manual for your model. Regular calibration helps you trust your readings and keeps your test capacitor with multimeter process safe and accurate.

🛠️ Note: A well-calibrated multimeter gives you confidence in every test.

Troubleshooting

Inconsistent Results

You may notice inconsistent readings when you test a capacitor. Several common issues can cause this problem:

1. Testing the capacitor while it is still in the circuit. Other components can interfere and change the results.
2. Forgetting to discharge the capacitor before testing. Residual charge can affect your measurement.
3. Using the wrong range on your multimeter. This can lead to inaccurate values.
4. Not giving the capacitor enough time to fully charge or discharge before taking a reading.
5. Overheating the capacitor during testing. This can damage it and change the results.
6. Using a multimeter that is not properly calibrated.
7. Testing old or damaged capacitors. These may not work as expected.
8. Leakage current inside the capacitor. This can make your readings less accurate.

🛠️ Tip: Always remove the capacitor from the circuit and discharge it before you test a capacitor. This helps you get the most reliable results.

Error Messages

Modern multimeters display error codes to help you find problems quickly. Here are some common codes and what they mean:

If you see an error, follow these steps:

1. Discharge the capacitor with a resistor and check with your meter.
2. Remove the capacitor from the circuit.
3. Set your meter to capacitance mode.
4. Connect the leads and wait for the reading.
5. If you still see "OL," the capacitor may be too large for your meter or it may be faulty.

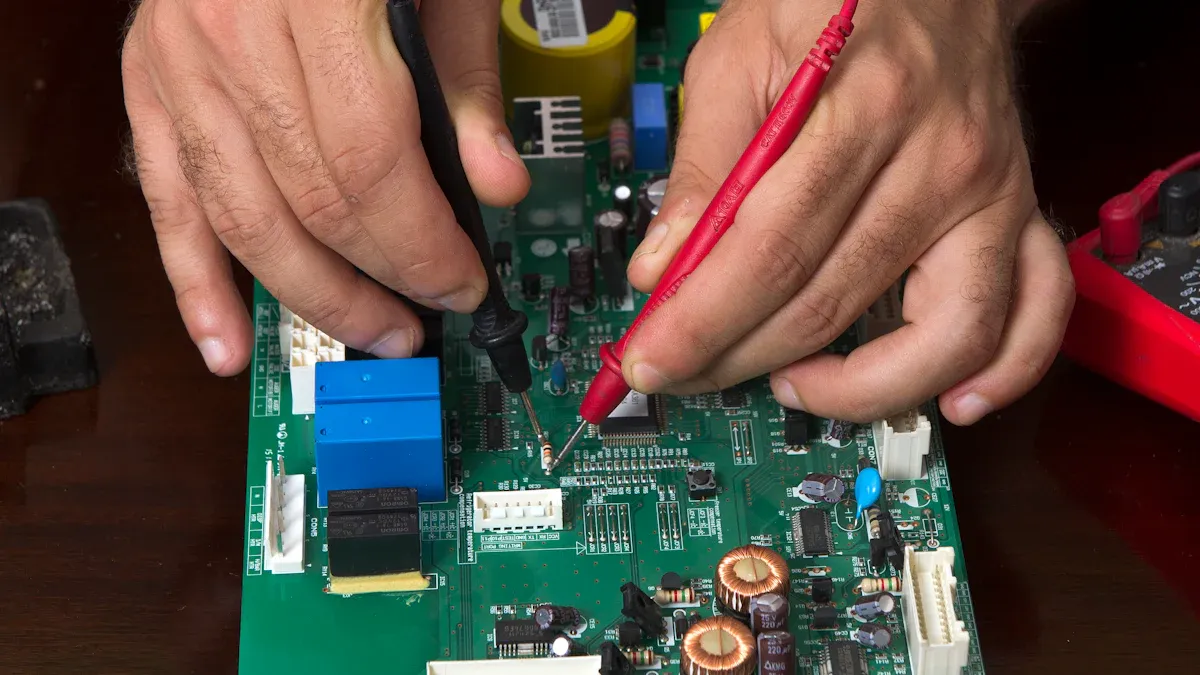

Testing In-Circuit vs. Out-of-Circuit

When you measure capacitor with a voltmeter or multimeter, in-circuit testing often gives unreliable results. Other parts connected in parallel can change the reading. Out-of-circuit testing is more accurate. You should desolder at least one leg of the capacitor before testing. This way, you know the reading comes only from the capacitor itself. In-circuit ESR tests can help find bad capacitors quickly, but they may miss some problems if good capacitors are connected in parallel.

⚡ Note: Always use caution in high-voltage areas. Out-of-circuit testing gives you the best results and helps you avoid mistakes.

---

You can test capacitors with a multimeter in 2025 by following each step carefully. Always discharge the capacitor and use the correct settings on your multimeter. Practice these steps often to build your skills.

• Use a modern multimeter with capacitance mode.
• Discharge capacitors before testing.
• Calibrate your tools regularly.

💡 Tip: Share your questions or experiences in the comments. Your feedback helps others learn, too!

FAQ

How do you know if a capacitor is bad without removing it?

You can test in-circuit, but other parts may affect the reading. Out-of-circuit testing gives you the most accurate results. If you see bulging, leaking, or a burnt smell, replace the capacitor.

Can you test all types of capacitors with a multimeter?

You can test most capacitors, like electrolytic, ceramic, and film types. Some very small or high-voltage capacitors may need special meters. Always check your multimeter’s manual for supported ranges.

What does “OL” mean on my multimeter when testing a capacitor?

“OL” stands for “overload.” Your multimeter cannot measure the value. The capacitor may be too large, open, or faulty. Try another range or check if the capacitor is damaged.

Why does my multimeter show zero resistance when testing a capacitor?

Zero resistance means the capacitor is shorted. You should replace it. A good capacitor shows rising resistance, then infinite resistance. Always discharge the capacitor before testing.
