Why Solar Panel Connectors Matter in Your Energy System
You depend on solar panel connectors to keep your renewable solar panel installations working safely and efficiently. Connectors help transfer energy between panels and other parts in your solar energy systems. Problems with connectors can cause system failures. In fact, the 2024 SolarGrade PV Health Report found that wiring and connectors caused issues in 83% of inspected renewable solar panel installations. Using pv solar connectors that match your system is crucial for your solar power system. You need reliable connectors to reduce energy loss and protect your renewable solar panel installations from harsh weather. High-quality pv solar connectors make your renewable solar panel installations last longer. When you choose the right connectors and maintain them, your renewable solar panel installations stay strong for years.
- Solar panel connectors play a key role in every renewable solar panel installation.
- You must use pv solar connectors built for renewable solar panel installations to keep your system safe.
Key Takeaways
- Solar panel connectors are vital for safe and efficient energy transfer in solar systems.
- Using high-quality, certified connectors reduces energy loss, prevents fires, and extends system life.
- MC4 connectors are the most common and reliable choice for most solar panel installations.
- Regular inspection and proper maintenance of connectors help avoid system failures and costly repairs.
- Always match connectors to your system’s needs and avoid mixing brands to ensure strong, weatherproof connections.
Solar Panel Connectors Explained
What Are Solar Panel Connectors?
You use solar panel connectors to join wires and parts in your solar energy system. These small but important pieces keep your system safe and working well. PV solar connectors lock wires together tightly. This helps your system resist wind, rain, and sunlight. You want pv solar connectors that lower electrical resistance. This keeps your panels from getting too hot and stops energy loss.
Tip: Always check that your pv solar connectors have a waterproof and dustproof seal. This protects your system from damage and keeps it running longer.
PV solar connectors do more than just connect wires. They keep your system safe by stopping sparks and fire hazards. They also make it easy to add or replace panels. When you use the right pv solar connectors, you make sure your system stays strong in all kinds of weather.
Here are the main jobs of pv solar connectors:
- Lock wires securely to resist weather and sunlight.
- Lower resistance to prevent overheating.
- Keep out water and dust.
- Make your system safe by stopping loose connections and sparks.
- Help you upgrade or fix your system easily.
Types of PV Solar Connectors
You will find several types of pv solar connectors in solar systems. The most common type is the MC4 connector. Over 90% of solar panel connectors in homes and businesses use MC4. These connectors snap together and stay locked, even in strong wind or rain. MC4 connectors work with most solar panels and inverters, making them easy to use for many projects.
Other pv solar connectors include MC3, T4, Tyco SolarLok, Radox, and Amphenol. Each type has special features. For example, Amphenol connectors work well in big, off-grid systems. H4 connectors can handle more power and still fit with MC4 connectors.

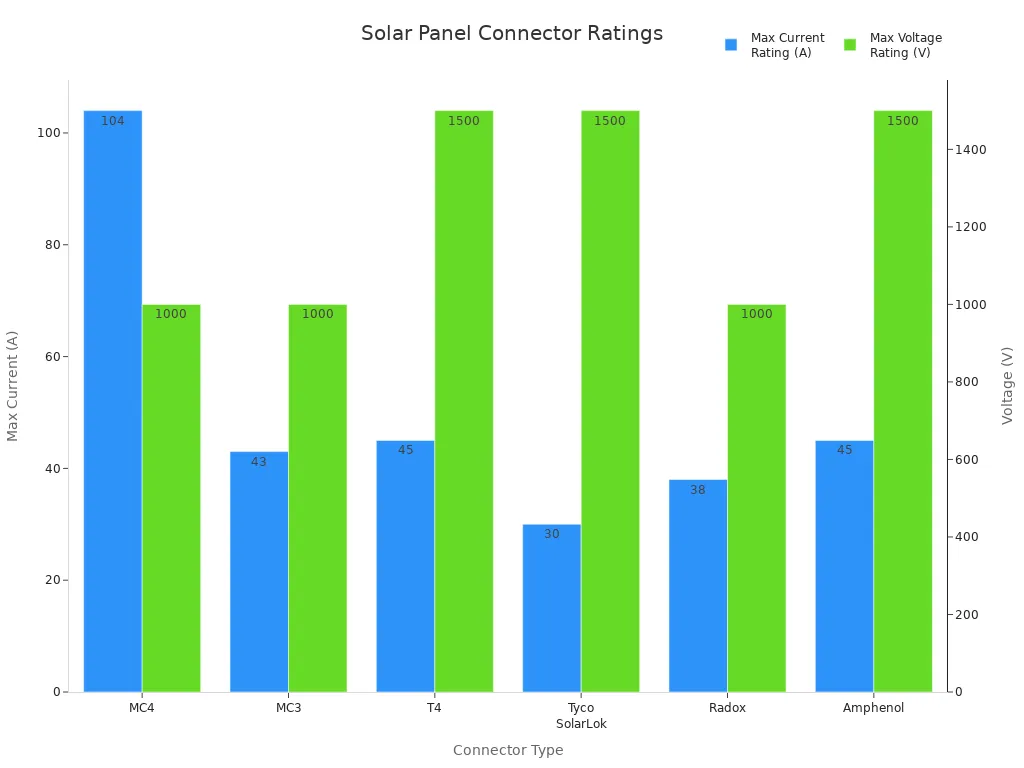

Here is a table to help you compare some common pv solar connectors:
| Connector Type | Usage Context | Key Features | Current Rating (A) | Voltage Rating (V) | IP Rating | Locking Mechanism |
|---|---|---|---|---|---|---|
| MC4 | Most homes and businesses | Reliable, safe, easy to use, UV-resistant | 39-104 | 1000 | IP68 | Secure plug lock |
| MC3 | Older systems | No lock, less weather protection | 20-43 | 1000 | IP65 | None |
| T4 | Canadian Solar panels | Strong seal, wide temp range | 15-45 | 1500 | IP68 | Plug lock |
| Tyco SolarLok | Some outdoor systems | Gender-neutral, easy to use | 20-30 | 1500 | IP65 | Plug lock |
| Radox | Europe | Twist lock, easy to disconnect | 38 | 1000 | IP68 | Twist lock |
| Amphenol | Off-grid, high demand | High temp, strong seal | 15-45 | 1500 | IP68 | Plug lock |
MC4 connectors stand out because they fit almost every solar panel. You can trust them to last over 25 years outdoors. When you pick pv solar connectors, always check for strong locks, high current ratings, and good weather seals. This keeps your solar panel connectors safe and your system running at its best.
Benefits for Solar Power Systems
Safety and Reliability
You want your solar energy systems to work safely every day. High-quality connectors play a big role in safety assurance for all renewable energy systems. When you use pv solar connectors made with strict quality control, you lower the risk of electrical fires. Junction boxes and connectors are places where problems can start. If you use poor connectors or mix different brands, you can create weak spots that may overheat or spark. These weak spots can cause short circuits or even fires in your solar power systems.
High-quality connectors help you avoid these dangers. They use strong materials and tight locking systems. This design keeps wires from coming loose and stops sparks. You also get a reliable connection that stands up to wind, rain, and sunlight. When you choose pv solar connectors that match your system, you make sure your renewable energy systems stay safe and stable. You also make it easier to inspect and maintain your solar panel connectors, which helps you catch problems early.
Note: Always update your connectors if you see signs of wear or if you change parts of your solar energy systems. This keeps your system safe and helps prevent fires.
Efficiency and Power Loss
You want your solar power systems to deliver the most energy output possible. High-quality connectors help you reach this goal. They keep resistance low, which means less energy gets lost as heat. When you use pv solar connectors with good materials and tight seals, you get efficient power transfer between your panels and the rest of your system. This boosts your energy efficiency and helps you get more clean and sustainable energy from your solar panels.
Advances in connector technology also help your renewable energy systems work better. Modern pv solar connectors use smart designs and strong materials. These features let your system handle high voltages and currents without problems. You get steady, reliable transfer of power, even when your system faces tough weather or heavy use. If you use cheap or uncertified connectors, you risk losing power and lowering your energy output. You may also face more repairs and downtime.
Tip: Use certified pv solar connectors that meet UL, CE, or TUV standards. This helps you keep your solar energy systems running at their best.
Durability and Weather Protection
Your solar power systems face harsh weather every day. You need pv solar connectors that can handle rain, dust, heat, and cold. High-quality connectors use waterproof and UV-resistant materials. These features give you strong weather resistance and uv resistance, which protect your renewable energy systems from damage. Connectors with high IP ratings, like IP65 or IP68, keep out water and dust. This helps your system last longer and keeps your energy output steady.
Different types of pv solar connectors offer special features for durability. MC4 connectors use UV-resistant plastics and secure locking systems. T4 and Tyco SolarLok connectors use strong materials that resist heat, cold, and moisture. Radox connectors use flexible, halogen-free cables that stand up to tough environments. When you use these high-quality connectors, you protect your renewable energy systems from corrosion, rust, and physical damage.
Regular inspection and maintenance also help you spot problems early. Check your connectors for cracks, rust, or loose wires. Clean off dust and make sure every connection is tight. This simple care keeps your solar panel connectors working well for years. In harsh climates, like coastal or high-humidity areas, you need connectors with extra weather resistance. These features help your solar power systems deliver reliable, sustainable energy for a long time.
Callout: Durable pv solar connectors are key to efficient operation and long system life. They help you get the most from your investment in renewable energy systems.
Risks of Poor Connectors
Energy Loss and Overheating
You might think pv solar connectors are small parts, but they have a big impact on your solar power systems. When you use low-quality or poorly installed connectors, you create high resistance points in your system. This resistance causes energy loss and turns valuable electricity into unwanted heat. Over time, this heat builds up and leads to overheating. Safety audits show that substandard pv solar connectors often lack proper insulation and weather protection. These flaws make them prone to arcing, short circuits, and corrosion.
🔥 Alert: Overheating from bad pv solar connectors can start fires. In one case, a 1 MW rooftop project lost $558,450—58% of its yearly revenue—after a fire caused by overheated connectors.
You can see how common these problems are in the chart below:
Common issues with poor pv solar connectors include:
- Improper cable connections
- Bad crimps
- Incorrect assembly
- Hidden cracks and hot spots
These problems lower your solar power systems’ efficiency and increase your maintenance costs. Fires, toxic gas emissions, and even injuries have been linked to overheating and DC arc faults in large solar installations. You protect your solar power system by choosing pv solar connectors that meet international safety standards and by scheduling regular inspections.
System Failures
When you use the wrong pv solar connectors or mix brands, you risk system failures. Industry surveys show that 83% of solar projects have at least one connector-related issue. About 45% of sites need urgent repairs, and 4.3% face critical failures that can shut down part or all of the system. Most of these failures come from improper installation, bad crimps, or incompatible connectors.
| Issue Type | Frequency / Percentage | Consequences / Impact |
|---|---|---|
| Projects with ≥1 connector issue | 83% | Widespread connector-related problems in field installations |
| Sites requiring urgent maintenance | 45% | Major connector problems causing increased downtime and urgent repair needs |
| Critical connector failures | 4.3% | Failures requiring partial or full system shutdowns, posing safety and operational risks |
| Root cause | Improper installation | Primary preventable cause leading to failures |
| Financial impact example | 58% of annual revenue | Loss in a commercial solar portfolio due to connector failure and remediation costs |
| Safety hazards | Fires, overheating, arcing | Result from poor contact, bad crimps, and incorrect connections, risking equipment and personnel safety |
You also face safety hazards like electrical shocks, arcing, and water damage. Regulatory agencies report that poor grounding, cross-mated connectors, and bad terminations are common. These issues can cause fires, electrical faults, and even injuries. If you want your pv solar connectors to last, you must avoid shortcuts during installation and always use compatible, high-quality connectors.
Tip: Investing in certified pv solar connectors reduces failures, protects your investment, and keeps your solar power systems running safely for years.
Best Practices for Solar Panel Installations
Choosing the Right Connectors
You want your solar panel installations to last and perform well. Start by matching pv solar connectors to the wire size (AWG) for a proper fit. Always check that the connector’s voltage and current ratings meet your solar energy systems’ needs. For outdoor solar installations, choose connectors with waterproof ratings of IP67 or higher. Select connectors certified by UL, TUV, or IEC. These certifications show that the connectors are safe and reliable for renewable energy systems.
Use connectors from the same brand or make sure they are fully compatible. Mixing brands can cause connection failures in your renewable energy systems. Avoid cheap connectors that may overheat or break. Premium connectors use strong materials like copper or silver-plated copper for good electricity flow. Insulating parts use polycarbonate or polyamide for heat resistance. Seals made from EPDM rubber keep out water and UV rays. Stainless steel in the locking mechanism prevents rust. These features help your pv solar connectors work well in all renewable environments.
Tip: Always pick genuine connectors with a robust locking mechanism. This prevents accidental disconnections, especially in outdoor renewable solar panel installations.
Installation and Maintenance Tips
You can prevent most problems in solar panel installations by following good installation and maintenance steps. Plan your system layout carefully. Place inverters and combiner boxes close to the panels to reduce wire length and energy loss. Use the correct wire gauge for your pv solar connectors. This keeps your renewable energy systems safe and efficient.
Follow these steps for safe and reliable solar panel installations:
- Inspect all connectors for damage or corrosion before use.
- Use the right tools and follow the manufacturer’s instructions for installation.
- Disconnect power before working on connectors in your solar energy systems.
- Wear personal protective equipment like insulated gloves.
- Secure and insulate all wire connections to prevent resistance and voltage drops.
- Ground your renewable energy systems as required by local codes.
- Document all installation and maintenance activities for easy troubleshooting.
Regular inspection is key. Check and clean your pv solar connectors at least once or twice a year. In harsh environments, inspect every three to six months. Look for loose wires, discoloration, or signs of heat. Replace damaged connectors with genuine connectors right away. Standardized connectors make it easier to spot and fix problems in renewable solar panel installations. This keeps your solar energy systems running safely and smoothly.
🛠️ Alert: Most mistakes in solar panel installations come from using the wrong wire gauge, ignoring voltage drop, or skipping regular inspections. Avoid these errors to protect your renewable energy systems.
You play a key role in the success of solar panel installations. Connectors may seem small, but they protect your renewable energy systems and keep your solar panel installations safe. Industry studies show that quality connectors help your solar panel installations last over 25 years, even in harsh climates. You should always use certified connectors and follow best practices for solar panel installations. Schedule regular inspections for your renewable solar panel installations and keep records to support warranties. When you choose the right connectors, you help your renewable solar panel installations deliver clean and sustainable energy. You also lower costs and support sustainability. By making connectors a top priority in your solar panel installations, you build strong renewable energy systems that provide sustainable energy for years.
