How to explore the versatility of slide switches in modern electronics

Slide switches play a key role in modern electronics, letting you control circuits with a simple motion. You find them in many everyday devices, from remote controls to IoT gadgets. Manufacturers now create ultra-small slide switch designs that fit into smartphones and wearables, meeting the demand for compact products.

• Recent advances include:
  • Improved tactile feedback and better durability.
  • Surface-mount models for tight spaces.
  • Eco-friendly options and smart switches for automation.

Key Takeaways

• Slide switches control circuits with a simple sliding motion, making them easy to use in devices like toys and remote controls.
• Choosing the right slide switch involves considering size, power rating, and contact material to ensure reliability and performance.
• Ultra-small slide switches are perfect for compact devices like smartphones, providing reliable operation in tight spaces.
• Different types of slide switches, such as SPST and SPDT, offer various functionalities for controlling one or two circuits.
• Regular maintenance, like cleaning, can help prevent common issues with slide switches, ensuring they work effectively over time.

Slide Switch Basics

What Is a Slide Switch

A slide switch is a small device that lets you control the flow of electricity in a circuit by moving a handle back and forth. You often see these switches in toys, flashlights, and remote controls. They stand out because they are easy to use and very reliable. When you move the handle, you change the position of metal contacts inside the switch. This simple action turns a device on or off.

You can find slide switches in many shapes and sizes. Most have a plastic handle and a metal shell. The table below shows the main parts and materials used in a typical slide switch:

Slide switches are popular because they last a long time and cost less than other types of switches. You can use them in many different devices, from simple toys to complex machines.

How Slide Switches Work

You might wonder how slide switches work inside. When you move the slider, a metal contact slides over fixed contacts. This action either connects or disconnects the circuit. The switch uses a self-wiping motion, which helps keep the contacts clean and working well.

Here is a quick look at the main parts and their jobs:

• A slide switch uses a sliding motion to move between ON and OFF.
• The slider controls the flow of current by engaging metal contacts.
• Each time you move the switch, the contacts clean themselves for better performance.

Slide switches offer a simple on/off operation. You can trust them to work well for a long time, even if you use them often. Their design makes them a smart choice for many electronic projects.

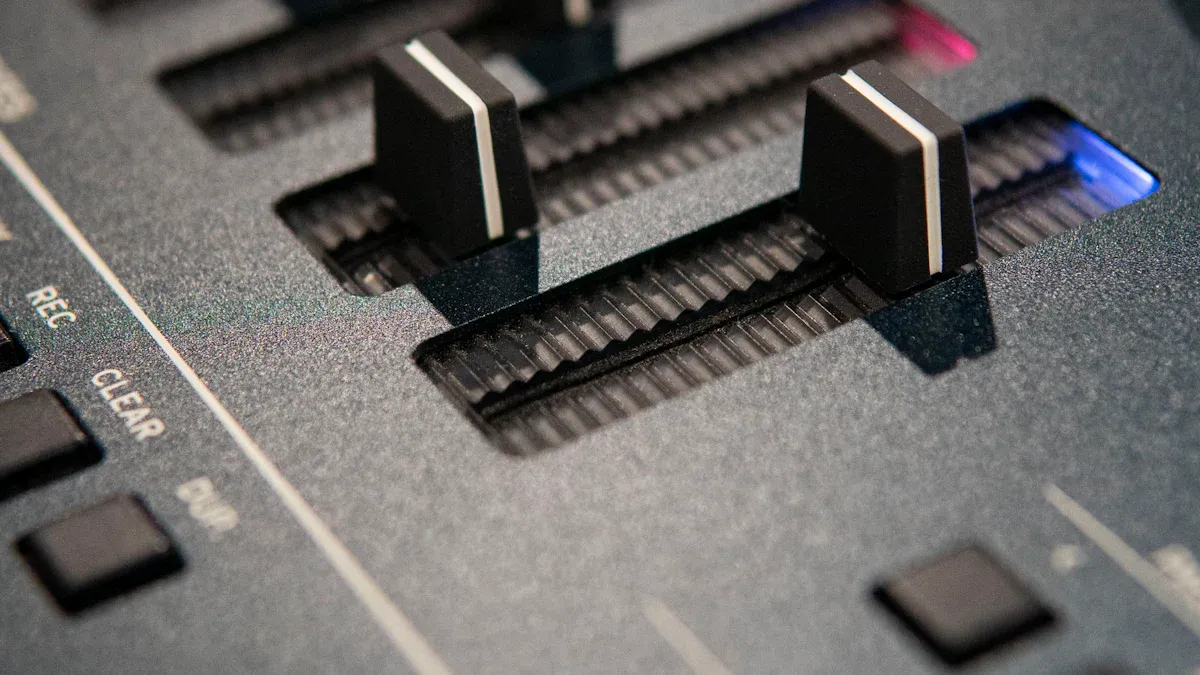

Types of Slide Switches

When you explore the world of electronics, you discover many types of slide switches. Each type offers unique features that help you control circuits in different ways. You can choose the best slide switch for your project by understanding how these switches work.

Single Pole and Double Pole

You often see single pole and double pole slide switches in everyday devices. These switches let you control one or two circuits at a time. You use single pole slide switches when you want to manage a single circuit. They work well in low voltage settings, such as lighting or small appliances. Their simple design makes them easy to use in places like hallway or bedroom light switches.

Tip: If you need to control two separate circuits, double pole slide switches give you more flexibility. You can turn two devices on or off at the same time.

Here are some scenarios where single pole slide switches are preferred:

• You want to control a single circuit.
• You work with lower voltage applications like lamps or small gadgets.
• You need a simple switch for everyday use.

Double pole slide switches help you manage more complex setups. You can use them in devices that need to switch two circuits together.

Throw Options

You find several throw options when you look at types of slide switches. The throw describes how many positions the switch can connect. This feature affects how you design your circuit.

You use SPDT switches when you want to choose between two options, such as reversing the direction of a motor. SPST switches give you simple on-off control. DPDT switches let you handle more advanced tasks, but they can make your design more complicated.

• SPDT switches help you alternate between two power sources.
• SPST switches make basic on-off control easy.
• DPDT switches allow you to manage two circuits, but you need to plan your design carefully.

Ultra-Small and Compact Types

Modern electronics often need tiny components. Ultra-small and compact slide switches fit into devices with limited space. You see these types of slide switches in smartphones, wearables, and other high-density products.

You benefit from ultra-small slide switches because they save space and offer reliable performance. These switches use a detent mechanism, which gives you a clear feel when you move the switch. The twin sliding contact keeps the switch clean and working well. Insert-molded terminals protect the switch from dust and dirt. Heat-resistant resin helps the switch survive high temperatures during soldering.

When you choose types of slide switches for your project, consider the size and reliability you need. Ultra-small slide switches work best in compact devices, while standard-sized models suit larger products.

Best Slide Switch Selection

Choosing the best slide switch for your project means looking at several important factors. You want your switch to work well, last a long time, and fit your device. Here are the main things you should check before making your choice.

Size and Power Rating

You need to match the size and power rating of your slide switch to your application. If you pick a switch that is too small or not strong enough, it may fail or wear out quickly. Here are some key points to consider:

1. Think about how often you will use the switch. If you plan to move it many times, you need a switch with a long operational lifespan.
2. Check if the switch will face mechanical stress or extreme temperatures. These conditions can affect how reliable your switch will be.
3. Look at the environment. If there is a risk of dust or water getting inside, choose a switch with a good IP rating to protect it.
4. Make sure the electrical ratings match your circuit. The voltage and current must not exceed what the switch can handle.

Tip: Always check the datasheet for the power switching capabilities of your slide switch. This helps you avoid problems in your circuit design with slide switches.

Contact Plating and Durability

The material used for contact plating in a slide switch affects both how well it conducts electricity and how long it lasts. Silver is the most conductive metal, so it works well when you need low contact resistance. Copper is good for high-current uses. Nickel is less conductive but stands up well to wear and tear, making it a good choice for tough environments.

Gold-plated contacts resist oxidation, so they work best in places with high humidity or low-level signals. Silver contacts handle higher voltages and currents but can tarnish over time. Nickel plating gives you extra mechanical durability and corrosion resistance.

• Gold-plated contacts are best for low-level signals and places where oxidation is a problem.
• Silver contacts work well for high-load uses, especially when oxidation can be cleared by the switch's movement.
• Nickel plating is a smart pick for switches that need to last in rough conditions.

The lifespan of a slide switch also depends on the contact material. Gold-plated contacts can last from 10,000 to 100,000 actuation cycles. Silver or copper alloy contacts usually last from 1,000 to 10,000 cycles. If you need a switch that will be used many times, gold plating is often the best choice.

Travel and Actuation Force

Travel is the distance the slider moves from one position to another. Actuation force is how much pressure you need to move the slider. Both of these features affect how the switch feels and how easy it is to use.

If you want a switch that gives clear feedback, choose one with a detent mechanism. This makes a small "click" when you move the slider, so you know it has changed position. For devices that need to be very compact, look for switches with short travel and low actuation force. This makes them easier to fit into small spaces and more comfortable to use.

Note: If your device will be used by children or people with limited hand strength, pick a slide switch with low actuation force.

Practical Tips for Choosing the Best Slide Switch

• Always match the switch size and power rating to your device's needs.
• Pick the right contact plating for your environment and usage.
• Test the travel and actuation force to make sure it feels right for your users.
• Think about how often the switch will be used and choose a model with a suitable lifespan.
• For circuit design with slide switches, plan for both electrical and mechanical needs.

By following these tips, you can select the best slide switch for your project. You will get reliable performance and a better user experience.

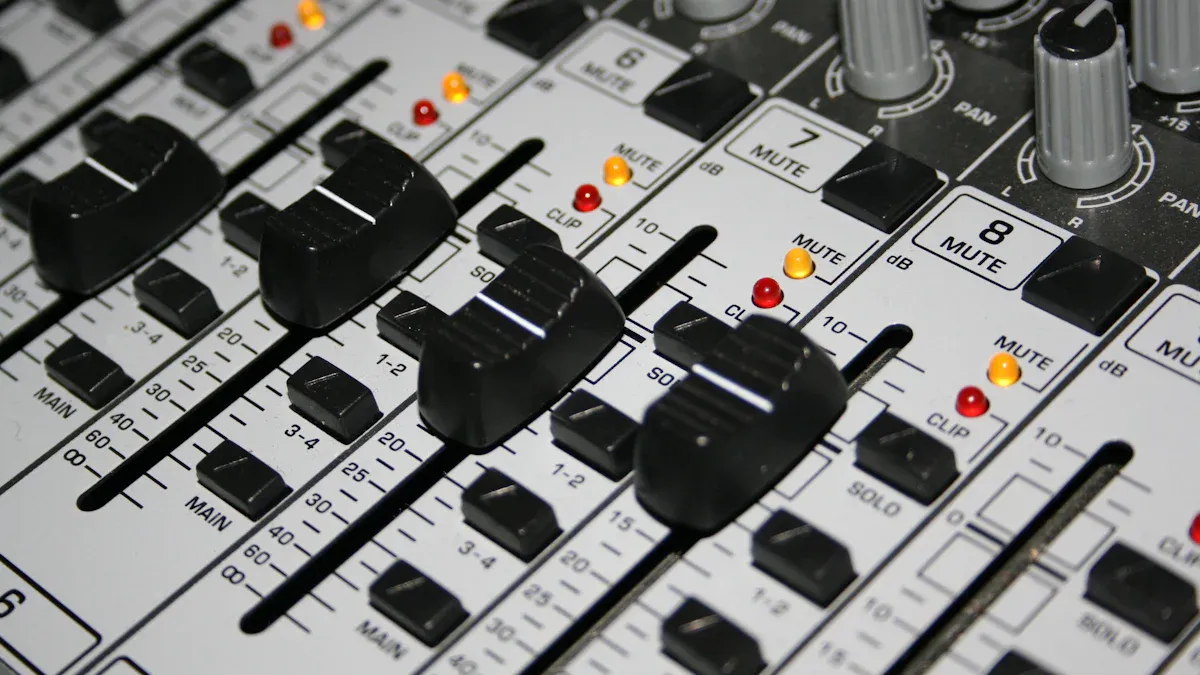

Applications of Slide Switches

Consumer Electronics

You see the applications of slide switches everywhere in consumer electronics. These switches help you control devices with a simple motion. You use a slide switch to turn on a flashlight, select a radio band, or power up a small tool. Many DIY electronics projects rely on slide switches for basic ON/OFF control. You also find them in computer peripherals, like keyboards, where you toggle features. Slide switches give you a clear visual indication of the device’s state, so you always know if something is on or off. Their compact size fits well in portable items, such as handheld meters and battery chargers. The typical electrical ratings for these switches include up to 1000 mA current and up to 125 Vdc voltage, making them suitable for embedded systems and small power circuits.

Tip: Slide switches improve user experience by providing tactile feedback and a visible state, which helps you interact with devices more easily.

• Common applications:
  • Flashlights
  • Radios
  • DIY projects
  • Small appliances
  • Computer peripherals

Healthcare Devices

You find the applications of slide switches in many healthcare devices. These switches play a key role in safety and reliability. Slide switches in medical equipment often feature position locks to prevent accidental changes. Their user-friendly design reduces the risk of mistakes, which is important in life-saving situations. The table below shows how slide switches support healthcare applications:

You benefit from these features when you use medical monitors, diagnostic tools, or portable healthcare devices.

Industrial and Automotive

You encounter the applications of slide switches in industrial and automotive systems. In factories, slide switches control machines and automation panels. These switches must be durable and precise. In vehicles, slide switches manage basic controls and advanced electronics. The automotive industry demands high-performance switches because cars now use more complex electronics. Manufacturers design slide switches to withstand vibration, temperature extremes, and mechanical stress. Features like anti-vibration structures, lubricating coatings, and environmental adaptability help these switches last longer in tough conditions.

• Industrial applications:

  • Control panels
  • Test equipment
  • Automation systems

• Automotive applications:

  • Vehicle controls
  • Electric and autonomous systems

Miniaturization and tactile feedback are important in all these sectors. You need compact switches that fit into small spaces and provide a clear feel when you use them. This makes slide switches a smart choice for modern electronic devices.

Troubleshooting and Limitations

Common Issues

You may notice that slide switches sometimes stop working as expected. Regular use can wear out mechanical parts, especially if you use the switch many times each day. Dust and debris often collect inside the switch, making it feel gritty or causing it to stick. If you use your device outdoors or in a factory, these problems can get worse. Keeping the switch clean helps it work better.

Environmental factors like moisture and dust can also cause trouble. Dust can block the sliding mechanism and contacts, while moisture can damage the electrical parts. If you see your switch acting up, try cleaning and lubricating the moving parts. You can check connections and wires to make sure everything is tight. If you have trouble with intermittent connectivity, hold the switch while moving the slider to see if it unlocks properly. Sometimes, you need to inspect door switches or bypass them to find the source of the problem.

Here is a table showing the most common issues:

Tip: When testing and troubleshooting slide switches, always check for ground problems or solenoid failures if multiple switches do not work. Inspect all connections for loose wires.

Current Capacity and Frequency Limits

You need to pay close attention to the current rating of your slide switch. Most slide switches handle small currents, usually less than 1 amp. These switches work best in battery-powered devices and small gadgets where saving energy and space matters. If you use the switch in a circuit that needs more current, you risk overheating and damaging the switch.

Exceeding the rated current or switching frequency can cause serious problems. Too much current may lead to contact welding, arcing, or even fire hazards. The plastic parts can melt or catch fire if they get too hot. This can create dangerous situations, so always check the specifications before using a switch in your project.

When testing and troubleshooting slide switches, make sure you do not exceed the recommended limits. The physical design of these switches supports basic automation and user configuration in embedded hardware, but only within safe operating ranges.

Note: Always match the current rating of your switch to your device’s needs. This helps prevent failures and keeps your electronics safe.

---

You discover slide switches in many devices, from toys to medical equipment. The table below shows where you might use them and why they work well:

Slide switches offer compact size, durability, and easy operation. When you choose a switch, think about these factors:

• Operational lifespan
• Mechanical stresses
• Ingress protection
• Electrical parameters

Try different types in your next project. Understanding these features helps you build reliable and efficient electronics.

FAQ

What is the main use of a slide switch?

You use a slide switch to turn devices on or off. You move the slider to change the flow of electricity. Slide switches help you control circuits in toys, flashlights, and small gadgets.

How do you choose the right slide switch for your project?

You check the size, power rating, and contact material. You test the travel and actuation force. You match the switch to your device’s needs.

Tip: Always read the datasheet before buying a slide switch.

Can slide switches handle high currents?

You should not use slide switches for high currents. Most slide switches work best with small currents, usually less than 1 amp. Using them for high currents can damage the switch.

Why do slide switches sometimes stop working?

You may see problems if dust gets inside or if the contacts wear out. Frequent use can also cause mechanical failure. Cleaning and checking connections helps keep your switch working well.

• Dust and dirt block movement.
• Contacts wear out over time.
• Loose wires cause poor connections.
