Stepwise Instructions for Testing a Capacitor on a Multimeter

To learn how to check capacitor on multimeter, follow clear steps to ensure safety and accurate results. Always keep in mind that temperature impacts how long a capacitor functions, so knowing how to check capacitor on multimeter regularly is important.

• High temperatures can shorten capacitor life, making it essential to know how to check capacitor on multimeter.
• Less intense use gives capacitors a longer lifespan, but it's still wise to understand how to check capacitor on multimeter for ongoing reliability.

Key Takeaways

• Always discharge a capacitor before testing to avoid electric shock. Use a resistor or insulated screwdriver to safely discharge it.
• Gather essential tools like a digital multimeter, insulated screwdriver, and safety gear before starting your tests. This preparation ensures safety and efficiency.
• Use capacitance mode on your multimeter for accurate readings. Compare the displayed value to the capacitor's rated value to determine if it is functioning properly.

Safety

Discharge Capacitor

Before you test a capacitor, you must discharge it. A charged capacitor can hold electricity even after you turn off the power. If you touch the terminals, you might get a shock. You can use a resistor or a screwdriver with an insulated handle to discharge the capacitor. Hold the tool across the terminals for a few seconds. This step helps you avoid injury and keeps your multimeter safe.

Tip: Always check that the capacitor is fully discharged before you start testing. You can use a voltage setting on your multimeter to confirm there is no charge left.

Safety Precautions

You need to follow safety rules when working with capacitors, especially high-voltage ones. Here are some important tips:

1. Wear rubber gloves to protect your hands.
2. Use safety goggles to shield your eyes.
3. Work in a dry area to prevent electric shock.
4. Never touch the terminals with bare hands.
5. Double-check that the capacitor is disconnected from any power source.

High-voltage capacitors can be dangerous. You should treat every capacitor as if it is charged until you test it. If you feel unsure, ask an adult or a professional for help.

Preparation

Tools Needed

Before you start testing a capacitor, gather all the tools you need. Having everything ready helps you work safely and quickly. Here is a list of what you should have:

• Digital multimeter (with capacitance and resistance modes)
• Insulated screwdriver (for discharging the capacitor)
• Resistor (optional, for safer discharge)
• Rubber gloves and safety goggles
• Notebook or phone (to record your readings)
• Oscilloscope (optional, for advanced testing)

Tip: Make sure your multimeter has fresh batteries. A weak battery can give you false readings.

Identify Terminals

You need to know which terminal is positive and which is negative before testing, especially for polarized capacitors. Here is a step-by-step way to identify the terminals using your multimeter:

1. Discharge the capacitor. Always make sure the capacitor is fully discharged before you touch it.
2. Set your multimeter to capacitance mode (look for the −| |− symbol).
3. Connect the leads. Attach the red (positive) lead to one terminal and the black (negative) lead to the other.
4. Read the display. If the reading matches the capacitor’s rated value, the red lead is on the positive terminal.
5. Switch the leads. If the reading drops or shows zero, you have reversed the polarity.

You can also use resistance mode. When you connect the leads, the resistance should start low and rise if you have the correct polarity. If the resistance acts strangely, try switching the leads.

Note: Some capacitors, like ceramic types, do not have polarity. You can connect the leads either way for those.

How to Check Capacitor on Multimeter

Using Capacitance Mode

You can use the capacitance mode on your multimeter to get a direct reading of the capacitor’s value. This method gives you the most accurate result. Follow these steps to learn how to check capacitor on multimeter using capacitance mode:

1. Set the Multimeter
   Turn the dial on your digital multimeter to the capacitance setting. Look for a symbol that looks like two parallel lines (−| |−).

2. Connect the Leads
   Attach the red lead to the positive terminal and the black lead to the negative terminal. If you test a non-polarized capacitor, you can connect the leads either way.

3. Read the Display
   Wait a few seconds for the reading to stabilize. The screen will show the capacitance value in microfarads (µF), nanofarads (nF), or picofarads (pF).

4. Compare the Value
   Check the value on the display against the rating printed on the capacitor. If the value is close to the rated value, the capacitor works well. If the value is much lower or shows zero, the capacitor may be faulty.

Tip: If you test a dual capacitor, you must check each section separately. Dual capacitors have three terminals: a common, a fan, and a compressor. Test between the common and each of the other terminals.

Using Resistance Mode

If your multimeter does not have a capacitance mode, you can still test the capacitor using resistance mode (ohmmeter setting). This method helps you find shorted or open capacitors. Here is how to check capacitor on multimeter using resistance mode:

1. Set the Multimeter
   Turn the dial to the highest resistance range (Ω).

2. Connect the Leads
   Touch the red lead to one terminal and the black lead to the other. Watch the display.

3. Observe the Reading
   A good capacitor will show a low resistance at first, then the value will rise and eventually show “OL” (over limit) or a very high number. This means the capacitor is charging.

4. Check for Faults
   If the reading stays at zero, the capacitor is shorted. If the reading stays at “OL” or does not move, the capacitor is open.

Note: For dual capacitors, repeat the test for each section by moving the leads to the correct terminals.

Example Table: Resistance Mode Results

You now know how to check capacitor on multimeter using both capacitance and resistance modes. These steps help you find out if your capacitor works or needs to be replaced. Always test each section if you have a dual capacitor.

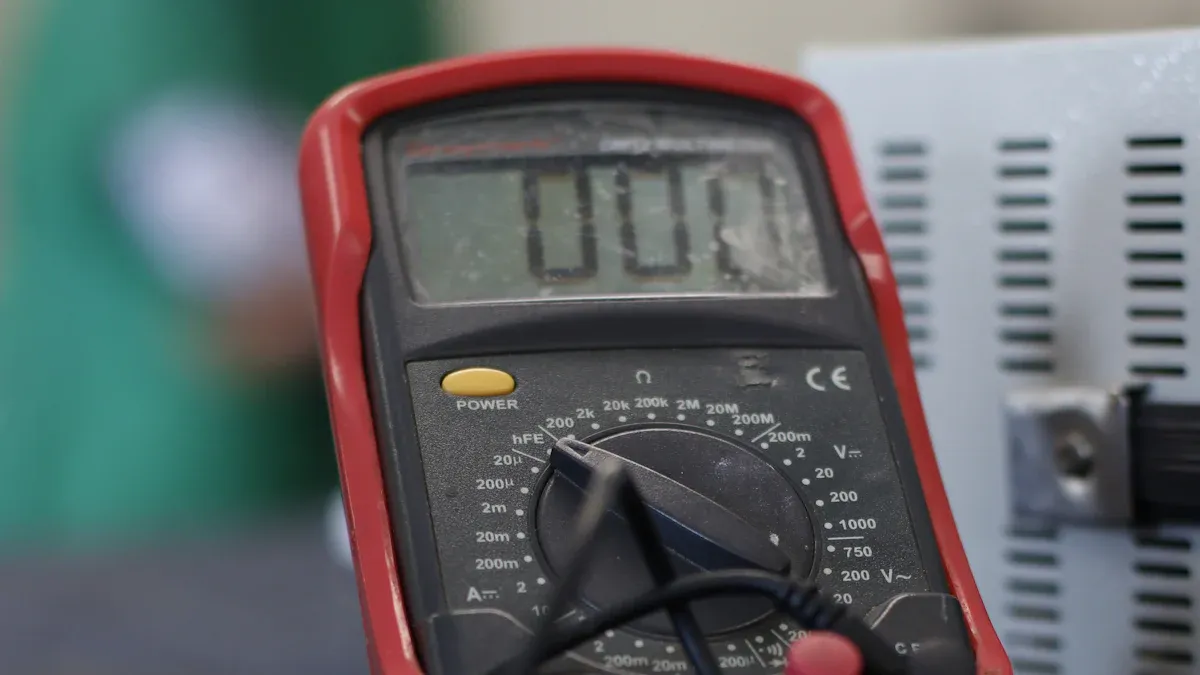

Measure Capacitance

Read Display

When you test a capacitor, you need to read the display on your multimeter. The screen shows a number with a unit like microfarads (µF), nanofarads (nF), or picofarads (pF). You should wait a few seconds for the reading to settle. If the number jumps around, check your connections. Sometimes, dust or loose wires can cause problems.

Tip: If you see a very low number or zero, the capacitor may not work. Try cleaning the terminals and testing again.

You can use this simple checklist to help you read the display:

• Look for a steady number.
• Check the unit (µF, nF, or pF).
• Write down the value for later.

Compare to Rating

After you measure capacitance, you need to compare the result to the rating printed on the capacitor. The rating tells you what value the capacitor should have. You can find this number on the side of the part. If your reading matches the rating, the capacitor works well.

If the measured value is much lower than the rating, the capacitor may be faulty. If the value is higher, the part may have damage or age. Use this table to help you decide:

You should always use your multimeter to check both the display and the rating. This step helps you keep your electronics safe and working.

Using a Multimeter for Troubleshooting

Inconsistent Readings

When you start using a multimeter, you might notice that the numbers on the screen keep changing. This can make you feel unsure about your results. Inconsistent readings often happen for a few reasons. Sometimes, your testing equipment does not work right. You should always check your multimeter before you begin. If you see strange numbers, try to calibrate your device or use a different one.

Here is a table that shows common issues and how you can fix them:

Tip: Clean the capacitor leads and make sure your connections are tight. Loose wires can also cause problems when using a multimeter.

Signs of Faulty Capacitor

You can spot a bad capacitor by using a multimeter. Look for these signs:

• The reading stays at zero or does not move.
• The value jumps around and never settles.
• The number is much lower than the rating on the part.

If you see any of these signs while using a multimeter, the part may not work. You should always compare your results to the rating on the capacitor. If you feel unsure, test the part again or try using a multimeter on another capacitor.

When to Replace

You should replace a capacitor if you get the same bad result more than once. Using a multimeter helps you check this quickly. If the reading is always wrong, or if the part looks damaged, it is time for a new one. Do not keep using a multimeter on a part that shows signs of failure. A faulty capacitor can cause bigger problems in your device.

Remember, using a multimeter gives you a fast way to find out if you need a replacement. Always trust your results and keep your equipment in good shape.

---

You can test a capacitor with a multimeter by following clear steps and always putting safety first. Check for bulging, leakage, or crusty deposits.

• Electrolytic capacitors often leak or dry out.
• Film capacitors may fail from voltage issues.
• Supercapacitors need careful handling.
  Stay safe and enjoy your DIY electronics work!

FAQ

How do you know if a capacitor is bad without a multimeter?

Look for bulging, leaking, or crusty spots. If you see these signs, you should replace the capacitor.

Can you test a capacitor while it is still in the circuit?

No, you should remove at least one lead from the circuit. This step gives you accurate results.

What happens if you install a capacitor backward?

You may see the capacitor leak, bulge, or even explode. Always check the polarity before you connect it.
