A Beginner's Guide to Inductor Symbols

You want to understand the squiggly inductor symbol you see in a circuit diagram. This is a key step in learning how to read and interpret inductor symbols for electrical schematics. Each inductor symbol is a simple visual language.

This diagram tells you about an inductor's type and its job in a circuit. The inductor symbol explains the function of a specific inductor in its circuit. An inductor is a vital circuit component, and its inductor symbol shows how that inductor works within the entire circuit.

Key Takeaways

• An inductor symbol looks like a coil of wire. This shape shows how it works.
• The letter 'L' identifies inductors on circuit diagrams. This honors Heinrich Lenz.
• Different lines on the symbol show the core material. Solid lines mean iron, and dashed lines mean ferrite.
• An arrow through the symbol means you can change the inductor's value. This is a variable inductor.
• A circle around the symbol means the inductor is shielded. This stops it from causing interference.

UNDERSTANDING THE INDUCTOR SCHEMATIC SYMBOL

This section introduces the fundamental shape of the inductor schematic symbol. You will learn what the basic loops represent and why the letter 'L' is used to identify an inductor in circuit diagrams.

THE BASIC INDUCTOR

The most basic inductor symbol is easy to spot. It looks like a series of loops or arcs. This design directly represents the physical construction of an inductor, which is a coil of wire. Early electrical diagrams used literal drawings of coiled wires. Over time, these evolved into the simpler, standardized inductor symbol you see today.

This coiled shape is more than just a drawing; it illustrates the inductor's main job. An inductor uses its coil to create a magnetic field. This field helps the inductor oppose any sudden changes in the electrical current flowing through it. This property of resisting current change is called inductance.

Pro Tip: Learning how to draw an inductor symbol is simple! For the common American (ANSI) standard, you just draw a few connected bumps or arcs in a line, like ~~~~.

While the looped coil is universal, you might see slight variations. Different standards organizations have their own styles for the inductor symbol. Here are the two most common ones:

SCHEMATIC REFERENCE DESIGNATOR (L)

On a circuit diagram, every component gets a label so you can identify it. This label is called a reference designator. The official reference designator for an inductor is the letter L. You will see an 'L' next to every inductor symbol on a schematic, often followed by a number (like L1, L2, etc.) to tell them apart.

Why the letter 'L'? Engineers chose 'L' to honor the physicist Heinrich Lenz. He made important discoveries about electromagnetism. The choice also had a practical reason. The letter 'I' was already widely used to represent current, so 'L' was a clear and distinct choice for the inductor.

COMMON INDUCTOR SYMBOL TYPES

Now you know the basic inductor symbol. Let's explore how small changes to that symbol tell you about different types of inductors. The basic coil is just a starting point. Extra lines, arrows, and circles are visual clues that reveal important details about an inductor's construction and job. These symbols help you understand the specific inductor characteristics for various applications.

AIR-CORE

An air-core inductor symbol is the simplest of all. It is the same basic looped coil you learned about earlier. The key feature is what is missing: there are no extra lines or symbols around it. This emptiness tells you the coil is wound around a non-magnetic core, like plastic, ceramic, or simply air.

This type of inductor is perfect for high-frequency jobs. Because it has no magnetic core material, it avoids certain types of energy loss that can happen at high frequencies. This keeps the signal clean and efficient.

Air-Core Inductor Characteristics The absence of a core gives these types of inductors unique properties. You can see how they perform in the table below.

Common applications for air-core inductors include:

• RF Circuits: You find them in radio tuners, filters, and transmitters.
• Wireless Charging: They are essential for the transmitter and receiver coils in wireless power systems.
• Medical Devices: Their low interference makes them ideal for sensitive equipment like MRI scanners.

IRON-CORE

The iron-core inductor symbol adds two solid, parallel lines above the coil. Think of these lines as adding "muscle" to the inductor. They signify that the coil is wound around a core made of a ferromagnetic material like iron.

What does the iron core do? It concentrates the magnetic field, which dramatically increases the inductance. This allows an iron-core inductor to store much more energy than an air-core version of the same size. These inductor characteristics make it a great choice for low-frequency power applications.

Pro Tip: Iron cores are powerhouses for energy storage. They enable an inductor to handle higher current levels, making them perfect for power supplies and low-frequency filters. However, they are not ideal for very high-frequency applications because the iron itself can start to lose energy.

FERRITE-CORE

A ferrite-core inductor symbol looks very similar to an iron-core one, but with a key difference: the parallel lines are dashed, not solid (- - -). This distinction is important. It tells you the core is made of ferrite, which is a special type of ceramic magnetic material.

Ferrite is made from iron oxide mixed with other metals like manganese, zinc, or nickel. Engineers can change this "mix" to create different types of ferrite, each optimized for specific frequency ranges. The dashed lines on the inductor symbol represent this unique, non-metallic magnetic material. Ferrite cores provide high inductance like iron but perform much better at higher frequencies, making them extremely common in modern electronics. You will find these types of inductors in:

• Switch-mode power supplies (SMPS)
• High-frequency transformers
• EMI filters that block unwanted noise

VARIABLE

When you see an arrow drawn through the coil, you are looking at a variable inductor symbol. Sometimes the arrow points to the coil from above. Both versions mean the same thing: you can adjust its inductance.

Think of the arrow as a knob. It indicates that the inductor's value is not fixed. Mechanically, this is often achieved by moving a magnetic core in or out of the coil.

• Moving the core in increases inductance.
• Moving the core out decreases inductance.

This adjustability is useful in tuning circuits, such as in radio receivers or oscillators, where you need to fine-tune a frequency. The variable inductor symbol is a clear sign that a circuit requires calibration or user adjustment.

TAPPED

A tapped inductor symbol shows a line extending from the middle of the coil windings. This extra line is a "tap," or an additional electrical connection point.

This design gives you access to different inductance values from a single component. For example, you can use the connection points at the two ends of the inductor for the full inductance value. Or, you can use one end and the tap for a smaller inductance value. This makes the tapped inductor a versatile component for circuits that need multiple inductance options without adding more parts.

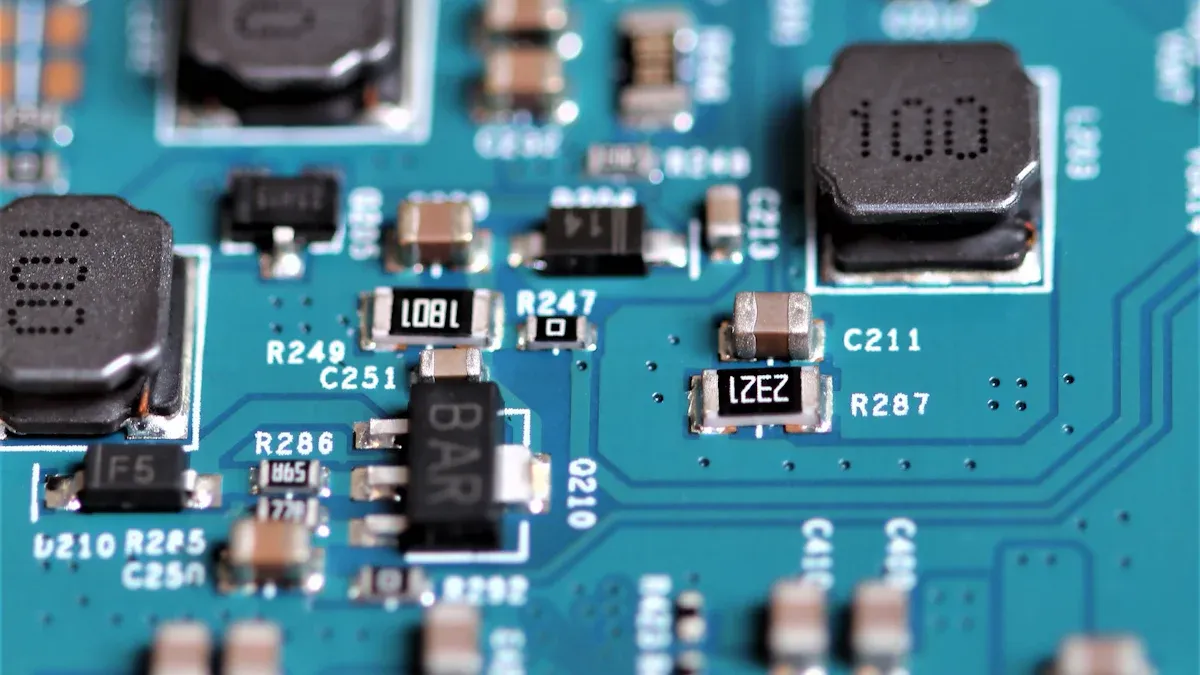

SHIELDED

A shielded inductor symbol features a circle drawn around the entire basic inductor symbol. This circle acts as a "protective bubble." It signifies that the physical inductor is enclosed in a magnetic shield, often made of a ferrite material or soft iron.

The purpose of this shield is to contain the inductor's magnetic field. This prevents the field from "leaking" out and causing electromagnetic interference (EMI) with other sensitive components on the circuit board. You will often see this inductor symbol in tightly packed electronic devices where preventing signal noise is critical.

OTHER IMPORTANT SYMBOLS

You have learned the common American (ANSI) symbols. Now, let's look at other important symbols you will see. Different parts of the world use slightly different diagrams. Knowing these variations helps you read any schematic. You will also find specialized symbols for unique applications.

INTERNATIONAL INDUCTOR SYMBOL

The most common alternative you will encounter is the international inductor symbol. This symbol is defined by the International Electrotechnical Commission (IEC). Instead of a looped coil, the IEC inductor symbol is a simple, filled-in rectangle.

Key Takeaway: A filled rectangle (■) on a schematic is the IEC standard for a basic inductor. It represents the exact same component as the looped coil symbol.

This design is more abstract. It represents the general function of an inductor rather than its physical appearance. You will see this inductor symbol frequently in European and Asian schematics. The core principles remain the same. Adding two solid lines above the rectangle means it is an iron-core inductor. Dashed lines mean it is a ferrite-core inductor.

Beyond the basic IEC symbol, you may also find symbols for a specialized inductor. These are common in specific engineering fields and have unique applications.

• Bifilar Inductor Symbol: This inductor symbol shows two coils wound together. It is used in transformers and for reducing electromagnetic interference (EMI). These applications require a two-wire link.
• Stepwise Variable Inductor Symbol: This symbol has switch-like icons on the coil. It means you can change the inductance in discrete steps. Its applications include tuning circuits where you need precise control.
• Continuous Variation Inductor Symbol: This inductor symbol uses an arrow to show that you can tune the inductance smoothly. RF circuits use this inductor for precise control, making it ideal for many high-frequency applications.

Understanding each unique inductor symbol is key to mastering schematics for all types of applications.

INDUCTOR SYMBOL QUICK REFERENCE

You have learned about many different inductor symbols. This section provides a simple chart to help you remember them all. You can use this as a quick guide whenever you read a schematic. Each inductor symbol gives you important clues about the component's job.

This table makes it easy to review each inductor symbol. You can quickly see the image, name, and meaning for every common inductor.

The basic inductor symbol looks like a coil. This shape shows you the physical structure of the inductor itself. The table below shows you how small additions to this basic symbol change its meaning. You will see symbols that distinguish between an air-core and an iron-core inductor, along with other important types.

SYMBOL IMAGE

SYMBOL NAME

WHAT IT MEANS

---

You now recognize the main inductor symbols. You can spot the basic inductor symbol, core lines on an inductor symbol, and the variable inductor symbol for a special inductor. Each inductor symbol provides critical data for a circuit.

Remember, an inductor symbol is not just a drawing. It tells you about the inductor and its job in the circuit.

The world of the inductor is growing, with new designs for a modern circuit. Understanding each inductor symbol is a huge step. You can now confidently read any circuit with an inductor.

FAQ

Why does the inductor symbol look like a coil? 🧐

The symbol directly represents an inductor's physical form: a coil of wire. This shape visually explains how an inductor works. It uses the coil to create a magnetic field and store energy.

What is the difference between solid and dashed lines on a core symbol?

Solid lines mean the inductor has an iron core for high inductance at low frequencies. Dashed lines (- - -) indicate a ferrite core. You use ferrite cores for better performance at higher frequencies.

Does the number of loops in the symbol change its meaning?

No, the exact number of loops does not matter. The looped shape itself is the symbol. You should focus on other details like core lines or arrows to understand the inductor's specific type.

Why do schematics use the letter 'L' for inductors?

You see the letter 'L' next to an inductor to honor physicist Heinrich Lenz. His work was crucial to understanding electromagnetism. 'L' is the official reference designator for an inductor on circuit diagrams.
