Exploring Fire-Safe Crimp Connectors for Safety Critical Systems

You need fire-safe crimp connectors when you manage safety critical systems. These systems often face harsh environments. Extreme temperatures, vibration, and moisture can damage connections. Reliable components help prevent failures. Compliance with strict standards protects people and equipment. Rugged designs and advanced features give you the confidence to trust your system.

Key Takeaways

• Choose hermetically sealed crimp connectors to protect your systems from moisture and dust. This enhances reliability in harsh environments.
• Use automated crimping methods for better consistency and lower failure rates. This ensures your connections remain secure and effective.
• Regularly maintain your connectors by cleaning and inspecting them. This prevents costly failures and keeps your safety critical systems running smoothly.

Crimp Connectors in Safety Critical Systems

Reliability and Safety

You rely on crimp connectors to keep your safety critical systems running. These connectors help you avoid failures that can put people and equipment at risk. When you use hermetically sealed connectors, you protect your system from moisture and dust. You also improve reliability in harsh environments.

Testing protocols make sure your connectors work as expected. You see tests for electrical integrity, temperature tolerance, mechanical stress, and shielding effectiveness. Here is a table that shows common testing parameters:

Failure rates for crimp connectors depend on the assembly method. Automated crimping gives you better consistency and lower defect rates than manual crimping. You can compare the numbers in this table:

Assembly and Maintenance

You need to assemble and maintain crimp connectors carefully. Common errors include using the wrong tools, failing to inspect connections, and inserting contacts improperly. Here are some mistakes you should avoid:

1. Incorrect crimping technique leading to unreliable connections.
2. Using inappropriate tools for crimping.
3. Failing to inspect crimped connections for quality.

You also see problems like mis-mating plugs, terminals not fully seated, and damage to locking lances. These issues can cause failures in rugged connectors and hermetically sealed connectors.

Regular maintenance keeps your system safe. You should clean and check your connectors often. The table below shows recommended intervals:

Tip: Always follow the manufacturer’s instructions for assembly and maintenance. This helps you avoid costly mistakes and keeps your system reliable.

Challenges in Harsh Environments

Temperature and Vibration

You face many risks when you use crimp connectors in harsh environments. Extreme temperatures can break down materials and cause connectors to fail. Vibration and shock can loosen connections, which leads to problems like intermittent signals or complete disconnections. You need hermetically sealed connectors to protect your system from these dangers. These connectors keep out dust and moisture, and they hold up under strong vibration.

Here are some common causes of connector failure in harsh environments:

• Extreme temperatures put stress on connector materials.
• Vibration and shock loosen connections.
• Wear and tear from repeated use damage contact surfaces.
• Chemical exposure breaks down connector parts.

You should choose environmentally sealed electrical connectors with strong ratings. Stainless steel materials and hermetic sealing help your connectors last longer. You can trust your system to work even when conditions get tough.

Moisture and Corrosion

Moisture and humidity can cause corrosion and short circuits. You need hermetically sealed connectors to keep water out. If you work near water or in wet places, you should look for connectors with high IP ratings. The table below shows common IP ratings and their uses:

Corrosion-resistant materials help your connectors survive in salty or chemical environments. Stainless steel with passivation protects against rust. Aluminum alloy with gold or cadmium plating resists salt spray and chemicals. These features keep your connectors working, even when exposed to harsh environments.

Tip: Always check the material and sealing features before you choose crimp connectors for your safety critical system.

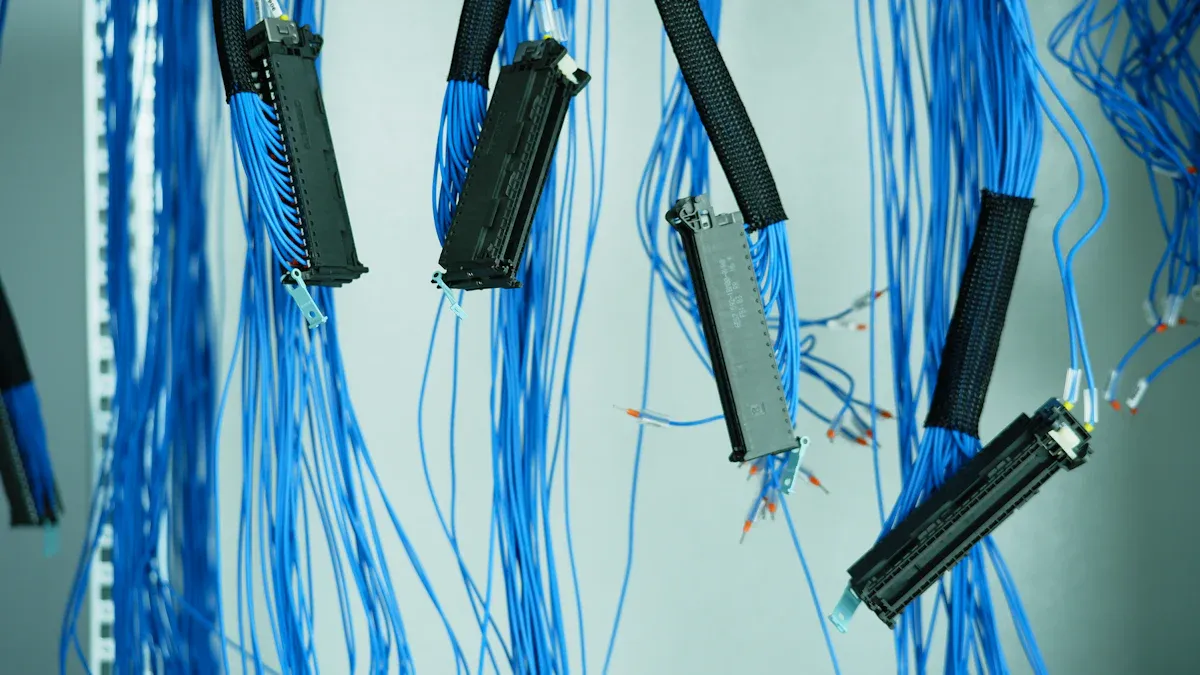

Features of Rugged Connectors

Environmental Sealing

You need rugged connectors that keep your safety critical systems protected from water, dust, and chemicals. Environmental sealing is the key feature that helps you achieve this protection. When you use hermetically sealed connectors, you block moisture and contaminants from entering your system. These connectors use watertight seals and sealing glands to prevent water and dust ingress. You can trust environmentally sealed electrical connectors to work in harsh environments, such as aerospace, military, and medical technology.

Many rugged connectors reach high IP ratings like IP67, IP68, and IP69K. These ratings mean your connectors can handle submersion, splashing, and even high-pressure water jets. You also get protection against sand and dust. Some connectors, like the Amphenol LTW Ceres Series and DEUTSCH DTS, offer superior sealing. They use robust metal latches and a secure locking mechanism to keep connections tight and safe.

Here is a table showing how hermetic sealing improves reliability:

You should look for connectors with stainless steel locking mechanisms and UV-resistant plastic housings. These features help your system last longer and resist damage. Some connectors even have protective caps for dust and water resistance when unmated. If you need to repair or assemble connectors, you can use common avionics hand tools like crimpers, nut drivers, and pin insertion tools. These tools help you maintain precision and consistency.

Tip: Always check for a secure locking mechanism when you install connectors. This helps prevent accidental disconnects and keeps your system safe.

Material Selection

You must choose high-quality materials for your connectors to ensure fire resistance and durability. Materials like stainless steel, aluminum alloy, and high-performance ceramics give you better protection against heat, corrosion, and mechanical stress. Hermetically sealed connectors often use flame-retardant plastics and metals that resist ignition and self-extinguish when exposed to heat. These materials also emit low smoke and toxicity, which is important for safety in critical environments.

Connectors like Amphenol PT use gold-plated, machined copper alloy contacts to prevent corrosion and improve electrical performance. You get a secure locking mechanism that holds up under vibration and shock. The operating temperature range for these connectors can go from -55°C to +125°C, so you know your system will work in extreme conditions.

Here is a table showing important certifications for rugged crimp connectors:

You should use standardized hand tools for assembly and repair. These tools help you achieve precision, consistency, and compliance with industry standards like MIL-SPEC, IPC, and SAE. The table below shows the benefits of using these tools:

When you select rugged connectors, always consider the material and sealing technology. You need connectors that resist fire, corrosion, and mechanical damage. Hermetically sealed connectors with high-quality materials and a secure locking mechanism give you the best protection for your safety critical systems.

---

You protect your safety critical systems when you choose fire-safe, rugged crimp connectors. Advanced features and strong materials help you face harsh conditions. See how proven connectors improve reliability:

• Crimp connectors last long and resist corrosion.
• Easy installation saves you time and money.
• Reliable connections reduce costly failures.

Always check for compliance and proven product solutions before you buy.

FAQ

What makes hermetically sealed connectors important for safety critical systems?

You use hermetically sealed connectors to keep moisture and dust out. These connectors help your system work safely in tough conditions.

How do harsh environment connectors protect against vibration?

You choose harsh environment connectors with strong locking mechanisms. These connectors stay secure and prevent loose connections when your system faces vibration.

Can you repair hermetically sealed connectors with standard tools?

You can use common hand tools for assembly and repair. These connectors support easy maintenance and help you keep your system reliable.
