    Essential Tips for Decoding Capacitor Symbols in Circuits

    avatar
    Z.W
    ·September 16, 2025
    ·17 min read
    Essential

    You can spot a capacitor symbol in circuit diagrams by looking for two parallel lines or a line with a curve, which shows the type of capacitor used. Recognizing these symbols helps you read circuits quickly and prevents mistakes. > Knowing how to identify capacitors lets you fix problems faster and build reliable electronics. When you focus on mastering capacitor codes, you make every project easier.

    Key Takeaways

    • Recognize capacitor symbols by their unique shapes. Polarized capacitors have one straight and one curved line, while non-polarized capacitors show two straight lines.
    • Always check for polarity markings on capacitors. Connecting polarized capacitors incorrectly can lead to circuit failure or damage.
    • Use a multimeter to test capacitors. Set it to capacitance mode to check if the capacitor works as expected.
    • Familiarize yourself with common capacitor codes and markings. This knowledge helps you select the right capacitor for your projects.
    • Pay attention to details in capacitor symbols. Small markings can provide crucial information about the capacitor's type and usage.

    Decoding Capacitor Symbols

    Quick Identification

    You can quickly spot capacitor symbols in circuit diagrams by looking for their unique shapes. Most capacitor symbols use two lines to show the plates. Non-polarized capacitors appear as two straight, parallel lines. Polarized types show one straight line and one curved line. This curved line marks the negative side. If you see a symbol with an arrow or a diagonal line crossing it, you are looking at a variable or trimmer capacitor. These extra marks tell you that you can adjust the value.

    Here is a table to help you recognize the most common capacitor symbols:

    Capacitor TypeVisual Characteristics
    Polarized Capacitor SymbolOne straight line for the positive plate and one curved line for the negative plate.
    Voltage-dependent Capacitor SymbolStandard capacitor symbols with extra markings like diagonal lines or annotations.
    Variable Capacitor SymbolStandard capacitor with an arrow or diagonal line indicating adjustability.
    Trimmer Capacitor SymbolVariation of the variable capacitor symbol with a diagonal arrow or line.
    Electrolytic Polarized CapacitorSame as polarized capacitors, indicating required polarization directions.

    Tip: Always check for arrows, curved lines, or extra markings. These details help you decipher capacitor symbols and avoid confusion.

    Key Features

    When you read circuit diagrams, you need to know what sets each capacitor symbol apart. The main features include the shape of the lines, the presence of arrows, and any polarity marks. Polarized capacitors use a straight line and a curved line or a plus sign to show the positive side. Non-polarized capacitors use two straight lines. You can connect non-polarized capacitors in any direction, but polarized ones must go in a specific way.

    Here is a quick comparison of the key features:

    FeaturePolarized CapacitorsNon-Polarized Capacitors
    SymbolOne straight line and a curved line or '+'Two straight, parallel lines
    Connection RequirementMust be connected in a specific directionCan be connected in any direction
    UsageUsed in circuits with a specific polarityUsed in circuits where current can go either way
    Capacitance Value DisplayOften includes capacitance valueOften includes capacitance value
    • Non-polarized capacitor symbols are simple and easy to spot.
    • Polarized capacitor symbols always show which side is positive.
    • Variable and trimmer capacitor symbols use arrows or diagonal lines.
    • Electrolytic capacitors require careful attention to polarity.

    You will find that learning these features makes it much easier to read and understand capacitor symbols. This skill helps you avoid mistakes and makes your work with capacitors more reliable.

    Importance of Understanding Capacitor Symbols

    Preventing Mistakes

    You need to understand the importance of understanding capacitor symbols before you start working with electronics. When you read a circuit diagram, you see many symbols. Each one tells you something important. If you mix up a capacitor symbol with another component, you might use the wrong part. This mistake can cause your project to fail or even damage your circuit.

    Knowing the difference between polarized and non-polarized capacitors helps you place them correctly. Polarized capacitors must go in a certain direction. If you put them in backward, they might not work or could even burst. Non-polarized capacitors do not have this risk, but you still need to choose the right value and type. The importance of understanding capacitor symbols also means you can spot the voltage rating and capacitance at a glance. This skill keeps your circuits safe and reliable.

    Tip: Always double-check the capacitor symbol in your circuit diagrams. This habit helps you avoid costly errors and keeps your electronics running smoothly.

    Better Troubleshooting

    When you face a problem in your circuit, the importance of understanding capacitor symbols becomes clear. You can quickly find the right capacitor and check if it matches the type, value, and polarity shown in the diagram. This step saves you time and helps you fix issues faster.

    You gain several advantages when you know how to read capacitor symbols:

    • You select the correct capacitor for each part of your circuit.
    • You place capacitors in the right direction, which keeps your project working well.
    • You read circuit diagrams with confidence and spot problems easily.
    • You get key information like type, capacitance, and voltage rating from the symbol itself.

    If you skip learning these symbols, you might spend hours searching for mistakes. With practice, you will spot errors quickly and repair your circuits with less effort.

    Purpose of Capacitor Symbols

    Schematic Representation

    You see the purpose of capacitor symbols every time you look at a circuit diagram. These symbols help you understand what each part does without seeing the real component. The capacitor symbol uses two parallel lines to show the plates inside a capacitor. Sometimes, you notice a curved line or a plus sign. This tells you if the capacitor is polarized.

    The purpose of capacitor symbols is to give you important information quickly. You do not need to open up a device or check the actual part. You can learn about the type, value, and polarity just by reading the diagram. This saves you time and helps you avoid mistakes.

    Tip: Always look for the small details in each capacitor symbol. These details tell you how to use the capacitor in your project.

    Communication in Electronics

    The purpose of capacitor symbols also includes making communication easier between engineers and technicians. When you use the same symbols, everyone understands the design. This helps you work with others and share ideas without confusion.

    Here is a table that shows how capacitor symbols help in electronics:

    AspectDescription
    PurposeShows where a capacitor goes in the circuit diagram.
    StandardizationGives a clear way for everyone to read and understand circuit designs.
    FunctionHelps you see how capacitors store and release electrical energy.

    You find that the symbol for a capacitor always has two parallel lines. For polarized capacitors, you might see a curved line or a plus sign. These symbols make it easy for you to find and check capacitors when you build or fix circuits. You can spot problems faster and know exactly what each part does.

    Common Capacitor Symbols

    Understanding common types of capacitor symbols helps you read circuit diagrams with confidence. Each symbol gives you clues about the capacitor’s function, polarity, and how you should connect it. Let’s look at the most important symbols you will see.

    Fixed Capacitor Symbol

    Fixed capacitor symbols show a basic capacitor that stores a set amount of electrical charge. You see two straight, parallel lines. These lines represent the plates inside the capacitor. Fixed capacitor symbols do not show any arrows or polarity marks. You use these capacitors in most general electronic circuits.

    Tip: If you see only two straight lines with no extra marks, you are looking at a fixed capacitor. This is the most basic capacitor symbol.

    Polarized Capacitor Symbol

    Polarized capacitor symbols tell you that the capacitor must be connected in a certain direction. You see one straight line and one curved line. The straight line marks the positive side, while the curved line shows the negative side. Sometimes, you also see a plus sign (+) near the straight line. Always check for these polarity indicators before placing the capacitor.

    • Look for a longer lead or a stripe on the actual capacitor body. These match the polarity shown in the symbol.
    • If you connect a polarized capacitor the wrong way, it can fail or even burst.

    Variable Capacitor Symbol

    Variable capacitor symbols show that you can adjust the capacitance. The symbol looks like a fixed capacitor but with a diagonal arrow running through it. This arrow means you can change the value.

    Here is a table to help you compare variable and fixed capacitor symbols:

    FeatureVariable CapacitorFixed Capacitor
    Symbol RepresentationTwo vertical lines with a diagonal arrowTwo vertical lines
    AdjustabilityYesNo
    UsageTuning circuits, adjustable applicationsGeneral applications
    • The arrow in the symbol always means adjustability.
    • You use variable capacitors in radios and tuning circuits.

    Electrolytic Capacitor Symbol

    Electrolytic capacitor symbols look similar to polarized capacitor symbols but always include clear polarity markings. You see two parallel lines. One line has a plus (+) sign for the positive terminal, and the other has a minus (-) sign for the negative terminal. This marking is very important. If you connect an electrolytic capacitor the wrong way, it can get damaged or stop working.

    Note: Always match the symbol’s polarity with the markings on the capacitor body. Many electrolytic capacitors have a stripe or a minus sign on the negative side.

    Bipolar Capacitor Symbol

    Bipolar capacitors do not have a fixed polarity. The symbol looks like non-polarized capacitor symbols, with two straight, parallel lines. You can connect these capacitors in any direction. Bipolar capacitors work well in circuits where the current changes direction, such as in filters or oscillators.

    AspectDescription
    Symbol RepresentationResembles a non-polar capacitor symbol and can be connected in any direction.
    Common ApplicationsUsed in oscillators, tuners, filters, and medical devices like MRI and NMR scanners.

    Surface Mount Capacitor Symbol

    Surface mount capacitors (SMD) use special symbols and markings. The symbol in a diagram often looks like a small rectangle or a variation of the fixed capacitor symbol. For smd capacitor identification, you need to look at the markings on the actual component. These markings can include numbers, letters, or color codes. SMD capacitor identification is important because these parts are small and often lack clear polarity marks.

    • SMD capacitor identification relies on unique codes printed on the body.
    • Some SMD capacitors use a stripe or dot to show polarity, especially for polarized types.

    Tip: Always check the manufacturer’s datasheet for smd capacitor identification if you are unsure about the markings.

    Specialized Types

    Some circuits use specialized capacitor symbols for less common types. These symbols help you spot unique features or uses.

    Capacitor TypeDistinguishing Features
    Supercapacitor (Ultracapacitor)Two parallel lines with a curved line; rapid energy storage and release; used in electric vehicles and renewable energy systems.
    Motor Run and Start CapacitorEnhances torque and performance in single-phase motors; critical selection based on capacitance and voltage.
    Feedthrough CapacitorReduces electromagnetic interference; blocks low-frequency transmissions; provides low-impedance paths for high-frequency signals.
    Light Emitting Capacitor (LEC)Utilizes electroluminescent polymers; emits light when current passes through; acts as ionic conductors and semiconductors.
    Silicon CapacitorUsed in tuning and RF circuits; reverse-biased p-n junction dielectrics; selection based on capacitance range and voltage rating.

    You may not see these specialized symbols every day, but knowing them helps you understand advanced circuit diagrams. Each symbol gives you clues about the capacitor’s special function.

    Remember: Always pay attention to the details in capacitor symbols. These details help you choose the right capacitor and avoid mistakes.

    Identifying Capacitor Types

    Visual Clues

    You can often identify a capacitor by looking at its shape and the way it appears in a circuit diagram. The most common capacitor symbols use two parallel lines. If you see a straight line and a curved line, you are looking at a polarized capacitor. Variable capacitors have an arrow across the symbol. Surface mount capacitors look like small rectangles on the board. You may also notice stripes or dots on the actual component. These marks help with identification, especially for polarity. Always check for these visual clues before you place or replace a capacitor.

    Tip: Use a magnifying glass to spot small marks or codes on tiny capacitors. This helps you avoid mistakes during identification.

    Labeling and Notation

    You will find that capacitors use different labeling systems to show their values and types. Larger capacitors often have their values printed directly on the case. Smaller ones, like surface mount capacitors, use codes. These codes usually have three characters. The first two are numbers, and the third shows how many zeros to add. Some older capacitors use color bands, similar to resistors. You may also see tolerance codes that tell you how much the value can change.

    Here is a table to help you understand the main marking types:

    Marking TypeDescription
    Non-coded markingsDirectly marked parameters on the case, suitable for larger capacitors.
    Abbreviated capacitor marking codesUses three characters; first two are significant figures, third is a multiplier, often used for surface mount capacitors.
    Colour codeOlder capacitors may use this method, though it's less common today.
    Tolerance codesUtilizes the EIA scheme, similar to resistors, indicating the tolerance of the capacitor.

    You should always match the label or code with the capacitor symbol in your circuit diagram. This step makes identification much easier and helps you choose the right part.

    Common Errors

    You might make mistakes if you do not pay close attention to capacitor symbols and markings. One common error is mixing up polarized and non-polarized capacitors. Placing a polarized capacitor in the wrong direction can damage your circuit. Another mistake is reading the marking code incorrectly. For example, you might confuse the multiplier or miss a tolerance code. Sometimes, you may select a capacitor with the wrong value because you did not check the label carefully.

    • Double-check the capacitor symbol and the markings before installation.
    • Use a reference chart if you are unsure about a code or color band.
    • Always confirm the identification with both the diagram and the physical component.

    Remember: Careful identification of capacitors prevents costly errors and keeps your projects safe.

    Capacitor Codes and Markings

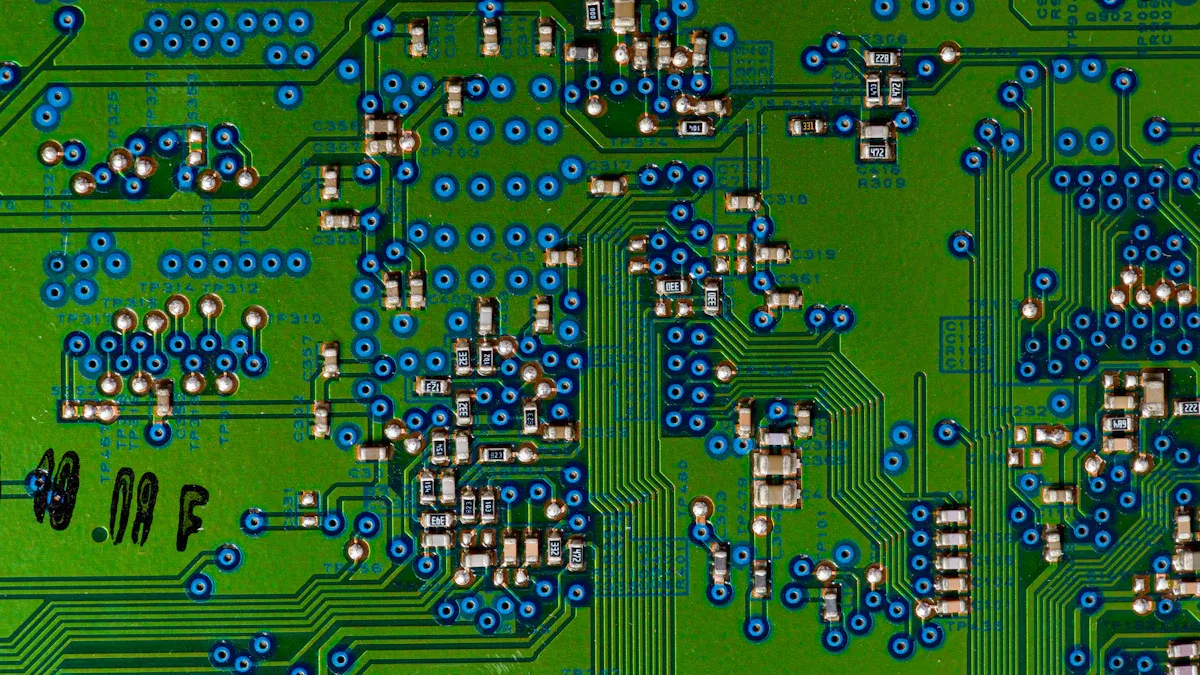

    Capacitor

    Reading Codes

    You often see different capacitor marking codes on the body of a capacitor. These codes help you find the type, value, and voltage rating. To start decoding capacitor codes, follow these steps:

    1. Look for numbers, letters, or color bands on the capacitor.
    2. Figure out the coding system. You might see numeric codes like 104, alphanumeric codes like 473K, color bands, or SMD codes.
    3. Use the code to find the capacitance value. For example, 104 means 100,000 pF, and 473K means 47,000 pF with a tolerance.
    4. Check for voltage ratings and tolerance. These are often printed next to the value.
    5. If you cannot find a label, use a meter for capacitor value lookup.

    Here is a table to help you with capacitor value lookup and decoding capacitor codes:

    Coding System TypeDescription
    Numeric Codes104, 223, etc.
    Alphanumeric Codes473K, 104M, etc.
    Capacitor Color CodesBands like resistors, less common today
    SMD Capacitor CodesSmall numbers or no label, use lookup chart

    You can use eia capacitor codes for quick capacitor value lookup. These codes follow a standard, making decoding capacitor codes easier. If you want to know how to read capacitor markings, always match the code to a capacitor value lookup chart.

    Markings for Polarity and Value

    When you check a capacitor, you need to spot the polarity and value markings. Electrolytic capacitors have clear marks for both. You will see a stripe or minus sign on the negative lead. The positive lead is longer. The value and voltage rating are printed on the body, making capacitor value lookup simple.

    • Electrolytic capacitors show a stripe for the negative side.
    • The positive lead is longer than the negative one.
    • You can read the value and voltage rating directly from the body.

    Always connect the positive lead to the higher voltage. If you install polarized capacitors backward, they can fail or even explode.

    For eia capacitor codes, you will see three digits. The first two are the value, and the third is the multiplier. For example, 104 means 10 followed by four zeros (100,000 pF). This system helps with decoding complex markings and makes capacitor value lookup fast.

    You will find that capacitor codes and markings make it easy to choose the right capacitor. When you understand capacitor symbols and capacitor marking codes, you avoid mistakes and keep your circuits safe.

    Standards for Capacitor Symbols

    When you read circuit diagrams, you may notice that not all capacitor symbols look the same. This happens because different standards for capacitor symbols exist around the world. These standards help engineers and students like you understand and build circuits, no matter where you live.

    IEC Symbols

    The International Electrotechnical Commission (IEC) sets one of the most common standards for capacitor symbols. You will often see these symbols in textbooks and modern schematics. The IEC capacitor symbol uses two straight, parallel lines for non-polarized capacitors. For polarized types, the symbol shows one straight line and one curved line. This design helps you quickly spot the type of capacitor you need.

    Tip: If you see a curved line in the symbol, you are looking at a polarized capacitor in the IEC system.

    ANSI Symbols

    The American National Standards Institute (ANSI) uses a slightly different style. In ANSI diagrams, the capacitor symbol for non-polarized capacitors looks like two straight lines, but sometimes one line is shorter. For polarized capacitors, you may see a plus sign (+) near one plate. This sign shows you which side is positive. Many older American circuit diagrams use ANSI symbols, so knowing both styles helps you read more schematics.

    StandardNon-Polarized SymbolPolarized Symbol
    IECTwo straight linesStraight + curved line
    ANSITwo lines (one shorter)Line with plus sign (+)

    Custom Symbols

    Some companies or designers create custom symbols for special types of capacitors. You might see extra marks, letters, or shapes added to the basic capacitor symbol. These custom symbols can show special features, like variable capacitance or safety ratings. Always check the legend or notes on the diagram if you find a symbol you do not recognize.

    Note: Different standards for capacitor symbols can make schematics look confusing. Always compare the symbol with the parts list or ask for help if you are unsure.

    Understanding the different standards for capacitor symbols helps you read any circuit diagram with confidence. You will know what each capacitor does and how to connect it, no matter which standard the designer used.

    Testing Capacitor Symbols

    Using a Multimeter

    You can test a capacitor in a circuit with a digital multimeter. This tool helps you check if the part works as it should. Start by finding the correct capacitor symbol in your circuit diagram. This step tells you which type of capacitor you need to test and if you should watch for polarity.

    Follow these steps to test a capacitor:

    1. Set your multimeter to the capacitance mode. Look for the "C" symbol on the dial.
    2. Connect the probes to the capacitor terminals. For polarized capacitors, match the red probe to the positive side.
    3. Read the value on the display. Compare this number to the value printed on the capacitor. If the reading is much lower or higher, the part may be faulty.
    4. Switch your multimeter to the ohms (Ω) setting. Choose a high resistance range.
    5. Touch the probes to the capacitor terminals again.
    6. Watch the reading:
      • If the resistance starts low and rises to infinity, the capacitor charges and works.
      • If the resistance stays low, the capacitor is shorted.
      • If the reading does not change, the capacitor is open and does not work.
    7. Use an ESR meter for more advanced testing. This tool checks the internal resistance and can test capacitors without removing them from the circuit.

    Tip: Always discharge the capacitor before testing to stay safe.

    Identifying Faulty Capacitors

    You can spot a faulty capacitor by checking the test results. If the measured value is far from the rated value, the part is likely bad. A constant low resistance means a shorted capacitor. No change in resistance means the part is open. High ESR values show that the capacitor has poor performance, even if the capacitance seems correct.

    Testing becomes easier when you know how to read the capacitor symbol. The symbol tells you if you need to check polarity or use a special test. This knowledge helps you find and fix problems faster.

    Quick Reference Guide

    Symbol Summary Table

    You can use this table to quickly compare different types of capacitors. It shows the value range, main advantages, disadvantages, and best uses for each type. This guide helps you choose the right capacitor for your project and understand what each capacitor symbol means in a circuit.

    Capacitor TypeApprox. Value RangeAdvantagesDisadvantagesGood For
    Electric double layer, Supercaps6.8mF to 4000FExceptionally high C/V ratioPolarized, low per-cell voltageEnergy harvesting applications
    Aluminum0.1μF to 2.2FInexpensive, high C/V ratioPolarized, temperature sensitiveBulk filtering
    Bipolar0.22μF to 6.8mFHandles polarity reversalNot for continuous AC useDC with uncertain polarity
    Mica/PTFE1pF to 15nFExcellent stabilityHigh cost, only low C valuesRF applications

    Tip: Always check the capacitor symbol in your schematic to match the type and value before you select a part.

    Fast Identification Tips

    You can identify capacitors in complex diagrams by following these simple steps:

    1. Know the Units of Measurement
      Learn the common units for capacitance, such as microfarads (μF), nanofarads (nF), or picofarads (pF).
    2. Find the Capacitance
      Look for numbers near the symbol that show the capacitor’s value.
    3. Search for Tolerance Value
      Check for a percentage or code that tells you how much the actual value can change.
    4. Find the Voltage Rating
      Look for a number and unit that show the highest voltage the capacitor can handle.
    5. Look for a Positive or Negative Sign
      Spot the plus or minus sign to identify polarity, especially for polarized capacitors.

    Remember: Careful reading of each capacitor symbol helps you avoid mistakes and keeps your circuits safe. 🛡️


    You can master reading any capacitor symbol by focusing on key markings and practicing with real schematics. Use this table to remember important markings:

    Type of MarkingDescription
    R MarkingShows small values with decimals (e.g., 0R5).
    Tolerance CodesIndicate how much the value can change.
    Working Voltage CodeLists the highest voltage the capacitor can handle.
    Polarity MarkingsShow positive or negative sides for polarized types.

    When you understand capacitor codes and markings, you choose the right capacitor, avoid mistakes, and keep your projects safe. Practicing with real circuits helps you spot each capacitor quickly. For advanced learning, keep reference charts, use a capacitance meter, and stay updated on new coding systems.

    FAQ

    What does a curved line in a capacitor symbol mean?

    A curved line in a capacitor symbol shows you that the capacitor is polarized. The straight line marks the positive side. The curved line marks the negative side. Always connect polarized capacitors the right way.

    How can you tell the value of a capacitor from its code?

    You can read the code by looking at the numbers and letters. For example, "104" means 100,000 picofarads. The first two digits are the value. The third digit tells you how many zeros to add.

    Why do some capacitors have a stripe or plus sign?

    A stripe or plus sign shows you the polarity. The stripe marks the negative side. The plus sign marks the positive side. You must match these marks to the circuit to avoid damage.

    Can you use any capacitor in place of another?

    No, you cannot. You must match the type, value, and voltage rating. Using the wrong capacitor can cause your circuit to fail or even break.

    What tool helps you test a capacitor in a circuit?

    You can use a digital multimeter. Set it to capacitance mode. Touch the probes to the capacitor leads. The display shows the value. Compare this to the marked value to check if the capacitor works.
