Essential Steps for Tackling Capacitance in Series Circuits

How do you solve capacitance in series problems step by step? You need a clear method for each capacitor in the circuit. Start with the right method to identify the type of connection. Use another method to list each capacitor and its value. Apply the method for the correct formula and solve for the total capacitance in series. Watch for mistakes with each method. You build confidence by following each method and checking your answer.

• List each capacitor and its value.
• Use the correct method for the formula.
• Check your work with each method.

Tip: Using the right method at each step helps you avoid common errors and understand how every capacitor affects the answer.

Key Takeaways

• Identify series circuits by checking if capacitors connect in a single path. This step ensures accurate calculations.
• List all capacitor values before calculations. Use the same unit for consistency and to avoid mistakes.
• Apply the series capacitance formula correctly: 1/Ctotal = 1/C1 + 1/C2 + ... + 1/Cn. This helps find the total capacitance accurately.
• Always check your work. The total capacitance should be less than the smallest capacitor in the series, helping to catch errors.
• Understand voltage distribution in series circuits. The total voltage equals the sum of voltages across each capacitor.

Identify Series Circuit

Recognize Series Connections

You need to spot a series circuit before you solve any problem. In a series circuit, you see capacitors connected in series, one after another, with no branches. The current flows through each capacitor in the same path. You notice that the same charge passes through every capacitor. This is a key sign of a series circuit.

Here are the main characteristics of a series circuit with capacitors connected in series:

You can also remember these points:

• All capacitors connected in series share the same charge.
• The total voltage in the series circuit divides among the capacitors.
• The total capacitance in a series circuit is always less than the smallest capacitor.

If you see these signs, you know you have a series circuit. You avoid mistakes by checking the arrangement before you start your calculation.

Series vs. Parallel

You must know the difference between a series circuit and a parallel circuit. This helps you use the right formula and get the correct answer. In a series circuit, capacitors connected in series line up in a single path. In a parallel circuit, each capacitor has its own branch.

Here is a table to help you compare:

A series circuit decreases total capacitance. The voltage divides across each capacitor. In a parallel circuit, the total capacitance increases. The voltage stays the same across all capacitors.

You need to identify the series connection before you solve for total capacitance. This step makes your calculation accurate and helps you avoid confusion.

Tip: Always check if you have a series circuit or a parallel circuit before you start. This simple check saves you time and helps you get the right answer.

List Capacitance Values

Organize Given Data

You need to start by gathering all the information about the capacitors in your circuit. Look at the circuit diagram closely. Each capacitor will have a value, usually written next to its symbol. These values tell you how much charge each capacitor can store. Before you begin any calculations, write down every capacitance value you see. This step helps you avoid missing any important details.

When you organize the data, check the purpose of each capacitor in the circuit. Sometimes, the circuit may look simple, but the arrangement can change how you solve the problem. Textbooks often show you how to pick the right capacitor values for different circuits. These methods make sure your answers match what the circuit needs to do.

Capacitance values can come in different units. The most common unit is the farad (F). One farad means the capacitor can store one coulomb of charge when you apply one volt. In most problems, you will see smaller units because one farad is very large for most circuits.

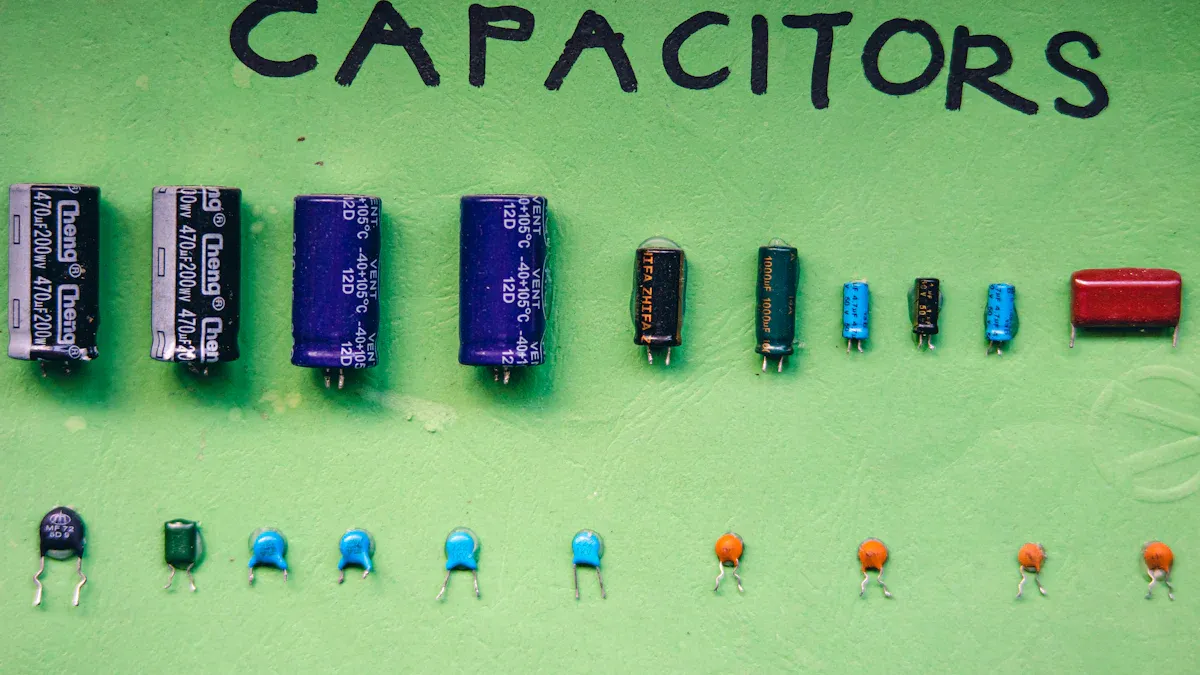

Here is a table of typical capacitance values you might find:

Note: In many school examples, you might see values like 200µF, especially when capacitors are used in parallel. For series circuits, the values can be similar or smaller.

Note Circuit Details

You should also pay attention to how the capacitors connect in the circuit. Write down the order of the capacitors and any special notes from the diagram. If the circuit has labels like C1, C2, or C3, use these labels in your list. This habit keeps your work clear and helps you follow each step without confusion.

Make sure you check if all the capacitors use the same unit. If not, convert them to the same unit before you start your calculations. This step prevents mistakes and makes your math easier. Always double-check your list before moving on to the next step. Careful organization at this stage saves you time and helps you get the right answer.

Capacitance in Series Formula

Series Capacitance Equation

You need to use the correct formula when you solve problems with capacitance in series. This formula helps you find the total capacitance for capacitors connected one after another. You can use this formula for any number of capacitors in a series circuit.

• The standard formula for total capacitance in series is:

  1/Ctotal = 1/C1 + 1/C2 + ... + 1/Cn


• You add the reciprocals of each capacitor’s value. Then, you take the reciprocal of the sum to get the total capacitance.

You always find that the total capacitance in series is less than the smallest capacitor in the group. This happens because the charge must pass through each capacitor, and each one adds resistance to storing charge. The table below shows how the formula works and why the total capacitance is always smaller:

You see that the total capacitance is always less than the smallest capacitor in the series. This result comes from the way the formula adds the reciprocals.

If you use the wrong formula, you can change the frequency response and signal quality in your circuit. Always check your work to keep your device working as planned.

Formula Application

You must identify the correct configuration before you use the formula. Follow these steps to make sure you apply the series capacitance equation correctly:

1. Look at the circuit and check if the capacitors are connected in series. You should see them lined up with no branches.
2. Make sure each capacitor stores the same charge. The voltage across each one can be different, but the charge stays the same.
3. Write down the value for each capacitor. Use the same unit for all values.
4. Use the formula for total capacitance in series:

   1/Ctotal = 1/C1 + 1/C2 + 1/C3 + ...


5. Add the reciprocals of each capacitor’s value. Take the reciprocal of the sum to find the total capacitance.
6. Check your answer. The total capacitance should be less than the smallest capacitor in the series.

You can see how the number of capacitors affects the total capacitance in the table below:

You use Kirchhoff’s Voltage Law to check the voltages across each capacitor. This law helps you set up equations for the voltages and charges in the circuit. You can solve more complex problems by following these steps and using the formula.

Tip: Always double-check the arrangement of your capacitors before you use the formula. This habit helps you avoid mistakes and keeps your calculations accurate.

You now know how to find the effective capacitance in a series circuit. You can use this method for any number of capacitors. Practice with different values to build your skills and confidence.

Calculate Total Capacitance

Step-by-Step Calculation

You can solve any problem involving capacitance in series by following a clear set of steps. This method helps you avoid mistakes and makes your answer reliable. Here is a simple way to calculate the total capacitance for capacitors in series:

1. Identify the Series Connection
   Look at your circuit and make sure all capacitors connect in a single path with no branches. Each capacitor should follow the other in a line.

2. List All Individual Capacitances
   Write down the value of each capacitor in the series. Use the same unit for every value, such as microfarads (µF) or nanofarads (nF).

3. Apply the Series Formula
   Use the formula for capacitance in series:

   1/Ctotal = 1/C1 + 1/C2 + 1/C3 + ...


   Add the reciprocals of all individual capacitances. Then, take the reciprocal of the sum to find the total capacitance.

4. Replace the Series with One Capacitor
   Once you calculate the total capacitance, you can imagine replacing all the capacitors in series with a single capacitor of that value. This step helps you simplify the circuit for further analysis.

Let’s look at some sample calculations to see how this works in practice:

• If you have three capacitors in series, each with a value of 330 nF:

  • 1/Ctotal = 1/330 + 1/330 + 1/330 = 3/330 = 1/110
  • Ctotal = 110 nF

• If you have a 100 µF capacitor in series with a 1000 µF capacitor:

  • 1/Ctotal = 1/100 + 1/1000 = 0.01 + 0.001 = 0.011
  • Ctotal = 1 / 0.011 ≈ 91 µF

Tip: Always double-check your math. Use a calculator for the reciprocals to avoid simple errors.

Result Interpretation

After you calculate the total capacitance, you need to check if your answer makes sense. In a series circuit, the total capacitance will always be less than the smallest individual capacitance in the group. This rule helps you spot mistakes quickly. For example, if your smallest capacitor is 100 µF, your total capacitance should be less than 100 µF.

This result happens because each capacitor in series adds more resistance to storing charge. The more capacitors you add, the smaller the total capacitance becomes. If you find a total capacitance that is not less than the smallest value, you should check your calculation again.

The total capacitance tells you how the group of capacitors will behave in the circuit. If you leave out a capacitor from your calculation, it means that capacitor does not affect the circuit’s performance. If you include all capacitors, each one plays a role in how the circuit stores and releases charge.

Note: Always compare your calculated total capacitance to the smallest individual capacitance. This habit helps you catch errors before they cause problems in your circuit.

You now know how to calculate the total capacitance for any series circuit. Practice with different values and combinations to build your confidence and skill.

Voltage in Series Circuit

Voltage Across Each Capacitor

When you work with capacitors in series, you need to know how to calculate the voltage across each capacitor. If you know the total voltage for the circuit, you can follow a simple process:

• First, calculate the total charge in each capacitor. Use the formula for equivalent capacitance in series to find C_eq.
• Next, use the total voltage and C_eq to calculate the total charge: Q = C_eq × V.
• Since the charge in each capacitor is the same, you can use this value to find the voltage across each capacitor.
• To calculate the voltage across each capacitor, use the formula: Vn = Q / Cn, where Vn is the voltage across each capacitor, Q is the charge in each capacitor, and Cn is the capacitance of that capacitor.
• The sum of the voltage across each capacitor will always equal the total voltage in the circuit.

For example, if you have three capacitors in series and a total voltage of 12V, you first calculate the total charge. Then, you use that charge to find the voltage across each capacitor. This method helps you understand how the charge in each capacitor affects the voltage.

Tip: Always check that the sum of the voltage across each capacitor matches the total voltage. This step helps you catch mistakes early.

Checking Your Work

You want to make sure your answers are correct. Here are some common mistakes and tips for verifying your calculations:

• Forgetting to calculate the total charge in each capacitor before finding voltages.
• Mixing up the values for capacitance or using the wrong unit.
• Not checking that the sum of the voltage across each capacitor equals the total voltage.

To check your work, follow these steps:

• Always calculate the total charge in each capacitor first.
• Double-check your math when you calculate the voltage across each capacitor.
• Use resistors with tight tolerances if you build the circuit. This helps keep the voltage across each capacitor balanced and safe.
• Make sure the resistors can handle the power without overheating.

If you follow these steps, you will find the charge in each capacitor and calculate the voltage correctly every time.

---

You can solve any series circuit problem by following a few key steps. Check out this table for a quick review:

Practicing with different series capacitor problems helps you remember the process and improves your problem-solving skills. Try using online simulators or educational tools to check your answers and learn more. Always double-check your work to avoid common mistakes with each capacitor.
