Electrical Transformer Myths What You Need To Know

You might hold onto common misconceptions about electrical transformers. These outdated beliefs can lead to expensive failures and safety issues. A single transformer failure can halt production, costing millions of dollars in downtime alone.

Note: Improper maintenance, often rooted in myths, causes nearly 3% of all transformer failures. This guide gives you the facts to improve how you manage your transformers. You will understand the true meaning transformer has for your operations.

Key Takeaways

• Transformers need regular care. This prevents big problems and keeps them working well.

• Weather can harm transformers. Protect them from heat, cold, and wet conditions.

• Circuit breakers protect the transformer. They do not protect your computers or other devices.

• New transformers save energy. They are also better for the environment.

• Choose the right transformer for the job. Different tasks need different types of transformers.

Myth 1: Common Misconceptions About Maintenance

Many people view a transformer as a "set and forget" device. You install it, and it works for decades. This belief is dangerous. It ignores the complex systems working inside that simple metal box. Another related myth suggests that since transformers have few moving parts, an occasional oil test is all you need. This is also incorrect. Relying only on oil analysis leaves your operations exposed to significant risks.

Fact: Proactive Care is Non-Negotiable

Proactive maintenance is essential for the health of your transformers. It helps you find and fix small issues before they cause a catastrophic failure. Many factors can lead to a total breakdown.

Common Causes of Transformer Failure ⚠️

• Thermal overload and electrical stress

• Moisture and contamination

• Mechanical stress from faults

• Inadequate maintenance

A comprehensive maintenance plan gives you a complete picture of your transformer's condition. This plan goes far beyond a simple oil check. It involves a scheduled series of electrical, thermal, and physical inspections. Understanding the full meaning transformer health has for your facility starts with these checks. Regular care for your transformers ensures they operate safely and efficiently.

A robust program includes several key test categories. Each test provides unique data about the transformer's internal state.

These tests, combined with physical inspections of cooling systems, bushings, and gauges, form a complete defense. This approach prevents unexpected downtime and extends the life of your critical assets.

Myth 2: Built to Withstand Any Weather

You might think a transformer is a fortress of steel, immune to the elements. This belief is dangerous. It ignores how environmental stress affects the long-term health of transformers. Equipment ages and is subject to constant thermal stress. You must perform regular maintenance to ensure your transformer remains safe and functional.

A common myth suggests that transformers in hot climates fail more often. This is not true. Design standards adjust for local conditions. For example, India's standards account for higher average temperatures than international IEC standards. This ensures the absolute winding hot spot temperatures remain consistent globally. The design anticipates the environment, but it does not make the transformer invincible.

Fact: Environmental Protection is Key

Your transformer needs protection from its surrounding environment. Extreme weather directly impacts its components, efficiency, and lifespan. Heat, cold, and moisture each pose unique threats that can lead to costly failures. Understanding these risks is the first step toward protecting your asset.

The table below shows how different weather conditions can damage your transformers.

Protecting your equipment is straightforward. You can take simple, proactive steps to shield your transformers from environmental harm. These actions prevent moisture ingress and corrosion, ensuring reliability.

• Perform Regular Inspections: You should conduct visual checks for oil leaks, rust, or physical damage. Cleaning away dirt and dust helps prevent overheating.

• Monitor Oil Quality: You need to test transformer oil routinely. This detects degradation from moisture or contamination.

• Ensure Proper Installation: You must install the transformer in a dry, well-ventilated location. This protects it from moisture, dust, and extreme temperatures.

Myth 3: Breakers Protect Your Equipment

You likely believe that a circuit breaker is the ultimate bodyguard for all your electrical devices. This is a common and risky assumption. Many people think that if the breaker is working, everything plugged into the circuit is safe. This misunderstanding confuses the role of system protection with the needs of sensitive electronics. The breaker's true purpose is much more specific and is focused upstream, not downstream.

Fact: Breakers Protect the Transformer, Not the Load

A circuit breaker’s primary job is to protect the transformer and the building's wiring. It is not designed to shield your sensitive electronic loads. The breaker acts as a gatekeeper for the electrical system. It detects dangerous fault currents, like overloads or short circuits, and interrupts the flow of power. This swift action prevents the transformer from overheating and its windings from catching fire.

A breaker's main function is to safeguard the transformer and the power distribution system from catastrophic failure. It is the last line of defense for the major equipment, not the first line of defense for your computers or controllers.

Breakers and other protective devices have very different jobs. A breaker trips on high current, while other devices handle voltage issues. Your transformer provides a stable output voltage, but downstream events can still harm your equipment.

A breaker is too slow to stop the fast, high-energy voltage spikes that destroy modern electronics. For true equipment protection, you need Surge Protective Devices (SPDs) installed close to sensitive loads. These devices are essential for safeguarding PCs, PLCs, and motor controllers. Relying only on a breaker leaves your most valuable—and vulnerable—equipment exposed. Good voltage regulation from transformers is important, but it cannot stop external surges. Proper protection for transformers requires a different strategy than protecting the load. The stable output voltage from your transformer can be compromised by surges the breaker will ignore.

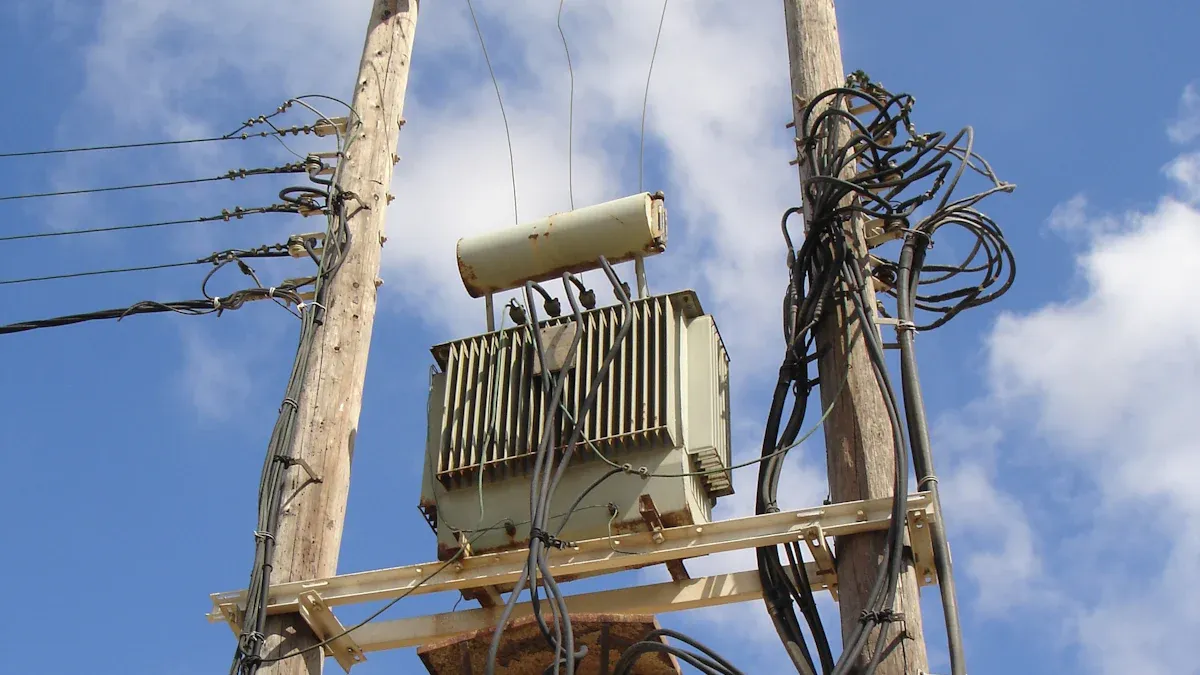

Myth 4: Inefficient and Harmful Transformers

You might picture a transformer as an old, humming box that wastes energy and leaks harmful oil. This image comes from a time when efficiency and environmental impact were not primary concerns. This outdated view can make you overlook the incredible progress made in transformer technology. The true meaning transformer has in modern systems is one of high efficiency and environmental responsibility.

Fact: Modern Designs are Efficient and Green

Today’s transformers are engineering marvels, capable of achieving over 99% efficiency. This means they convert voltage with minimal energy loss. These are not just marketing claims; they are mandated by strict government standards. The U.S. Department of Energy (DOE) sets minimum efficiency levels for power distribution equipment.

Engineers achieve these high standards through several key innovations. A modern transformer uses advanced technology to maintain a stable output voltage with less waste.

• Superior Core Materials: Amorphous metals reduce energy loss.

• Advanced Winding Designs: New configurations minimize electrical resistance.

• Better Insulation: Improved materials handle higher voltages and reduce waste.

Beyond efficiency, modern transformers are also designed to be eco-friendly. The industry has moved away from traditional mineral oil toward safer, greener alternatives.

Natural ester fluids, derived from vegetable seeds, are a game-changer. This fluid is 100% biodegradable and non-toxic. Unlike mineral oil, a spill does not contaminate soil or water, avoiding costly environmental cleanups.

This shift to sustainable materials ensures that a new transformer can deliver a consistent output voltage for decades without posing a threat to the environment.

Myth 5: A Transformer is Just a Transformer

You might think that one transformer is much like another. This view suggests that as long as the voltage is correct, any unit will do the job. This oversimplification is risky. It ignores the specialized designs that make different transformers suitable for very different tasks. The true meaning transformer has in your system comes from its specific application. Choosing the wrong type can lead to inefficiency, damage, and failure.

Fact: The True Meaning Transformer is Application-Specific

You must match the transformer to its intended job. A unit designed for a stable, predictable load will fail quickly in a dynamic industrial environment. Power transformers and distribution transformers, for example, serve entirely different purposes and have unique designs.

Using a standard transformer for modern electronic loads is a common mistake. These loads create electrical "noise" called harmonics. Harmonics can cause serious problems for a transformer not built to handle them.

1. Excessive Heating: Harmonics increase losses in the core and windings, causing the unit to overheat. This damages insulation and shortens the transformer's life.

2. Reduced Lifespan: The constant thermal and electrical stress from harmonics accelerates wear and leads to premature failure.

3. Unstable Output Voltage: These issues can compromise the stability of the output voltage, affecting the performance of connected equipment.

Selecting application-specific transformers ensures your system runs safely and efficiently. These units provide a stable output voltage and are built to handle specific challenges.

Benefits of the Right Transformer ✅

• Energy Savings: Designs that minimize electrical losses reduce energy waste.

• Reliability: Durable materials and optimized designs perform better in demanding environments.

• Cost Efficiency: A longer lifespan and lower energy use reduce the total cost of ownership.

Ultimately, the right choice protects your investment and ensures a reliable power supply with a consistent output voltage.

You now understand the truth behind common transformer myths.

• Proactive maintenance is mandatory.

• Transformers are vulnerable to weather.

• Breakers protect the system, not the load.

• Modern units are highly efficient.

• Design must match the application.

Understanding the true meaning transformer management has for your operations is key to a safe, reliable, and cost-effective electrical system. You should review your current protocols now. Use an industry-standard checklist to guide your inspection of maintenance procedures, functionality tests, and safety measures to ensure long-term performance and savings.

FAQ

How often should you test transformer oil?

You should test your transformer's oil at least once a year. This simple check helps you find moisture and other contaminants before they cause serious damage. Your specific operating conditions may require you to test more frequently.

Can you use a standard transformer for computers?

You should avoid using a standard transformer for computer loads. These electronics create electrical noise called harmonics. You need a special K-rated transformer designed to handle this noise safely and prevent overheating.

What is the most important maintenance task?

A complete maintenance program is more important than any single task. You get a true picture of your transformer's health by combining several checks.

• Visual inspections

• Oil analysis

• Electrical tests

Are new transformers really that much better?

Yes, modern transformers are far superior. They achieve over 99% efficiency, saving you money on energy costs. They also use non-toxic, biodegradable fluids. This design makes them safer for the environment.

Remember: Upgrading to a modern, application-specific transformer is an investment in reliability and efficiency. ✅
