Exploring the Role of Diode Z in Voltage Regulation
A sudden voltage spike can destroy delicate parts in a smartphone or medical device. Diode Z, known as a zener diode, prevents this by keeping voltage steady. Zener diodes work as guardians for voltage regulation. They hold voltage at a safe level, even when input changes. In many applications, such as industrial automation and electric vehicle charging, zener diodes reduce the risk of damage. The following table shows how zener diode use improves voltage regulation and protection:

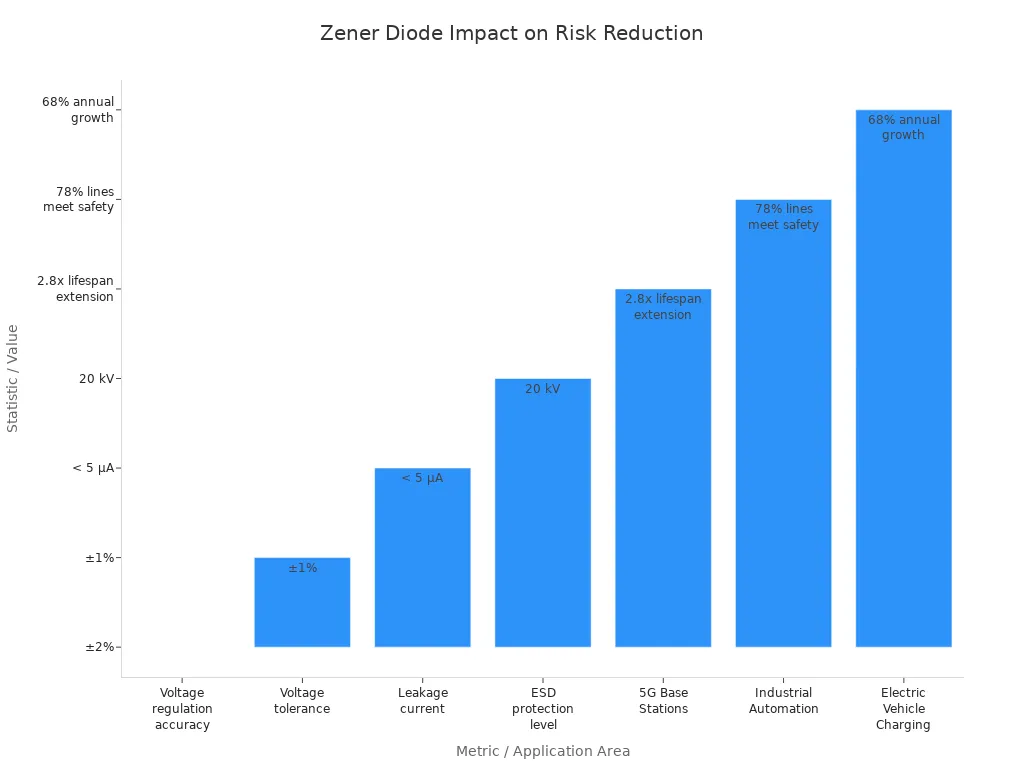

| Performance Metric / Application Area | Statistic / Value | Impact on Risk Reduction |
|---|---|---|
| Voltage regulation accuracy | ±2% | Maintains steady voltage, reducing damage risk to sensitive components by preventing voltage fluctuations. |
| Voltage tolerance | ±1% | Ensures voltage remains within safe limits, protecting delicate parts. |
| Leakage current | < 5 µA | Low leakage reduces unintended current flow, enhancing reliability. |
| ESD protection level | 20 kV | Protects circuits from electrostatic discharge, lowering failure rates. |
| 5G Base Stations | 2.8x lifespan extension under surge conditions (100V surges at 20A pulses) | Demonstrates significant durability improvement by handling voltage spikes. |
| Industrial Automation | 78% of production lines meet surge safety standards due to Zener diode use | Shows widespread effectiveness in reducing damage from voltage surges. |
| Electric Vehicle Charging | 68% annual growth in Zener diode use for fast chargers supporting 15kW-25kW loads | Indicates increasing reliance on Zener diodes for protecting high-power systems. |
Key Takeaways
- Zener diodes keep voltage steady by allowing current to flow backward when voltage gets too high, protecting sensitive electronics from damage.
- They work by clamping voltage at a fixed level, making them ideal for power supplies, surge protection, and voltage reference circuits.
- Zener diodes come in many voltage ratings and sizes, but they handle only low to moderate power and need current limits to avoid overheating.
- Their small size, low cost, and simple design make them popular for many devices, but they may drift with temperature and create noise in precise circuits.
- Engineers use Zener diodes mainly for safe, reliable voltage regulation in everyday electronics, while other devices suit high-power or high-precision needs better.
Diode Z and Voltage Regulation
Zener Diode Operation
Diode Z, also known as a zener diode, plays a unique role in voltage regulation. Unlike regular diodes, which only allow current to flow in one direction, a zener diode can conduct current in the reverse direction when the voltage across it reaches a specific value called the zener voltage. This property makes it different from standard diodes, which block reverse current and do not help with voltage regulation.
When the reverse voltage applied to the zener diode reaches the zener voltage, the diode enters a region called breakdown. In this region, the diode allows a controlled reverse current to flow. This reverse current flow is essential for voltage regulation. If the reverse current is too low, the diode does not fully enter the breakdown region, and the voltage across it is not stable. When the reverse current is high enough, the zener diode maintains a nearly constant voltage across its terminals. This behavior allows the diode to act as a voltage regulator, keeping the voltage steady even if the input voltage or load changes.
Note: The reverse current flow in the breakdown region is what gives the zener diode its ability to regulate voltage. This mechanism sets it apart from other diodes and makes it valuable for voltage regulation in many applications.
Voltage Stabilization Mechanism
The voltage stabilization mechanism of the zener diode relies on its ability to clamp the voltage at a fixed level. In most circuits, engineers connect the zener diode in parallel with the load. When the input voltage rises above the zener voltage, the diode conducts in reverse and shunts excess current away from the load. This action keeps the voltage across the load at a constant voltage, even if the input voltage fluctuates.
This shunt configuration ensures a stable output voltage for sensitive electronic components. For example, in power supply circuits, the zener diode protects devices by maintaining a stable output voltage. The diode absorbs any extra voltage by allowing more reverse current to flow, which prevents the voltage from rising above the safe limit.
- Common applications for zener diodes include:
- Power adapters and chargers
- Battery-operated devices
- Voltage reference circuits
- Surge protection systems
These applications benefit from the zener diode’s ability to provide reliable voltage regulation. The diode’s predictable behavior in the breakdown region ensures that the voltage remains within safe limits, protecting sensitive parts from damage.
Tip: Using a zener diode as a voltage regulator is a simple and cost-effective way to achieve constant voltage and stable output voltage in many electronic circuits.
The unique reverse current conduction mechanism of the zener diode makes it ideal for voltage regulation. By operating in the breakdown region, the diode maintains a constant voltage across its terminals, regardless of changes in load or input voltage. This property ensures effective regulation and makes the zener diode a key component in voltage regulator circuits and other applications that require stable output voltage.
Zener Diode Properties
Key Parameters
A zener diode has several important parameters that define its performance in voltage regulation. The most critical is the zener voltage. This is the voltage at which the zener diode starts to conduct in reverse bias. Commercial zener diodes come in a wide range of zener voltages, from about 1.2 volts up to several hundred volts. The table below shows how these values impact their use:
| Aspect | Details |
|---|---|
| Zener Voltage Range | 1.2 V to several hundred volts |
| Breakdown Mechanisms | Below 5 V: Zener breakdown (tunneling); Above 5 V: Avalanche breakdown |
| Application Impact | Low voltage: Precision references; High voltage: Power supplies, surge protection |
| Voltage Regulation Role | Maintains steady voltage by conducting above breakdown voltage |
The current rating is another key parameter. It tells how much current the zener diode can handle without damage. Most consumer zener diodes have power ratings below 1 watt, often around 500 mW. For example, a 2 V zener diode rated at 500 mW can safely handle up to 0.25 A. Designers often use lower currents to ensure long life and reliability.
Heavy doping in the zener diode creates a thin depletion region. This allows the zener voltage to be set very precisely, especially for values below 5.6 V. The thin region also supports stable voltage regulation. The resistance of the zener diode in breakdown is low, which helps keep the voltage steady even if the current changes.
Note: Zener diodes with a zener voltage near 5.6 V show the best temperature stability. This makes them ideal for voltage reference circuits.
Reverse Bias and Breakdown
The zener diode operates in reverse bias. When the reverse voltage reaches the zener voltage, the diode enters breakdown. In this state, the zener diode conducts current and clamps the voltage at the zener voltage. This action protects sensitive circuits from overvoltage.
There are two main breakdown mechanisms. For zener voltages below about 5 V, the zener breakdown effect dominates. This effect uses quantum tunneling in a heavily doped, thin junction. For zener voltages above 5 V, avalanche breakdown takes over. This process happens in lightly doped, thicker junctions and needs higher voltages.
| Feature | Zener Breakdown | Avalanche Breakdown |
|---|---|---|
| Doping Level | Heavy | Light |
| Junction Thickness | Thin | Thick |
| Breakdown Voltage | Low (below 5 V) | High (above 5 V) |
| Temperature Effect | Negative coefficient | Positive coefficient |
| Effect on Diode | Non-destructive | Can be destructive |
The zener diode can safely operate in breakdown many times if the current stays within safe limits. Good thermal management is important. If the diode overheats, the zener voltage can drift, and the diode may fail. Designers must consider power ratings and temperature effects to ensure reliable voltage regulation and protection.
Applications of Zener Diode
Voltage Reference
Zener diodes play a key role in voltage reference circuits. Engineers use them to create a stable reference voltage for analog-to-digital converters and measurement devices. When the zener diode operates in reverse breakdown, it keeps the voltage nearly constant. This stable voltage helps circuits compare signals and produce accurate digital codes. Designers often add a series resistor to limit current and keep the diode safe. Buried zener diodes offer even better stability for demanding applications. Many consumer electronics, such as smartphones and wearables, rely on this function to ensure reliable operation.
Tip: Zener diodes provide a wide range of reference voltages, from 2V to 200V, making them flexible for different applications.
Surge Suppression
Surge suppression is one of the most important applications of zener diode technology. When a voltage spike occurs, the zener diode clamps the voltage to a safe level. It stays off during normal operation, but once the voltage exceeds its breakdown value, it conducts in reverse and protects sensitive components. Engineers often connect zener diodes in parallel with the load to divert dangerous currents away from critical parts. In AC circuits, two zener diodes connected back-to-back can clamp both positive and negative spikes.
| Device Type | Key Characteristics | Surge Suppression Effectiveness & Limitations |
|---|---|---|
| Zener Diodes | Stable breakdown voltage; basic surge protection | Good for low-energy surges; less effective than TVS diodes or MOVs for high-energy events |
| TVS Diodes | Optimized for surge current; accurate clamping | Better for precise clamping; auto-reset; lower energy rating than MOVs |
| MOVs | High energy rating; low cost | Effective for large surges; limited lifetime; risk of overheating |
| Crowbar Devices | Handle very high surge energy | Require manual reset; slower response |
Noise Reduction and Protection
Zener diodes help reduce noise and protect circuits from voltage fluctuations. In clipper circuits, they limit voltage peaks and keep signals within safe ranges. This prevents distortion in audio and digital systems. In switching circuits, zener diodes set voltage thresholds for transistors, ensuring smooth operation. Industrial automation and renewable energy systems use zener diodes to stabilize voltage and improve reliability. Automotive electronics also benefit from these applications, as zener diodes protect onboard systems from voltage surges and noise.
- Common applications of zener diode technology include:
- Power supply regulation in chargers and adapters
- Voltage clamping in signal lines
- Overvoltage protection in automotive and industrial systems
- Reference voltage generation in measurement devices
- Noise reduction in audio and communication circuits
- Switching and sensing circuits for precise control
Note: Proper current limiting with a series resistor is essential for safe and effective regulation in all these applications.
Advantages and Limitations
Benefits of Diode Z
The zener diode offers several important advantages for voltage regulation in electronic circuits. Many engineers choose this component because of its small size, which allows easy integration into compact devices like smartphones and IoT sensors. The zener diode is also cost-effective, making it a popular choice for both small and large projects. Its long life and reliable operation help protect sensitive components and extend the durability of electronic systems.
- Small physical size fits tight spaces on circuit boards.
- Cost-effective for mass production and hobby projects.
- Wide range of voltage ratings and power capacities.
- Reliable long-term operation when used within power limits.
- Simple circuit design reduces complexity and saves space.
Note: The advantages and disadvantages of zener diodes often depend on the specific application and power requirements.
Drawbacks
Despite its many advantages, the zener diode has some limitations. It cannot handle high currents or high voltages without risk of overheating or failure. Temperature changes can cause the voltage to drift, which reduces precision in demanding applications. The zener diode may also generate noise that can affect sensitive circuits. High-power versions are rare and difficult to mount, and using several in series does not always increase power handling safely.
- Limited power handling; overheating can cause failure.
- Voltage drift with temperature changes reduces accuracy.
- Noise during operation may interfere with other circuits.
- High-power zener diodes are hard to find and mount.
- Series connection for higher power is unreliable.
These disadvantages mean that designers must carefully consider the advantages and disadvantages of zener diodes before choosing them for high-power or high-precision tasks.
Comparison with Other Methods
When comparing the zener diode to other voltage regulation solutions, several differences stand out. Linear voltage regulators, such as the LM78XX series, provide better efficiency and stability in low-power circuits. They consume less power and offer more precise voltage regulation. Schottky diodes respond quickly and have a low forward voltage drop, but they are mainly used for fast switching, not voltage regulation. TVS diodes react much faster to voltage surges and can handle higher surge currents, making them better for transient protection.
| Feature | Zener Diode | Linear Regulator | Schottky Diode | TVS Diode |
|---|---|---|---|---|
| Main Use | Voltage regulation | Precise regulation | Fast switching | Surge protection |
| Response Time | Micro/nanoseconds | Milliseconds | Nanoseconds | Picoseconds |
| Power Handling | Limited | Moderate to high | Moderate | High |
| Cost | Low | Higher | Low | Moderate |
| Circuit Complexity | Simple | More complex | Simple | Simple |
Tip: The zener diode remains a top choice for simple, low-cost voltage regulation, but other methods may be better for high-precision or high-power needs.
The zener diode offers reliable voltage regulation for many electronic circuits. Designers value its compact size and cost-effectiveness, especially in space-limited devices. Understanding zener diode properties, such as breakdown voltage and power rating, helps engineers select the right part for stable performance.
- Choose a zener diode for low to moderate power circuits, voltage references, and surge protection.
- Avoid using it in high-power or high-precision applications where temperature changes or noise may cause issues.
Recent advances in zener diode materials, like silicon carbide, now support higher voltages and better thermal stability.
Engineers who master zener diode selection and circuit design can improve reliability and protect sensitive components. Exploring new zener diode technologies opens doors to advanced applications in power electronics and sensor systems.
FAQ
What makes a Zener diode different from a regular diode?
A Zener diode allows current to flow in reverse when voltage reaches a set value. Regular diodes block reverse current. This unique property lets Zener diodes regulate voltage and protect circuits.
How does a Zener diode protect electronic devices?
The Zener diode clamps voltage at a safe level. When voltage rises too high, it conducts in reverse and diverts extra current. This action prevents damage to sensitive components.
Can a Zener diode be used for both AC and DC circuits?
Engineers use Zener diodes mainly in DC circuits. For AC protection, they often connect two Zener diodes in opposite directions. This setup clamps both positive and negative voltage spikes.
What happens if too much current flows through a Zener diode?
Too much current can overheat the Zener diode. Overheating may cause the diode to fail or change its voltage rating. Designers use resistors to limit current and keep the diode safe.
Where do engineers use Zener diodes most often?
Engineers use Zener diodes in power supplies, voltage reference circuits, surge protectors, and noise filters. These applications benefit from the diode’s ability to keep voltage steady and protect electronics.
