5 Essential Integrated Circuit Types You Should Know

Modern electronics seem complex. Yet, they are built from a few fundamental types of integrated circuits. The entire industry powering these devices is massive and expanding rapidly.

A helpful description of integrated circuit functions is to imagine a team of specialists. This team has different types of ic: digital integrated circuits (the brains), analog integrated circuits (the sensors), and mixed-signal integrated circuits (the translators), plus memory and custom chips. The power of a single digital integrated circuit is immense.

Understanding these different types of ics and the various types of integrated circuits provides a strong foundation. This description of integrated circuit knowledge demystifies the technology we use every day.

Key Takeaways

• Digital ICs are the brains of electronics. They use 0s and 1s to do math and follow commands.
• Analog ICs are like device senses. They handle real-world signals such as sound or temperature.
• Mixed-signal ICs act as translators. They change real-world signals into computer language and back.
• Memory ICs store information. They help devices remember data, either for a short time or a long time.
• ASICs are custom chips for one job. They do their specific task very fast and well.

A Basic Description of Integrated Circuit Types

An electronic device contains many different types of ic working together. Each chip has a specific job. This simple description of integrated circuit functions helps explain how complex gadgets operate. Understanding the basic types of integrated circuits is the first step. The world of electronics uses five main categories of chips. This overview provides a foundational description of integrated circuit roles.

Quick Tip: Think of these ICs as a construction crew. Digital ICs are the architects with the plans, analog ICs are the surveyors measuring the land, and mixed-signal ICs are the foremen communicating between them.

The Digital Integrated Circuit

A digital integrated circuit processes information using binary code, which consists of ones and zeros.

Analog Integrated Circuits

An analog integrated circuit handles continuous, real-world signals like sound, light, or temperature. These analog integrated circuits are essential for interacting with the physical environment.

Mixed-Signal ICs

A mixed integrated circuit acts as a bridge, converting analog signals to digital ones and vice versa. These mixed-signal integrated circuits allow digital systems to understand real-world data.

Memory ICs

Memory integrated circuits are designed specifically to store digital information, either temporarily or permanently.

Application-Specific ICs (ASICs)

An ASIC is a custom-built chip created for one single purpose, offering high performance for a specific task. This final description of integrated circuit types highlights the specialization possible in modern electronics. The different types of ic, from general-purpose digital integrated circuits to specialized ASICs, show the diversity in the field. These various types of integrated circuits form the building blocks of all technology.

The Digital Integrated Circuit

A digital integrated circuit is the computational core of modern electronics. It functions like a vast array of light switches, processing information using a binary system of 0s and 1s. These circuits are the "brains" that execute commands and perform calculations, making our devices smart.

Core Function

The primary job of a digital IC is to perform logical operations. Its function is determined by the arrangement of millions or even billions of transistors. The scale of this integration is a key classification method. For instance, Very Large-Scale Integration (VLSI) is a design process that packs thousands to millions of transistors onto a single chip. This high density increases processing power while reducing size and cost. Digital ICs can be classified based on integration level, from small-scale to VLSI. They can also be categorized based on technology, such as CMOS (Complementary Metal-Oxide-Semiconductor), which is known for its low power consumption.

Common Examples

Two of the most common examples are the microprocessor and microcontrollers.

• A microprocessor (MPU) contains only the Central Processing Unit (CPU). It requires external components like memory and input/output ports to function. The first commercial microprocessor, the Intel 4004, was a major milestone. Today, a powerful microprocessor from Intel or AMD is the heart of every personal computer. The modern microprocessor is a marvel of engineering.
• Microcontrollers (MCUs) are complete systems on a single chip. They integrate a CPU, memory (Flash, SRAM), and peripherals. This makes microcontrollers ideal for specific, dedicated tasks. The popular ATmega328P, found in many Arduino boards, is one of the most well-known microcontrollers. These versatile microcontrollers power countless embedded systems.

Did You Know? A microprocessor is built for high-speed, general-purpose computing, while microcontrollers are optimized for real-time control tasks. This is why a powerful microprocessor runs your laptop, but simple microcontrollers run your coffee maker. Many microcontrollers are designed for low-power applications.

Key Applications

Digital ICs are everywhere. The powerful microprocessor in your smartphone or laptop handles everything from running apps to displaying graphics. Simpler microcontrollers manage functions in everyday items. Their applications are vast and include:

• Consumer Electronics: Televisions, gaming consoles, and digital watches.
• Automotive Systems: Engine control units, airbags, and infotainment systems.
• Medical Devices: Portable diagnostic equipment and pacemakers.

The classification of these chips based on integration level helps define their capability. A simple digital watch might use a chip with a lower integration level, while a complex microprocessor represents the peak of design based on integration level. The choice between a microprocessor and one of the many microcontrollers depends entirely on the task's complexity and power requirements. These microcontrollers are essential for the Internet of Things (IoT).

Analog Integrated Circuits

While digital ICs handle data, an analog integrated circuit interacts with the real world. It processes continuous signals like sound, temperature, or voltage. Think of it like a dimmer switch that can smoothly adjust brightness, rather than a simple on/off switch. These circuits are the sensory organs of electronic devices.

Core Function

The main job of an analog integrated circuit is to process continuous signals directly. It manipulates the entire waveform of a signal using components like transistors and resistors. This allows it to perform tasks such as amplification and filtering without converting the signal to binary code. An analog signal, like an audio wave, has a fluctuating voltage that represents a time-dependent variable. The circuit processes this entire range of values. The design of these chips can be categorized based on technology to optimize them for specific signal types.

Common Examples

Two of the most widespread examples of analog ICs are operational amplifiers and voltage regulators.

• Operational Amplifiers (Op-Amps): These are versatile building blocks used for amplifying or filtering signals. The famous LM741 op-amp, for instance, can amplify a small input signal up to 200,000 times and operates over a wide supply voltage range. These are fundamental to audio integrated circuits.
• Voltage Regulators: These components provide a stable and consistent voltage to other parts of a circuit. The 78xx family is a popular series of regulators, where "xx" indicates the output voltage (e.g., 7805 for 5 volts). These are essential power management integrated circuits.

Fun Fact: 💡 The LM741 op-amp contains just 20 transistors. This is a tiny number compared to the billions found in a modern microprocessor, but its function is just as critical for many electronic systems.

Key Applications

Analog ICs are crucial for bridging the gap between digital electronics and the physical world. Their applications are diverse and growing, especially in the automotive sector.

Key application areas include:

1. Audio Systems: High-fidelity audio integrated circuits amplify sound in speakers and headphones.
2. Sensor Interfaces: Sensor integrated circuits process signals from microphones, temperature probes, and pressure sensors.
3. Power Management: Power management integrated circuits ensure devices receive clean, stable power. This is vital in everything from smartphones to electric vehicles.

The selection of a specific chip is often based on technology to meet performance and efficiency goals. For example, specialized sensor integrated circuits are designed for the high demands of Advanced Driver-Assistance Systems (ADAS) in modern cars.

Mixed-Signal ICs

A mixed-signal IC acts as a translator, creating a bridge between the real, continuous world and the binary, digital world. These chips combine analog and digital circuits onto a single piece of silicon, allowing a device to sense its environment and process that information digitally.

Core Function

The primary job of a mixed-signal IC is to convert signals from one form to another. Analog components capture real-world data, like sound or temperature. An Analog-to-Digital Converter (ADC) then changes this data into a digital format that processors and microcontrollers can understand. This integration is complex. Designers face major challenges like managing electrical noise to keep the sensitive analog parts from being disturbed by the noisy digital parts.

Common Examples

The most common examples are converters that translate signals back and forth.

• Analog-to-Digital Converters (ADCs): These circuits sample a continuous analog signal and turn it into a stream of 0s and 1s. The quality of this conversion depends on its resolution (the number of bits used) and its sampling rate (how many times per second it measures the signal). Many microcontrollers include ADCs to read data from sensors.
• Digital-to-Analog Converters (DACs): These perform the reverse task. They take digital data and convert it back into a smooth, analog signal. The quality of a DAC greatly affects the final output, especially in audio. A good DAC produces clear, rich sound from a digital file.

Did You Know? 💡 The microcontrollers in a smart thermostat use an ADC to read the analog temperature sensor. Then, the processor inside the microcontrollers decides when to turn the heat on or off. The design of these microcontrollers is very efficient.

Key Applications

Mixed-signal ICs are essential in any device that interacts with the physical world. Their applications are everywhere.

1. Digital Media: Digital cameras use an ADC to convert light from the lens into a digital image file. Sound cards and music players use a DAC to turn MP3s into audible music for your headphones.
2. Communications: Modern communication systems rely heavily on these chips. The expansion of 5G networks is a primary driver for advanced communication integrated circuits that can handle high-speed data.
3. Embedded Systems: Countless smart devices use microcontrollers with built-in mixed-signal capabilities. Simple microcontrollers might only need to read a sensor, while more advanced microcontrollers manage complex interactions between the analog and digital worlds.

Memory ICs

Memory integrated circuits are the digital storage lockers of the electronics world. Their single purpose is to store and retrieve binary data. This function is essential for any device that needs to remember information, from a simple calculator to a powerful server.

Core Function

The primary function of a memory IC is to hold digital information. These chips are broadly classified based on how they retain data when power is removed. This characteristic is known as volatility.

1. Volatile Memory (RAM): This type of memory needs constant power to keep its stored information. If the power goes off, the data disappears. It is perfect for temporary, high-speed tasks.
2. Non-Volatile Memory: This category retains data even without power. It is ideal for long-term storage, like holding firmware or user files. Flash memory is the most common example.

Quick Tip: 🧠 Think of volatile memory like your short-term memory for a phone number you just heard. Non-volatile memory is like writing that number down in a notebook to save it for later.

Common Examples

The most common examples of memory ICs are SRAM, DRAM, and Flash memory. Each has a distinct role based on its speed, cost, and volatility.

DRAM stores data in tiny capacitors and needs constant refreshing, making it perfect for main system memory. In contrast, NAND Flash stores data in logic gates, which is slower but allows data to persist without power.

Key Applications

Different types of memory are chosen for specific jobs to optimize performance and cost. These memory integrated circuits form the memory hierarchy in most computing systems.

• SRAM (Static RAM): Its high speed makes it perfect for CPU cache memory. It stores frequently used instructions to help the processor work faster.
• DRAM (Dynamic RAM): This is the main memory in personal computers and servers. It provides large capacities for running operating systems and applications.
• Flash Memory: This non-volatile memory is the foundation for Solid-State Drives (SSDs), USB drives, and memory cards. It provides stable, long-term storage for databases and user files.

Application-Specific ICs (ASICs)

An Application-Specific Integrated Circuit (ASIC) is a chip custom-built for one specific purpose. Unlike general-purpose microprocessors or versatile microcontrollers, an ASIC cannot be reprogrammed for other jobs. This specialization allows it to perform its single task with incredible speed and efficiency.

Core Function

The main function of an ASIC is to provide optimized performance for a dedicated task. Companies invest in custom ASICs for several key reasons. These chips are not as flexible as programmable microcontrollers, but their focused design offers major advantages.

• Enhanced Performance: The design is tailored to a specific job. This minimizes delays and maximizes processing speed for faster device operations.
• Cost Efficiency in High Volumes: The initial design cost is high. However, for large production runs, ASICs reduce long-term costs through lower power use and cheaper materials.
• Unique Features: ASICs allow companies to build unique capabilities into their products that off-the-shelf components cannot provide.

Common Examples

ASICs are more common than many people realize. One famous example is Google's Tensor Processing Unit (TPU).

The TPU is a purpose-built ASIC designed to accelerate machine learning models. It uses large arrays of logic units to perform the complex matrix math needed for neural networks. This makes it much faster and more power-efficient for AI tasks than a standard CPU. Many smart devices use simple microcontrollers, but high-end AI hardware relies on ASICs like the TPU. These specialized chips are very different from general-purpose microcontrollers.

Key Applications

ASICs drive innovation in industries that require extreme performance. The choice of a chip is often based on application needs. While many devices use low-power microcontrollers, some tasks demand the power of an ASIC.

A prime example is the cryptocurrency mining industry. ASICs completely changed Bitcoin mining. They are designed to solve Bitcoin's specific SHA-256 algorithm. This gives them a massive performance and efficiency advantage over GPUs. This leap in efficiency transformed mining from a hobby into a large-scale industrial operation. The powerful, single-task nature of an ASIC is the opposite of the flexible, multi-purpose design of most microcontrollers.

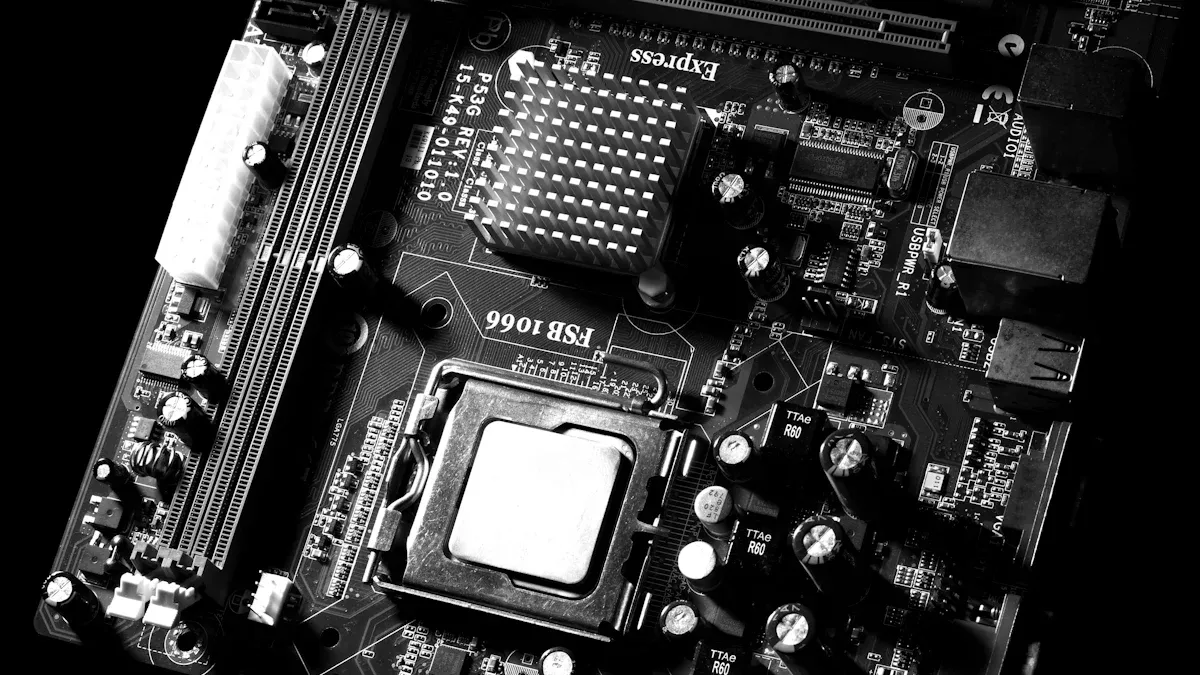

Quick Comparison of Different Types of IC

Understanding the different types of ic becomes much easier with a direct comparison. Each chip has a specific role, signal type, and application area. This variety allows engineers to build complex electronic systems. The following table breaks down the core differences between the main types of integrated circuits. It serves as a quick reference guide to help you distinguish between these essential components.

Key Takeaway: This summary highlights how the different types of ic work together. Digital chips compute, analog chips sense, mixed-signal chips translate, memory chips store, and ASICs perform specialized tasks with maximum efficiency.

Comparison by Function

Comparison by Signal Type

Comparison by Application

The table below summarizes the key characteristics of the five essential types of integrated circuits. It compares their primary job, the kind of signal they handle, and where you might find them. This overview clarifies the unique purpose of the different types of ics.

---

The world of electronics relies on five core specialists. Digital ICs compute, analog ICs sense, mixed-signal ICs translate, memory ICs store, and ASICs perform unique jobs. This knowledge demystifies the devices we use daily. The industry also pushes forward with new designs. Chiplets provide flexibility with a modular approach, while 3D ICs stack layers to increase power and speed.

You now have a clearer view of the amazing technology that powers the modern world. 💡

FAQ

What is the difference between an IC and a transistor?

A transistor is a single electronic switch. An integrated circuit (IC) is a tiny chip that contains thousands, millions, or even billions of transistors. The IC connects these transistors to perform complex tasks. Think of a transistor as one brick and an IC as a whole building.

Why are there so many different types of ICs?

Different jobs require different tools. Digital ICs perform calculations. Analog ICs sense the real world. Memory ICs store information. Each type has a special purpose. This specialization makes electronic devices work efficiently. Engineers choose the right IC for each specific task in a device.

Can one chip have multiple functions?

Yes, some chips combine different functions. A microcontroller is a great example.

It integrates a processor (digital), memory, and converters (mixed-signal) onto a single chip. This "system on a chip" design is very common in smart devices, from thermostats to coffee makers.

What makes an ASIC "application-specific"?

An ASIC has a permanent design for only one job. 💡 Unlike a flexible microprocessor, a company creates an ASIC for a single, repetitive task. This focused design makes the chip extremely fast and power-efficient for that one application, such as mining cryptocurrency or processing video.
