From Phones to Fans 10 Essential Capacitor Uses

Have you ever wondered, "capacitor what is it?" Think of a capacitor as a tiny bucket for electrical energy. This component handles energy storage and provides quick electrical bursts.

You find these small capacitors in nearly every electronic device. These capacitors are the unsung heroes powering your world. The real-life applications of capacitors are vast. The market for capacitors shows their importance.

Let's uncover where these essential capacitors hide in plain sight. You will see how these capacitors work.

Key Takeaways

• Capacitors store electrical energy and release it quickly. They are like tiny buckets for electricity.
• Capacitors smooth power for chargers and store data in computer memory. They make sure devices get steady power.
• Capacitors help camera flashes work and start motors in fans and air conditioners. They give a quick burst of energy.
• Capacitors filter sounds in speakers and tune radios to different stations. They help control electrical signals.
• Capacitors enable touchscreens to sense your finger and create timers for things like car wipers. They are key to how we interact with devices.

Capacitor: What Is It and Why It Matters

So, capacitor what is it? At its core, a capacitor is a component designed for energy storage. It works by holding electrical energy in an electric field between two conductive plates. Unlike a battery that stores energy chemically, a capacitor stores it electrostatically. This key difference allows capacitors to charge and discharge almost instantly. Think of it as a small water bucket that can be filled and emptied in a flash, rather than a large reservoir that fills slowly. This simple function is what makes so many modern electronics possible. Let's explore two critical examples.

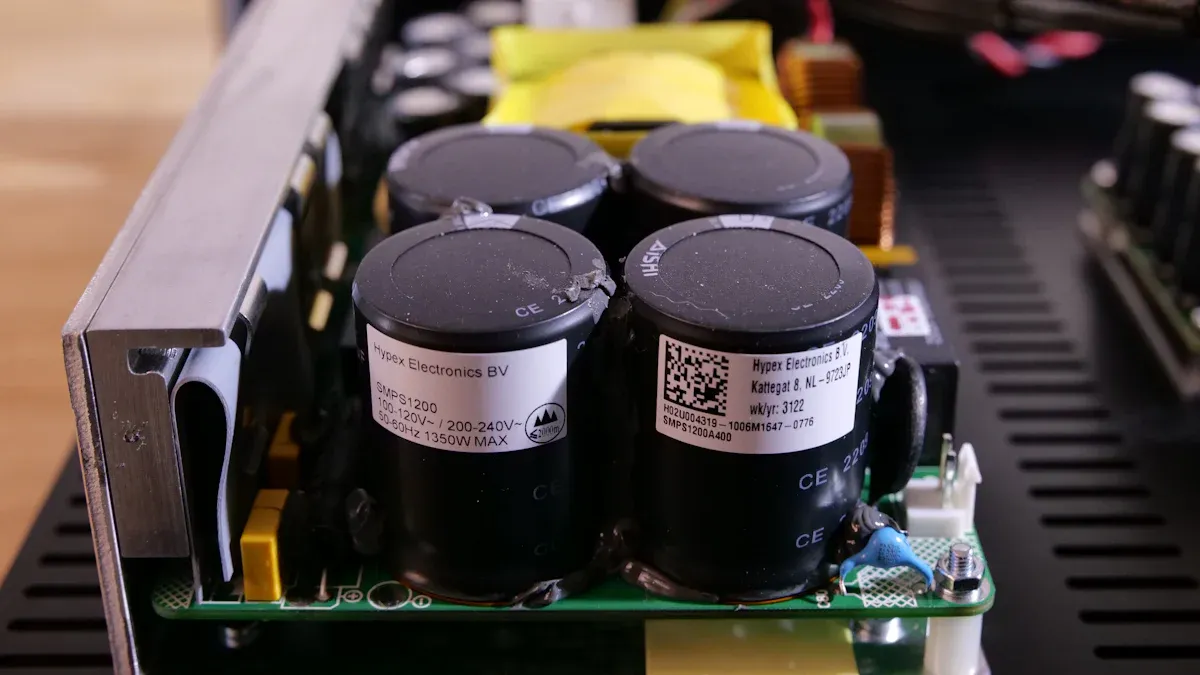

Smoothing Power for Chargers

When you plug your phone charger into the wall, it converts alternating current (AC) into direct current (DC). However, this initial DC power is not smooth; it comes in pulses or ripples. This is where capacitors come to the rescue. A smoothing capacitor in your charger acts like a small dam.

• It charges up when the voltage pulse is high.
• It releases its stored electrical energy when the voltage drops.

This action smooths out the ripples, creating the steady, clean power your sensitive electronics need. It is a vital role in any power supply in electrical systems.

What happens if these capacitors fail? A failed smoothing capacitor allows voltage ripple to enter the circuit. This introduces noise and fluctuations that can distort audio, cause errors in digital devices, and degrade overall performance.

Storing Data in Computer RAM

You might be surprised to learn that your computer’s memory relies on billions of tiny capacitors. In Dynamic Random-Access Memory (DRAM), each bit of data (a 1 or a 0) is stored as an electrical charge in a microscopic capacitor. This is a perfect example of energy storage in electronic devices. A question you might have is, capacitor what is it doing in RAM?

A memory cell consists of one capacitor and one transistor. The capacitor holds the charge, and the transistor acts as a tiny switch, controlling access to it. However, these capacitors are leaky and lose their charge over time. To prevent data loss, your computer must constantly refresh the memory, reading the charge from the capacitors and rewriting it thousands of times per second. This is why it's called "Dynamic" RAM. The simple capacitor is fundamental to how your computer thinks. This answers the question, capacitor what is it used for in a computer.

Key Applications of Capacitor Technology

Beyond smoothing power and storing data bits, capacitors have a knack for delivering powerful punches of energy and stabilizing entire electrical systems. These key applications of capacitor technology show just how versatile these components are. You can find them in everything from life-saving medical devices to the massive motors that run our industries. Let's look at four more powerful examples.

Camera Flash Energy Burst

Have you ever wondered how your camera produces such a brilliant flash from a small battery? The secret lies in a special photoflash capacitor. Your camera's battery alone cannot release energy fast enough. Instead, it follows a clever process:

1. An internal circuit boosts the low battery voltage up to around 300-500 volts.
2. This high-voltage charge is stored in a capacitor.
3. When you press the shutter button, the capacitor dumps all its stored energy in about a thousandth of a second.
4. This rapid discharge creates the intense burst of light you see.

This principle of rapid energy storage and release is not just for photos. It is critical in more powerful devices.

• Medical Defibrillators: These life-saving devices use large capacitors to store a huge electrical charge. They release it instantly through paddles to restore a patient's normal heart rhythm. High reliability is crucial for flawless performance.
• Electromagnetic Launchers: Hobbyists and researchers use banks of capacitors to power coilguns and railguns. The capacitors discharge a massive current to create a powerful magnetic field, launching a projectile at high speed.

The Motor Run Capacitor

Many motors in your home, like those in ceiling fans, air conditioners, and refrigerators, need a little help to get started. A single-phase AC motor cannot create a rotating magnetic field on its own. It would just hum and overheat. This is where a motor run capacitor comes in.

This capacitor connects to an auxiliary winding in the motor. It shifts the phase of the current in that winding by about 90 degrees. This phase difference creates a second magnetic field, which gives the motor the rotational push it needs to start and run smoothly. Without the right capacitors, these motors would not work.

Is Your Fan or AC Acting Up? A failing motor run capacitor often shows clear signs. You might notice the motor hums but won't start, the fan blades turn slowly, or the unit makes unusual noises. A visual inspection may reveal a bulging or leaking capacitor, telling you it's time for a replacement.

Computer Backup Power

What happens to your computer's clock when the power is off? Often, a special type of capacitor called a supercapacitor provides backup power. Supercapacitors are a fantastic example of energy storage in electronic devices. They act as a bridge between traditional capacitors and batteries.

For short-term backup power, like keeping a Real-Time Clock (RTC) or volatile memory (SRAM) alive, supercapacitors offer great advantages over small batteries.

These features make supercapacitors ideal for data storage applications where short, high-current bursts are needed to save data during a power interruption. They provide a reliable, long-lasting solution for energy storage.

Power Factor Correction

On an industrial scale, factories use countless large motors that create what is known as an inductive load. This type of load causes the electrical current to lag behind the voltage, leading to an inefficient system and higher energy bills. This is a common problem for any large-scale power supply in electrical systems.

To fix this, engineers use banks of large capacitors. Here is how they help:

• Capacitors provide a leading current that compensates for the lagging current from motors.
• This action balances the system and brings the current and voltage back in sync.
• This process, called power factor correction, makes the entire electrical system more efficient.

By installing power factor correction capacitors, a factory can see significant financial and operational benefits. These include lower electricity bills by avoiding utility penalties, reduced load on the electrical grid, and improved voltage stability for equipment. It is a perfect example of how capacitors make our power infrastructure more robust and efficient.

Signal Processing and Sensing

Capacitors do more than just store and smooth power. They are masters of shaping and controlling electrical signals. This ability allows them to filter sound, tune radios, and even sense your touch. These applications of capacitor technology are fundamental to how you interact with your devices every day. Let's explore four fascinating examples where capacitors act as the brains behind the operation.

Filtering Audio with Capacitors

Have you ever noticed the crisp, clear high notes coming from a good speaker? You can thank capacitors for that. In audio systems, capacitors act as smart filters, directing different sound frequencies to the right speaker components. A speaker system often has a large woofer for bass and a small tweeter for high notes. Capacitors are essential for this separation.

A capacitor naturally blocks low-frequency signals but allows high-frequency signals to pass through easily. This feature is perfect for protecting the delicate tweeter. The capacitor stops powerful, low-frequency bass signals from reaching and damaging the tweeter, ensuring only the high notes get through. This is a form of high-pass filtering.

Beyond directing frequencies, capacitors also ensure signal purity.

• Coupling Capacitors: These capacitors transmit the AC audio signal between different amplifier stages while blocking any unwanted DC voltage. This prevents DC from corrupting the audio waveform and keeps your music clean.
• Decoupling Capacitors: Placed on power supply lines, these capacitors filter out high-frequency noise. They provide a local source of energy to stabilize voltage, preventing noise from interfering with the audio signal.
• General Filtering: In any audio circuit, capacitors are used to suppress electromagnetic interference (EMI) and other noise, ensuring the signal remains as pure as possible.

Without these filtering capacitors, your audio could be distorted, noisy, and potentially damaging to your speakers.

Radio Circuit Tuning

When you turn the dial on an old radio to find your favorite station, you are actually adjusting a variable capacitor. Radios work by picking up signals broadcast at specific frequencies. To listen to one station, the radio's internal circuit must be "tuned" to resonate at that exact frequency while ignoring all others.

This tuning is achieved with a simple but brilliant circuit called an LC circuit, which contains an inductor (L) and a capacitor (C).

1. Radio signals from many different stations cause tiny electrical currents in the radio's antenna.
2. These signals flow to the LC tuning circuit.
3. You adjust the variable capacitor, changing its capacitance. This alters the resonant frequency of the circuit.
4. When the circuit's resonant frequency matches the frequency of your desired station, that signal is amplified.
5. All other frequencies are filtered out and sent to the ground.

The selected signal then moves on to be processed into the sound you hear. This elegant use of a capacitor and an inductor was a pivotal innovation. The invention of a reliable variable capacitor by Dezső Korda in 1893 was a key step that made modern radio tuning possible for everyone.

Enabling Touchscreen Sensors

Every time you tap, swipe, or pinch to zoom on your smartphone, you are interacting with a sophisticated grid of transparent capacitors. The screen on your phone uses projected capacitive technology. It is not sensing pressure; it is sensing a change in an electrical field.

The screen has a grid of tiny electrodes made from a transparent conductive material, like Indium Tin Oxide (ITO) or silver nanowires. This grid creates a consistent electrostatic field. Your body is also conductive and can store a charge.

When your finger approaches the screen, it disturbs the electrostatic field at that specific point. Your finger draws a tiny amount of charge from the grid, causing a measurable decrease in capacitance at that intersection of electrodes. The device's controller instantly detects this change, calculates the exact X and Y coordinates, and registers it as a touch.

This is why the screen can detect multiple touches at once (multitouch). Each touch creates its own unique change in capacitance on the grid, which the controller can track independently.

Creating Circuit Timers

Capacitors are excellent timekeepers in electronic circuits. When you pair a capacitor with a resistor, you create an RC circuit. The time it takes for the capacitor to charge through the resistor is predictable and controllable. This simple principle allows engineers to create timers for countless functions.

You see these RC timing circuits in action all the time.

• Intermittent Wipers: The control dial for your car's intermittent wipers adjusts a variable resistor. This changes the RC time constant, controlling the delay between each wipe of the blades.
• Blinking Lights: The flashing LED on a toy or electronic device is often controlled by an RC circuit that tells the light when to turn on and off.
• Pacemakers: In life-saving medical devices like pacemakers, RC circuits are used to precisely control the timing of electrical pulses sent to the heart, ensuring a steady rhythm.

By choosing the right resistor and capacitor, engineers can create delays ranging from microseconds to many minutes, making these simple timers one of the most versatile tools in electronics.

---

You now see how essential capacitors are. These unsung capacitors power everything from your phone to the electrical grid. So, capacitor what is it? It is a fundamental building block for technology. The simple principle of energy storage in a capacitor makes our world work. Future capacitors promise even more exciting advances.

The Next Wave of Capacitors 🌊 Advanced graphene capacitors are set to revolutionize our electrical world. Look for these powerful capacitors in:

• Instant Charging: New capacitors will power up your devices in seconds.
• Smarter EVs: These capacitors will improve regenerative braking.
• Grid Stability: Banks of capacitors will support renewable energy.

These tiny components show how a basic idea can have a huge impact.

FAQ

What is the main job of capacitors?

You want to know about capacitors. The main job of capacitors is storing and releasing energy very quickly. Capacitors do many things.

• Capacitors smooth power.
• Capacitors filter signals.
• Capacitors start motors.
• Capacitors store data.

All these jobs are for capacitors. These capacitors are important capacitors. We love capacitors. Capacitors, capacitors, capacitors.

Are capacitors dangerous? ⚡

Yes, some capacitors can be dangerous. Large capacitors, like power capacitors or camera flash capacitors, hold a lot of charge. These capacitors can give you a serious shock.

Always discharge capacitors before handling them. Safety first! Small capacitors are usually safe capacitors. But all capacitors deserve respect. Capacitors, capacitors, capacitors.

Why do capacitors fail?

Capacitors fail for a few reasons. Age is a big factor for many capacitors. Heat also damages capacitors over time. Applying too much voltage will destroy capacitors instantly. These failed capacitors often bulge or leak. You must replace these broken capacitors. Capacitors are not forever. Capacitors, capacitors, capacitors.

How are capacitors different from batteries?

Capacitors and batteries both store energy, but capacitors are different. Capacitors charge and discharge almost instantly. Batteries are much slower. The lifespan of capacitors is much longer than batteries. Most capacitors handle millions of cycles. Batteries cannot. Capacitors are power sprinters. Capacitors, capacitors, capacitors. These are great capacitors.
